Name: N Male Straight RF Connector for RG142/U Coaxial Cable
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: N-J5
Availability: InStock

Home > Products > N Connector >

N Male Straight RF Connector for RG142/U Coaxial Cable

Straight RF Connectors

Male RF Connectors

N Series RF Connectors

Place of Origin:

China

Brand Name:

SIPU

Certification:

ISO9001, R0HS, CE

Model Number:

N-J5

Request A Quote

Product Details

Characteristic Impedance:

50Ω

Durability:

500 Times

Product Name:

N Male Straight RF Connector For RG142/U Coaxial Cable

Gender:

Straight

Type:

Male

Material:

Brass

Plating:

Nickel

Highlight:

Straight RF Connectors

Male RF Connectors

N Series RF Connectors

Payment & Shipping Terms

Minimum Order Quantity

Price

Discuss

Packaging Details

master carton

Delivery Time

5-8works

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

N Male Straight RF Connector for RG142/U Coaxial Cable

Get Best Price

N-J301 Male N-Type RF Coaxial Connector – Compatible with SFCJ-50-3-51 Cable

Get Best Price

N-Type Male RF Connector for RG142B/U Coaxial Cable – Threaded

Get Best Price

N Type Right Angle RF Coaxial Connector for RG142B/U Cable

Get Best Price

Contact Now

Product Description

N Male Straight RF Connector for RG142/U Coaxial Cable

Product Overview

The N Male Straight RF Connector is a medium-power connector designed with a threaded coupling mechanism, compliant with MIL-C-39012 and IEC60169-16 standards. Known for its outstanding electrical performance and broad frequency bandwidth, it offers a secure and reliable connection and is fully compatible with internationally recognized counterparts.

Applications
Widely used in communications systems, radar equipment, broadcasting, and various wireless electronic devices.

Product Features

Straight male N-type interface

Compatible with RG142/U coaxial cable and similar specifications

Reliable mechanical structure with threaded coupling

Excellent electrical performance up to 11 GHz

High durability and environmental resistance

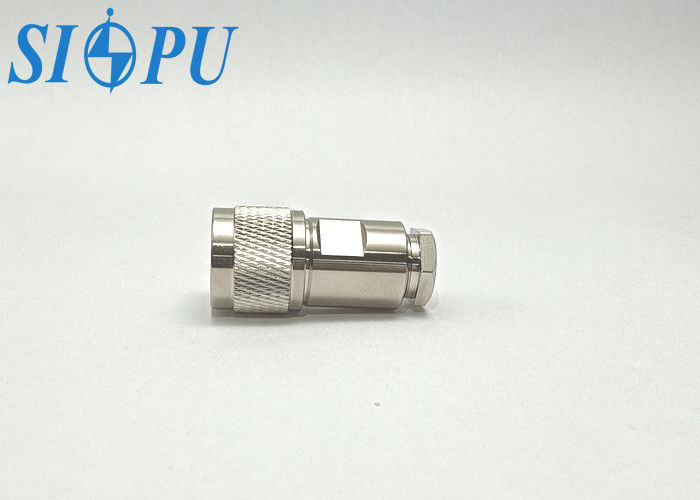

Product Appearance

N Male Straight RF Connector for RG142/U Coaxial Cable 0

Important Technical Parametersr

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-11GHz
Dielectric withstanding voltage		1500V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤1.5mΩ	Mechanical property
Contact resistance	Outer conductor	≤0.2mΩ	Durability	500 times

Materials and Surface Treatmen

Center conductor

Brass,gold plating

Insulating medium

PTFE

Outer conductor

Brass,nickel plating

Sealing ring

Silicon rubber

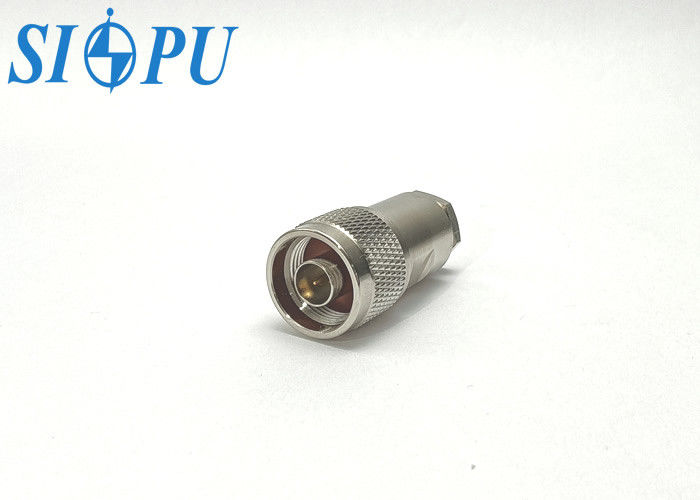

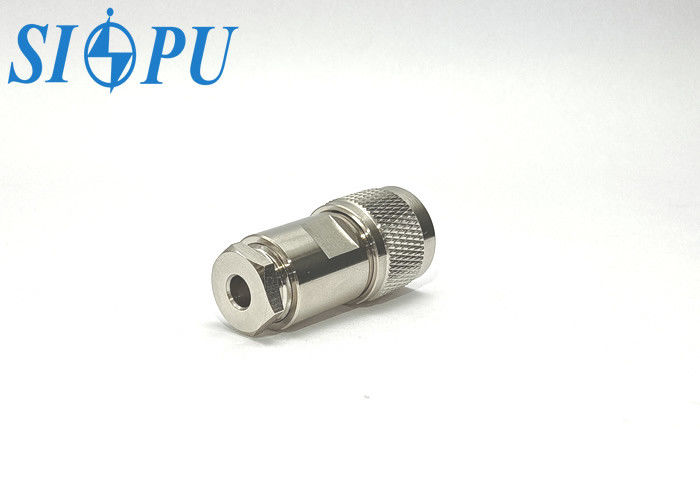

Product Image Gallery

N Male Straight RF Connector for RG142/U Coaxial Cable 1
