SMP Male RF Coaxial Connector – Limited Detent, Flange Mount, Compatible with Coated CXN3506 Cable

Product Overview

The SMP series is an ultra-miniature, push-on/self-locking RF coaxial connector system known for its compact size, lightweight construction, broad frequency range, and strong vibration resistance. The limited detent interface allows for secure yet easily detachable blind mating, making it especially well-suited for high-density modular connections between PCBs, chassis, and enclosures.

Applications
Commonly used in antennas, communication base stations, radar systems, aerospace electronics, and other compact, high-performance RF assemblies.

Key Features

SMP male interface with limited detent (moderate retention force)

Two-hole flange mount for secure and stable installation

Compatible with coated CXN3506 RF coaxial cable

Small size and lightweight, ideal for dense system integration

Wide frequency bandwidth with excellent electrical performance

Strong resistance to shock, vibration, and environmental stress

Product Appearance

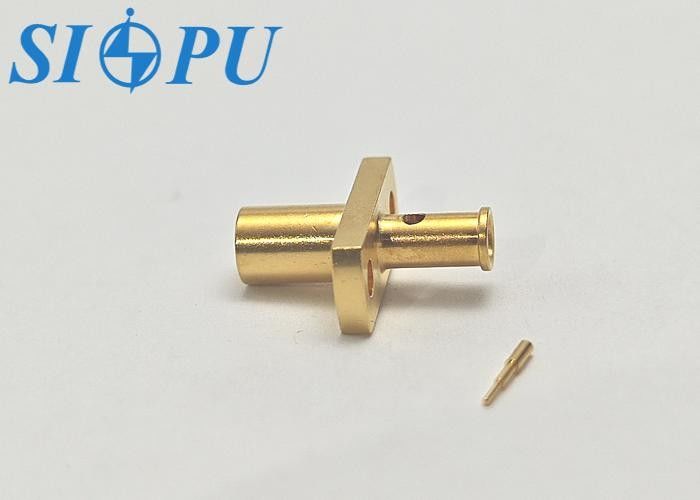

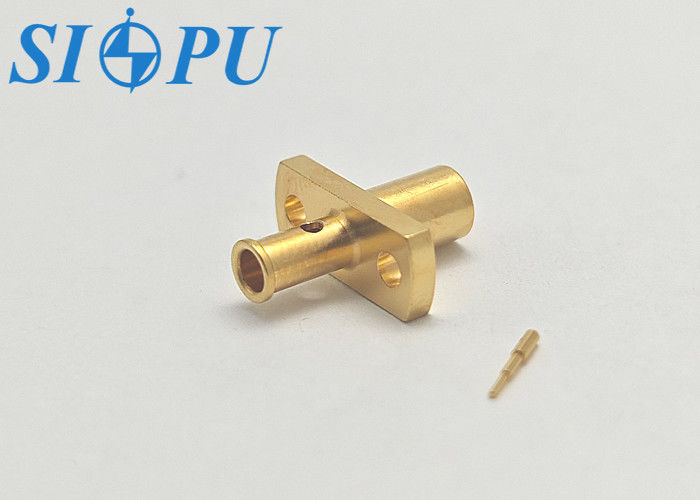

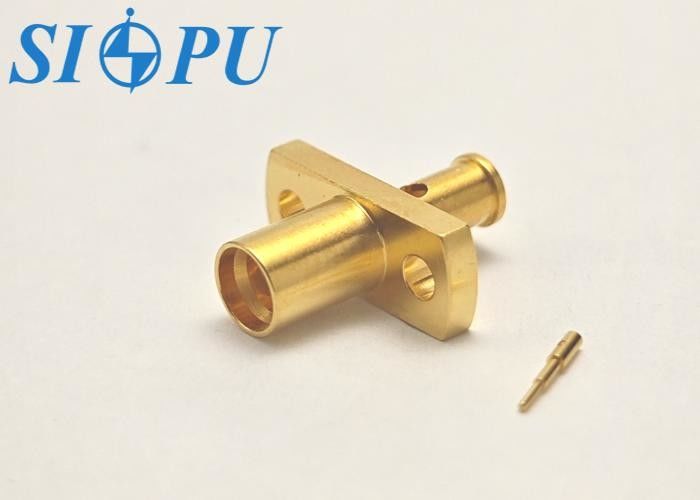

SMP Male RF Coaxial Connector – Limited Detent, Flange Mount, Compatible with Coated CXN3506 Cable 0

Important Technical Parameter

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-40GHz
Dielectric withstanding voltage		500V	VSWR	≤1.1+0.02F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.07√F(GHz)dB
Contact resistance	Center conductor	≤6.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times
Limited detent	(max) Engagement force	45N	(min) Separation force	9N

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating
