Name: SMP Male RF Coaxial Connector – Straight, Thread Mount for Microstrip Applications
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: SMP-JYD14G
Availability: InStock

Home > Products > RF Coaxial Connector >

SMP Male RF Coaxial Connector – Straight, Thread Mount for Microstrip Applications

Microstrip RF Coaxial Connectors

Straight RF Coaxial Connectors

SMP Male RF Coaxial Connectors

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001-2017, RoHS, CE

Model Number:

SMP-JYD14G

Request A Quote

SMP Male RF Coaxial Connector – Straight, Thread Mount for Microstrip Applications

Product Details

Product Name:

SMP Male RF Coaxial Connector – Straight, Thread Mount For Microstrip Applications

Characteristic Impedance:

50Ω

Frequency Range:

DC-40GHz

Durability:

500 Times

Gender:

Male

Type:

Straight

Material:

Stainless Steel

Plating:

Passivation

Highlight:

Microstrip RF Coaxial Connectors

Straight RF Coaxial Connectors

SMP Male RF Coaxial Connectors

Payment & Shipping Terms

Minimum Order Quantity

Price

Discuss

Packaging Details

master carton

Delivery Time

3-6 Weeks

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000pcs/year

Server openresty Radio Frequency Coaxial Connector Meeting Customer Requirements with Ease

Get Best Price

SMP Right-Angle Female RF Coaxial Connector – Compatible with RG316/U Cable

Get Best Price

Stainless Steel SMP Male RF Connector – Thread Mount, Microstrip Type

Get Best Price

SMP Male RF Coaxial Connector – PCB Mount, Solder Type

Get Best Price

86-029-8886-0801

Contact Now

Product Description

SMP Male RF Coaxial Connector – Straight, Thread Mount for Microstrip Applications

Product Overview

SMP series connectors are compact RF coaxial connectors designed for high-frequency performance and modular, high-density applications. They offer fast and secure connections, excellent vibration resistance, and support limited axial and radial misalignment—ideal for space-constrained designs.

Applications

Quantum computing, antennas, radar systems, aerospace, and other high-frequency modules.

Product features:

Limited escapement interface

Threaded mounting

Compact and lightweight

High durability in demanding environments

Excellent electrical performance

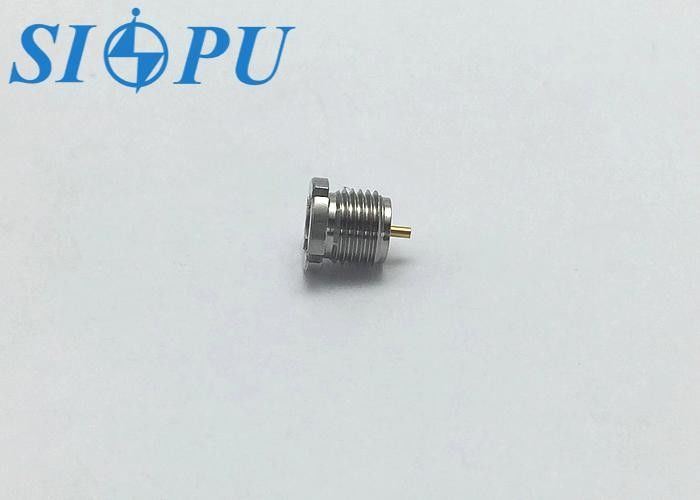

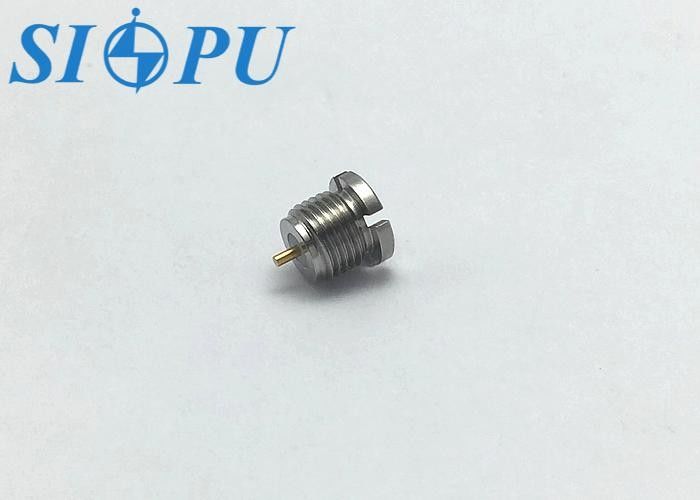

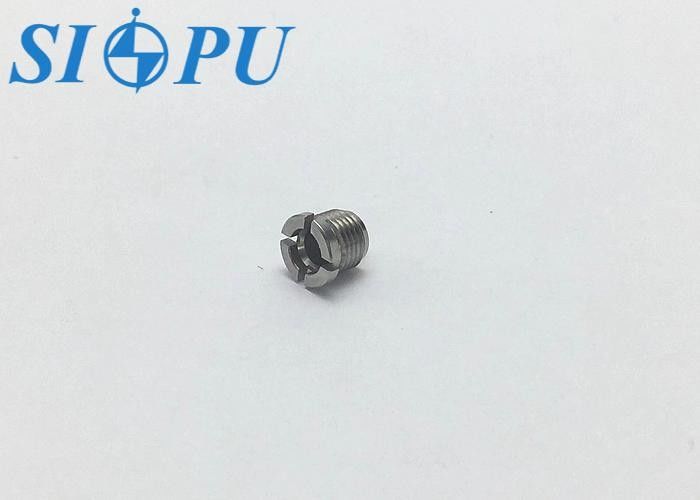

Product Appearance

Important Technical Parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-40GHz
Dielectric withstanding voltage		500V	VSWR	≤1.1+0.01F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.07√F(GHz)dB
Contact resistance	Center conductor	≤6.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times
Limited detent	(max) Engagement force	45N	(min) Separation force	9N

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Stainless steel, passivating
