Name: SMP Female to Female RF Coaxial Adapter – 8.2 mm Length
Brand: Xi'an Aerospace Sipu Electronic Technology Co., Ltd
SKU: SMP-KK7
Availability: InStock

Home > products > RF Coaxial Connector >

SMP Female to Female RF Coaxial Adapter – 8.2 mm Length

8.2 Long RF Coaxial Adapter

SMP Female RF Coaxial Adapter

SMP Coaxial RF Adapter

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001-2017, RoHS, CE

Model Number:

SMP-KK7

Request A Quote

SMP Female to Female RF Coaxial Adapter – 8.2 mm Length

Product Details

Product Name:

SMP Female To Female RF Coaxial Adapter – 8.2 Mm Length

Characteristic Impedance:

50Ω

Dielectric Withstanding Voltage:

500V

Insulation Resistance:

≥5000MΩ

Durability:

500 Times

Gender:

Female

Type:

Straight

Material:

Beryllium Bronze

Plating:

Gold

Highlight:

8.2 Long RF Coaxial Adapter

SMP Female RF Coaxial Adapter

SMP Coaxial RF Adapter

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Discuss

Packaging Details

Carton

Delivery Time

3-6 Weeks

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000pcs/year

SSMP Female Right-Angle RF Connector for CXN3506 Cable

Get Best Price

SMP Female to Female RF Coaxial Adapter – 8.2 mm Length

Get Best Price

SMP Female to SMP Female RF Coaxial Adapter – 12.9mm Length

Get Best Price

SMP Male RF Coaxial Connector – Limited Detent, PCB Mount, Solder Type

Get Best Price

86-029-8886-0801

Contact Now

Product Description

SMP Female to Female RF Coaxial Adapter – 8.2 mm Length

Product Overview

SMP series connectors are miniature, high-frequency RF coaxial interfaces designed for blind-mate applications. They offer excellent electrical performance, fast and secure push-on coupling, and strong vibration resistance. The interface accommodates limited axial and radial misalignment, making it especially suitable for high-density, board-to-board or module-to-chassis interconnects.

Applications:
Commonly used in communication base stations, radar systems, aerospace equipment, and antennas.

Product Features:

SMP female connectors on both ends

Ultra-compact size

High vibration resistance

Supports limited axial and radial float

Excellent electrical performance

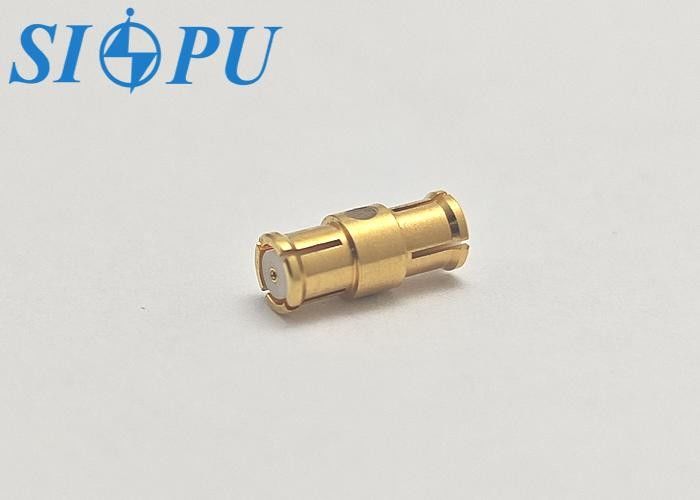

Product Appearance

Important Technical Parameter

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-40GHz
Dielectric withstanding voltage		500V	VSWR	≤1.5
Insulation resistance		≥5000MΩ	Insertion loss	≤0.07√F(GHz)dB
Contact resistance	Center conductor	≤6.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Beryllium bronze,gold plating

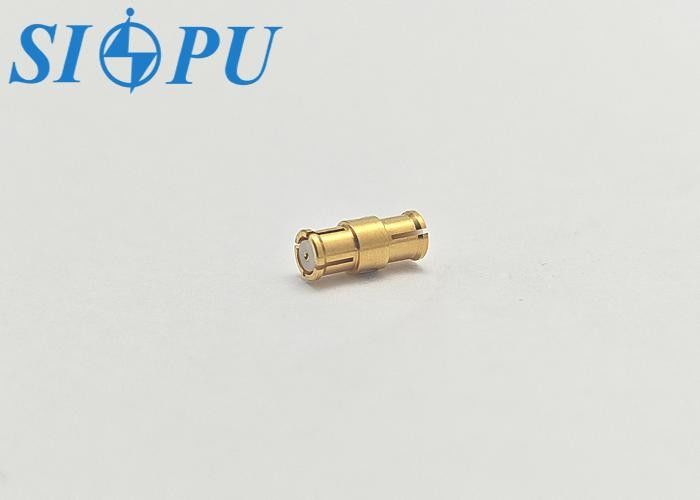

Product Image Gallery
