Name: SMP Female to Female RF Coaxial Adapter
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: SMP-KK7
Availability: InStock

Home > products > RF Coaxial Connector >

SMP Female to Female RF Coaxial Adapter

8.2 Long RF Coaxial Adapter

SMP Female RF Coaxial Adapter

SMP Coaxial RF Adapter

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001-2017, RoHS, CE

Model Number:

SMP-KK7

Request A Quote

Product Details

Product Name:

SMP Female To Female RF Coaxial Adapter – 8.2 Mm Length

Characteristic Impedance:

50Ω

Dielectric Withstanding Voltage:

500V

Insulation Resistance:

≥5000MΩ

Durability:

500 Times

Gender:

Female

Type:

Straight

Material:

Beryllium Bronze

Plating:

Gold

Highlight:

8.2 Long RF Coaxial Adapter

SMP Female RF Coaxial Adapter

SMP Coaxial RF Adapter

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Discuss

Packaging Details

Carton

Delivery Time

3-6 Weeks

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000pcs/year

Male RF Coaxial Connector Designed for Excellent Electrical Performance and ≥5000MΩ Insulation Resistance

Get Best Price

Smooth Connection Guaranteed 50Ω PCB Coaxial Connector Designed for SMP-K Female Connectors

Get Best Price

Passivation And Gold Plating RF Coaxial Connector with 50Ω Characteristic Impedance for Optimal Signal Transmission

Get Best Price

Designed For PCB Soldering Coaxial PCB Connector with ≤0.07dB Insertion Loss and Performance

Get Best Price

86-029-8886-0801

Contact Now

Product Description

SMP Female to Female RF Coaxial Adapter – 8.2 mm Length

Product Overview

SMP series connectors are miniature, high-frequency RF coaxial interfaces designed for blind-mate applications. They offer excellent electrical performance, fast and secure push-on coupling, and strong vibration resistance. The interface accommodates limited axial and radial misalignment, making it especially suitable for high-density, board-to-board or module-to-chassis interconnects.

Applications:
Commonly used in communication base stations, radar systems, aerospace equipment, and antennas.

Product Features:

SMP female connectors on both ends

Ultra-compact size

High vibration resistance

Supports limited axial and radial float

Excellent electrical performance

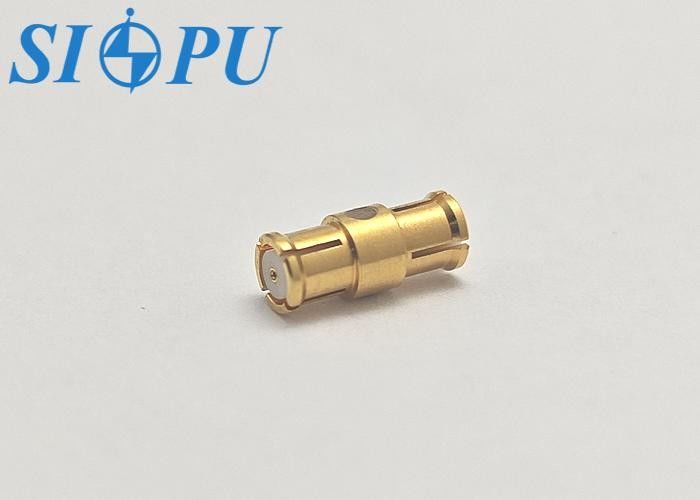

Product Appearance

Important Technical Parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-40GHz
Dielectric withstanding voltage		500V	VSWR	≤1.5
Insulation resistance		≥5000MΩ	Insertion loss	≤0.07√F(GHz)dB
Contact resistance	Center conductor	≤6.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Beryllium bronze, gold plating

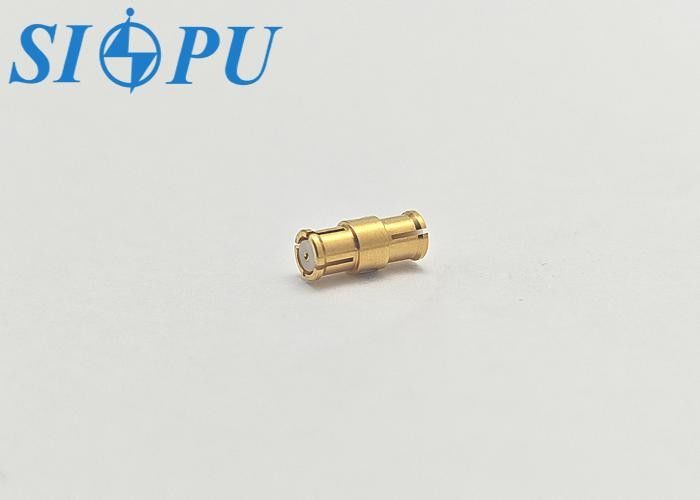

Product Image Gallery
