Name: N Type Male Coaxial RF Termination Load – 1W Power Rating
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: N-50JR-1W
Availability: InStock

Home > products > RF Termination Load >

N Type Male Coaxial RF Termination Load – 1W Power Rating

N Type RF Load Termination

Coaxial RF Load Termination

RF Load Termination 1W

Place of Origin:

China

Brand Name:

SIPU

Certification:

ISO9001, R0HS, CE

Model Number:

N-50JR-1W

Request A Quote

Product Details

Product Name:

N Type Male Coaxial RF Termination Load – 1W Power Rating

Dielectric Withstanding Voltage:

Characteristic Impedance:

50Ω

Gender:

Male

Type:

Stright

Material:

Brass

Plating:

Nickel

Highlight:

N Type RF Load Termination

Coaxial RF Load Termination

RF Load Termination 1W

Payment & Shipping Terms

Minimum Order Quantity

Price

Discuss

Packaging Details

Carton

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

150000opcs/year

N Type Male Coaxial RF Termination Load – 1W Power Rating

Get Best Price

SSMA Male Coaxial RF Termination Load – 1W Power Rating

Get Best Price

BNC Male Coaxial RF Termination Load – 1W Power Rating

Get Best Price

SMA Male RF Coaxial Termination Load – Straight Type, 1W Power

Get Best Price

86-029-8886-0801

Contact Now

Product Description

N Type Male Coaxial RF Termination Load – 1W Power Rating

Product Overview

This coaxial termination load is a passive single-port device designed to absorb RF energy and minimize signal reflections. It ensures impedance matching with the transmission line, making it ideal as an energy-absorbing component in high-frequency systems. Widely used for precision testing and measurement of microwave devices, RF systems, and indoor distributed terminals.

Applications

RF signal transmission system testing

Microwave and radio equipment

Electronic measurement instruments

Indoor distribution systems and test setups

Key Features

N-Type male connector interface

1W power handling capability

Excellent electrical performance and signal integrity

High mechanical stability and durability

Wide frequency range support

High reliability for lab and field applications

Product Specifications

N Type Male Coaxial RF Termination Load – 1W Power Rating 0

Important Technical Parameters

Electrical property		Temperature range	-65～+125℃
Characteristic impedance	50Ω	Frequency range	DC-12.5GHz
Power	1W	VSWR	Ordinary level:≤1.2 Precision gradee:≤1.05
Mechanical property		Durability	500times

Materials and Surface Treatment

Center conductor

Brass,gold plating

Insulating medium

PTFE

Outer conductor

Brass,nickel plating

Sealing ring

Silicon rubber

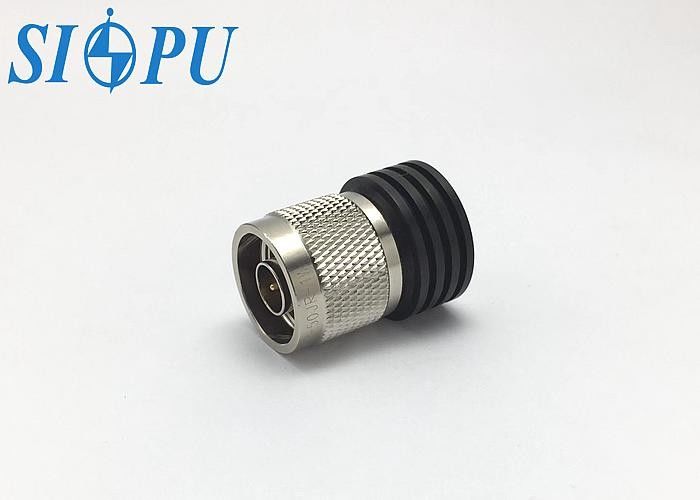

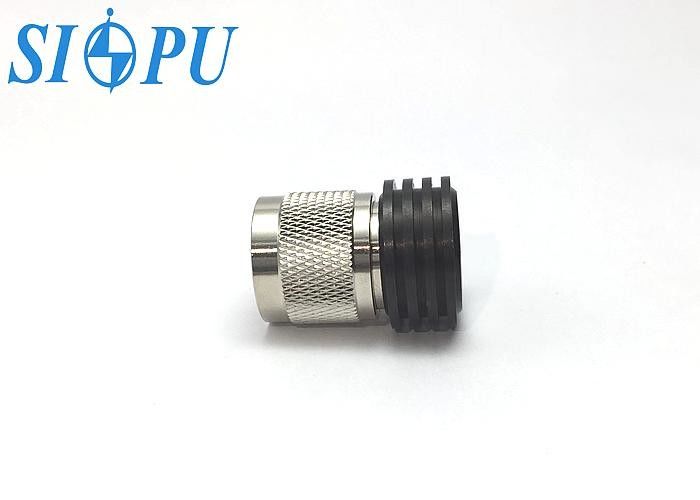

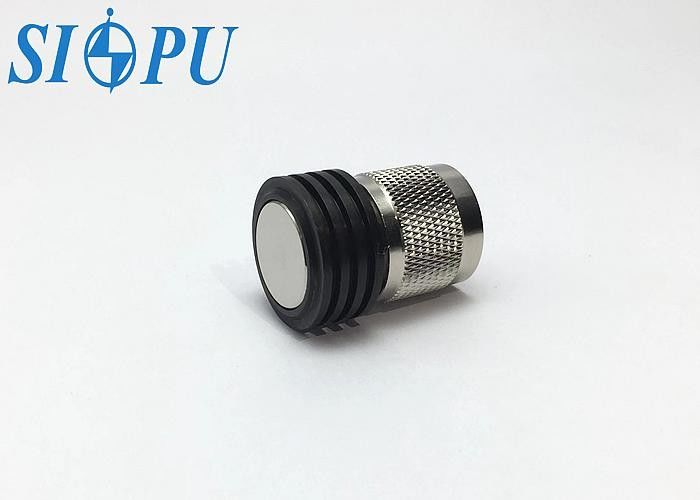

Product Image Gallery
