Name: SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: SMB-JY2
Availability: InStock

Home > products > SMB SSMB Connector >

SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable

SMB RF Coaxial Connectors

Threaded RF Coaxial Connectors

RG 178/U Cable Coaxial Connectors

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001, RoHS, CE

Model Number:

SMB-JY2

Request A Quote

SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable

Product Details

Product Name:

SMB Male RF Coaxial Connector – Threaded Mount, Compatible With RG178/U Cable

Gender:

Female

Type:

Straight

Material:

Brass

Plating:

Gold

Insulating Medium:

PTEE

Durability:

500 Times

Highlight:

SMB RF Coaxial Connectors

Threaded RF Coaxial Connectors

RG 178/U Cable Coaxial Connectors

Payment & Shipping Terms

Minimum Order Quantity

Price

Discuss

Packaging Details

Carton

Delivery Time

5-8works days

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000pcs/year

SSMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Get Best Price

SMB Male RF Coaxial Connector – Microstrip, Flange Mounted

Get Best Price

SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable

Get Best Price

SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Get Best Price

86-029-8886-0801

Contact Now

Product Description

SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable

Product Overview

The SMB series is a small push-in RF coaxial connector known for its compact size, light weight, ease of use, and excellent electrical performance. It is designed in compliance with MIL-C-39012 and IEC 60169-10 standards, ensuring compatibility and reliability in demanding RF applications.

Applications

Communication base stations

Wireless communication equipment

High-frequency loop connections in electronic instruments

Product Features

SMB male interface with snap-on locking mechanism

Threaded mounting structure for secure installation

Compatible with RG178/U coaxial cable

Small size and lightweight design

Easy installation and excellent high-frequency performance

Product Specifications

SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable 0

Important Technical Parameters

Electrical property			Temperature range	-65～+165℃
Characteristic impedance		50Ω	Frequency range	DC-3GHz
Dielectric withstanding voltage		500V	VSWR	≤1.5
Insulation resistance		≥1000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.5mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Brass, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

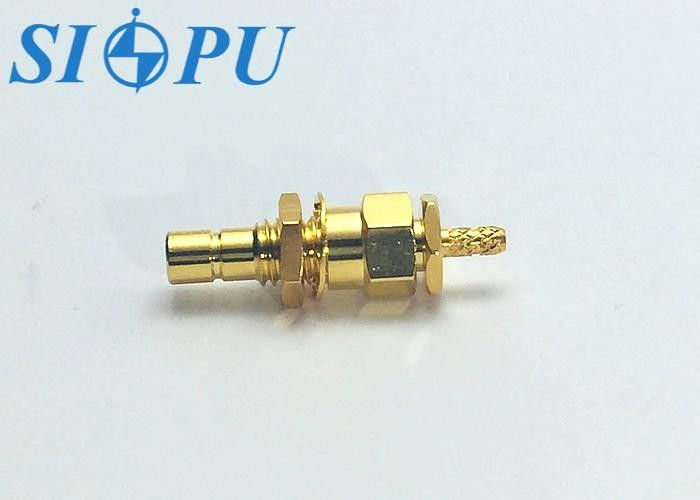

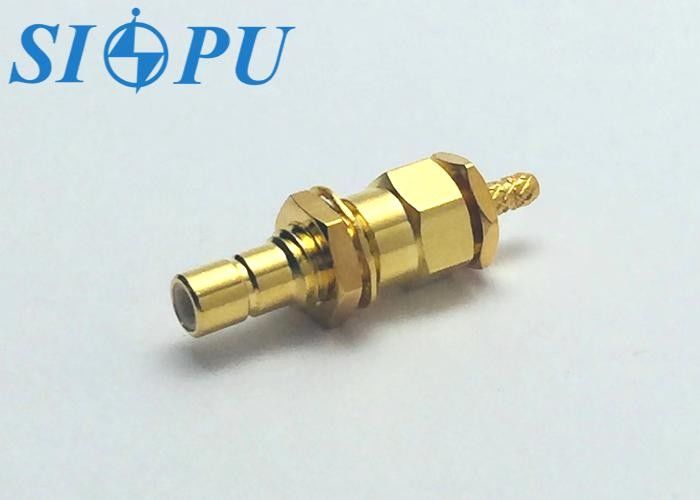

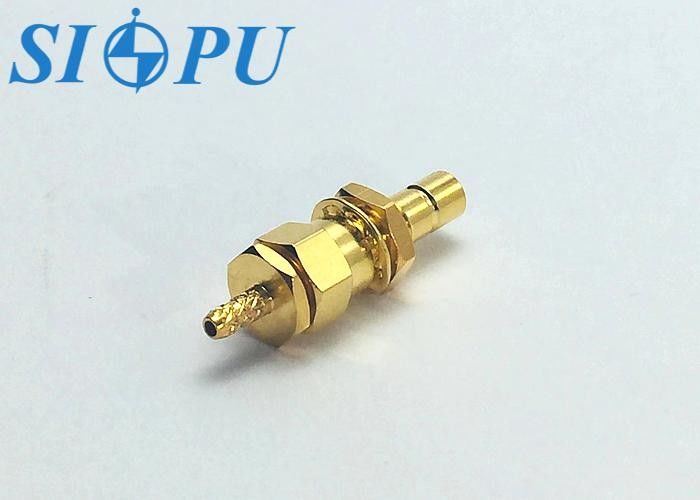

Product Image Gallery
