SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Product Details

Product Name:

SMB Female RF Coaxial Connector – Right-Angle, Compatible With RG316/U Cable

Gender:

Female

Type:

Right-angle

Material:

Brass

Plating:

Gold

Insulating Medium:

PTFE

Durability:

500 Times

Highlight:

Coaxial SMB Female Connector

RF SMB Female Connector

Angled RF SMB Connector

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Discuss

Packaging Details

Carton

Delivery Time

5-8work days

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000pcs/year

SSMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Get Best Price

SMB Male RF Coaxial Connector – Microstrip, Flange Mounted

Get Best Price

SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable

Get Best Price

SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Get Best Price

86-029-8886-0801

Contact Now

Product Description

SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Product Overview

The SMB connector is a compact push-in locking RF connector designed primarily for connecting coaxial cables in high-frequency circuits. It is widely used in radio equipment and electronic instruments due to its small size, light weight, and reliable performance.

Applications

Electronic instruments

Radio communication equipment

RF systems and modules

Product Features

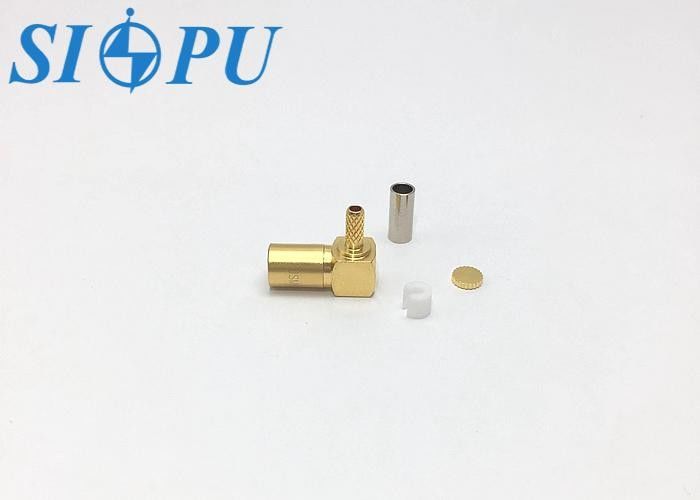

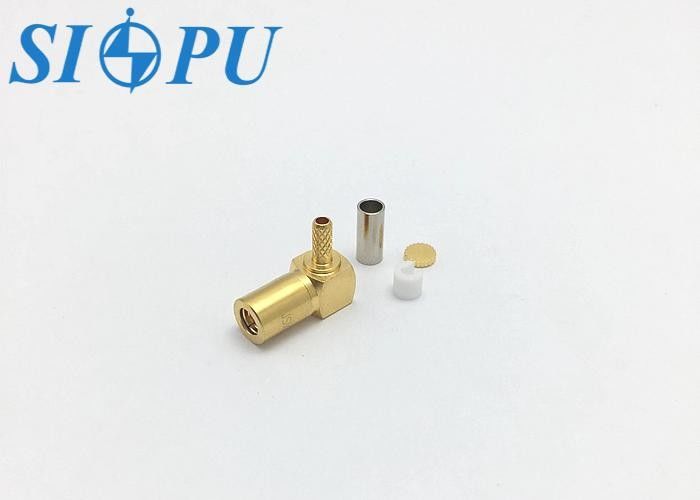

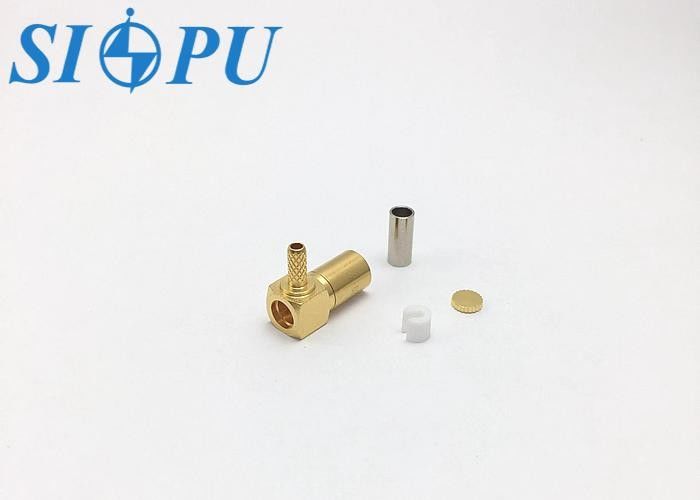

Right-angle (bent) SMB female interface

Compatible with RG316/U coaxial cable

Compact and lightweight design

Excellent electrical performance

Easy and secure snap-on connection

Product Specifications

SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable 0

Important Technical Parameters

Electrical property			Temperature range	-65～+165℃
Characteristic impedance		50Ω	Frequency range	DC-4GHz
Dielectric withstanding voltage		750V	VSWR	≤1.5
Insulation resistance		≥1000MΩ	Insertion loss	≤0.1√F(GHz)dB
Contact resistance	Center conductor	≤6.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤1.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating
