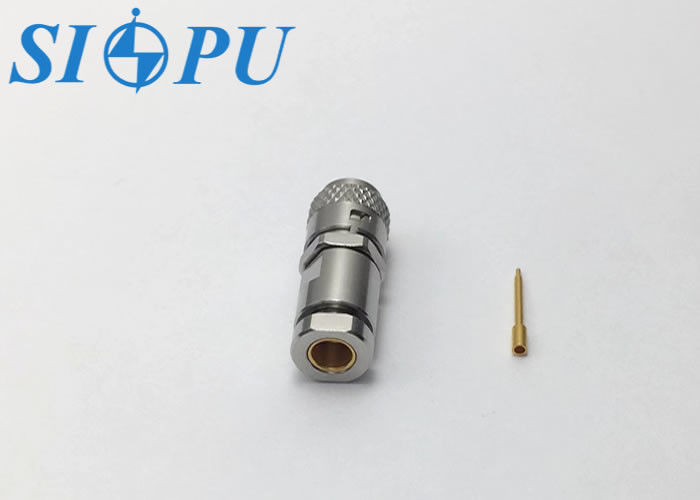

Name: SSMA Plug Self-Locking RF Coaxial Connector
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: SSMA-J360G-ZS
Availability: InStock

Home > products > Self Locking Connector >

SSMA Plug Self-Locking RF Coaxial Connector

Axially Meshing RF Coaxial Connectors

Self Ligating RF Coaxial Connectors

SSMA Self Locking Connector

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001-2017, RoHS, CE

Model Number:

SSMA-J360G-ZS

Request A Quote

SSMA Plug Self-Locking RF Coaxial Connector

Product Details

Product Name:

SSMA Plug Self-Locking RF Coaxial Connector

Gender:

Male

Type:

Straight

Material:

Stainless Steel

Durability:

500 Times

Insulating Medium:

PTFE

Plating:

Passivation

Highlight:

Axially Meshing RF Coaxial Connectors

Self Ligating RF Coaxial Connectors

SSMA Self Locking Connector

Payment & Shipping Terms

Minimum Order Quantity

Price

DIscuss

Packaging Details

Carton

Delivery Time

6-8Weeks

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000pcs/year

SMA Self-Locking Connector – Axial Engagement, CXN3506 Cable Compatible

Get Best Price

TNC Male RF Coaxial Connector – Straight Self-Locking Plug, Compatible with TRF-58 Cable

Get Best Price

TNC Male RF Coaxial Connector – Self-Locking Plug (Radially Meshing), Slate Finish, Compatible with RG142B/U Cable (Model: TNC-J5-ZS)

Get Best Price

Video

SMA-K Self-Locking RF Coaxial Socket Connector – Axial Engagement, Compatible with CXN3506 Cable

Get Best Price

86-029-8886-0801

Contact Now

Product Description

SSMA Plug Self-Locking RF Coaxial Connector

Product Overview

The SSMA series is a miniaturized version of the SMA connector, designed for high-frequency applications where space is limited. It offers compact size, broad frequency bandwidth, and superior mechanical and electrical performance, making it ideal for use in microwave equipment and digital communication systems.

Applications:

Aerospace, wireless communications, telecommunications, and other RF circuit applications requiring compact, high-reliability solutions.

Key Features:

Designed for use with UFB142A RF coaxial cable

Axially meshing self-locking design prevents sleeve rotation when mated with an SSMA socket

Compact structure with high-frequency capability

Easy to solder and assemble

Excellent electrical performance and vibration resistance

Suitable for harsh environments with high salt spray resistance

Product Specifications

SSMA Plug Self-Locking RF Coaxial Connector 0

Important Technical Parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-30GHz
Dielectric withstanding voltage		750V	VSWR	≤1.05+0.012F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06 √F(GHz)dB
Contact resistance	Center conductor	≤4.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.5mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

stainless steel, passivating

Sealing ring

Silicon rubber

Product Image Gallery

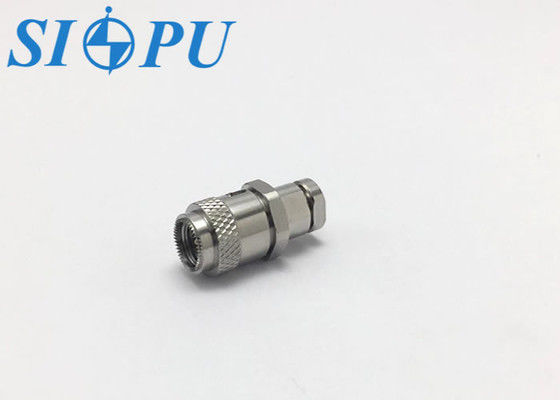

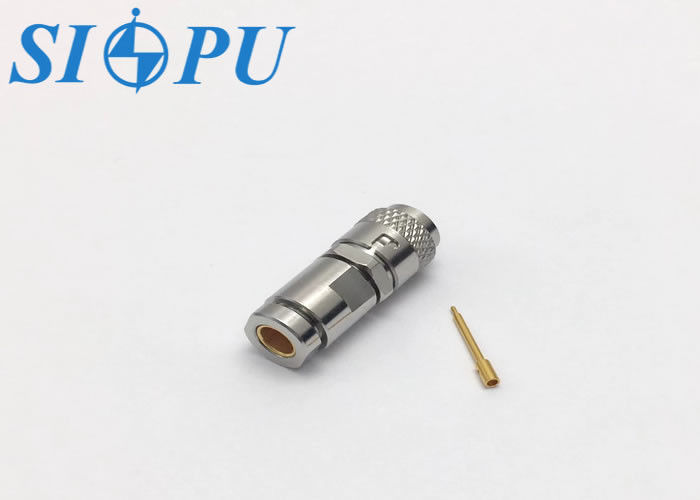

SSMA Plug Self-Locking RF Coaxial Connector 2
