Name: MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: MCX-KYD2-2
Availability: InStock

Home > products > MCX MMCX Connector >

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Coaxial MCX RF Connector

Threaded MCX RF Connector

Female MCX RF Connector

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001-2017, RoHS, CE

Model Number:

MCX-KYD2-2

Request A Quote

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Product Details

Product Name:

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Gender:

Female

Type:

Straight

Material:

Brass

Plating:

Gold

Durability:

500 Times

Highlight:

Coaxial MCX RF Connector

Threaded MCX RF Connector

Female MCX RF Connector

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Discuss

Packaging Details

Carton

Delivery Time

5-8Weeks

Payment Terms

L/C, T/T, Western Union

MCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable

Get Best Price

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Get Best Price

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Get Best Price

MCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U Cable

Get Best Price

86-029-8886-0801

Contact Now

Product Description

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Product Overview

The MCX series RF coaxial connectors feature a compact plug-in interface design, offering small size, light weight, excellent electrical performance, and high reliability. These characteristics make them ideal for applications with strict space and weight constraints.

Applications

Antennas

Base station systems

Instrumentation

GPS modules

Transmission systems

Product Features

Threaded installation, typically mounted within a cavity

Compact and lightweight for space-limited designs

Easy and secure installation

Superior electrical performance and connection reliability

Product Specifications

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount 0

Important Technical Parameters

Electrical property			Temperature range	-55～+125℃
Characteristic impedance		50Ω	Frequency range	DC-6GHz
Dielectric withstanding voltage		750V	VSWR	≤1.35
Insulation resistance		≥1000MΩ	Insertion loss	≤0.1√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.5mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

Product Image Gallery

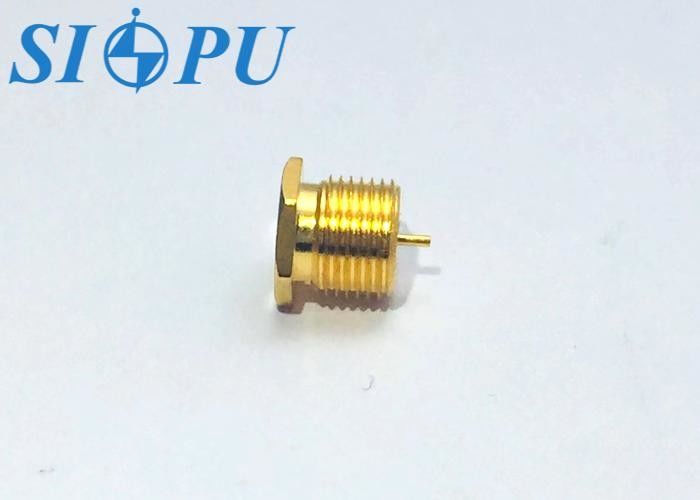

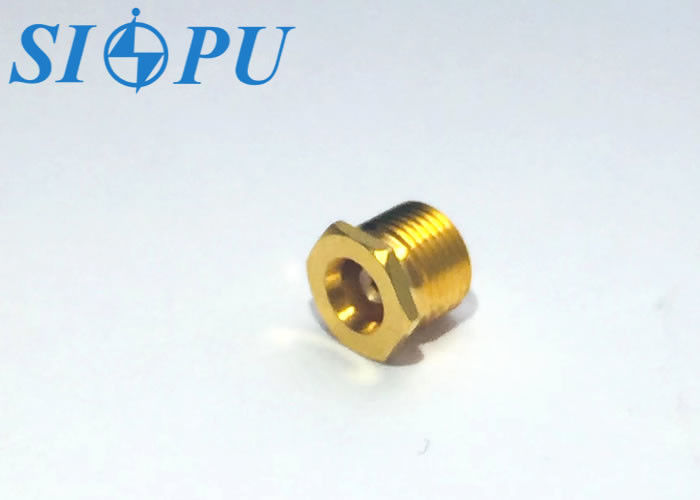

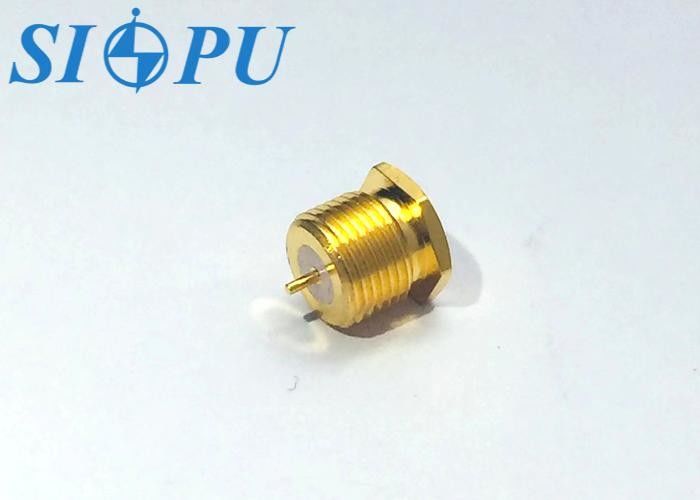

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount 1
