Name: SMA Female RF Coaxial Connector – Microstrip Type, Flange Mounted
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: SMA-KFD917-4
Availability: InStock

Home > products > SMA RF Connector >

SMA Female RF Coaxial Connector – Microstrip Type, Flange Mounted

RF Sma Coax Connector

Female Sma Coax Connector

Flange Mount Sma Coax Connector

Place of Origin:

China

Brand Name:

SIPU

Certification:

ISO9001-2017, RoHS, CE

Model Number:

SMA-KFD917-4

Request A Quote

SMA Female RF Coaxial Connector – Microstrip Type, Flange Mounted

Product Details

Product Name:

SMA Female RF Coaxial Connector – Microstrip Type, Flange Mounted

Gender:

Female

Type:

Straight

Material Science:

Brass

Plating:

Ternary Alloy

Durability:

500 Times

Highlight:

RF Sma Coax Connector

Female Sma Coax Connector

Flange Mount Sma Coax Connector

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Discuss

Packaging Details

Carton

Delivery Time

6-8Weeks

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000pcs/yesr

SMA Male RF Coaxial Connector – Right Angle 90°, Compatible with RG316/U Cable

Get Best Price

SMA RF Coaxial Connector – Four-Hole Flange Mount Receptacle

Get Best Price

SMA Female RF Coaxial Connector – Microstrip Type, Flange Mounted

Get Best Price

Video

SMA Male RF Coaxial Connector – Right Angle, Compatible with CXN3506 Cable

Get Best Price

86-029-8886-0801

Contact Now

Product Description

SMA Female RF Coaxial Connector – Microstrip Type, Flange Mounted

Product Overview

SMA RF coaxial connectors are among the most widely used connectors in high-frequency applications, valued for their compact size, broad frequency bandwidth, excellent mechanical and electrical performance, and high reliability. They are commonly used for connecting coaxial cables or microstrip lines in RF circuits of microwave equipment and digital communication systems.

Applications
Wireless communication, instrumentation, networking, telecommunications, and RF systems.

Key Features

Two-hole flange mount for secure and stable installation

Microstrip interface pad size: φ0.5 × 0.5 mm

Wide frequency bandwidth with low VSWR

Superior electrical performance and signal integrity

Compact size and robust environmental resistance

Compliant with MIL-C-39012 and IEC60169-15 standards

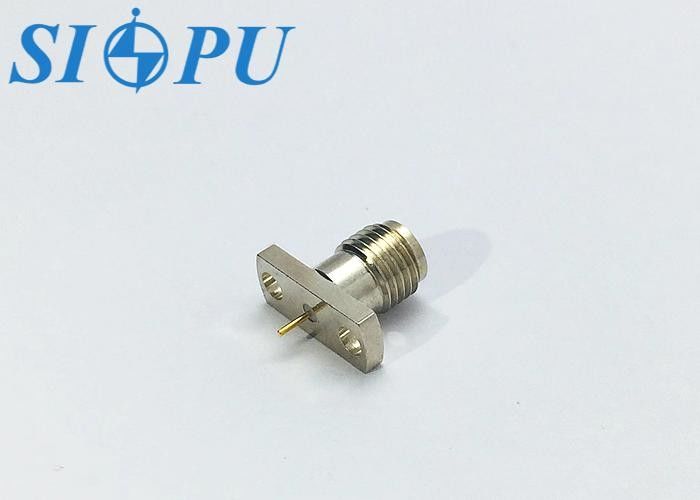

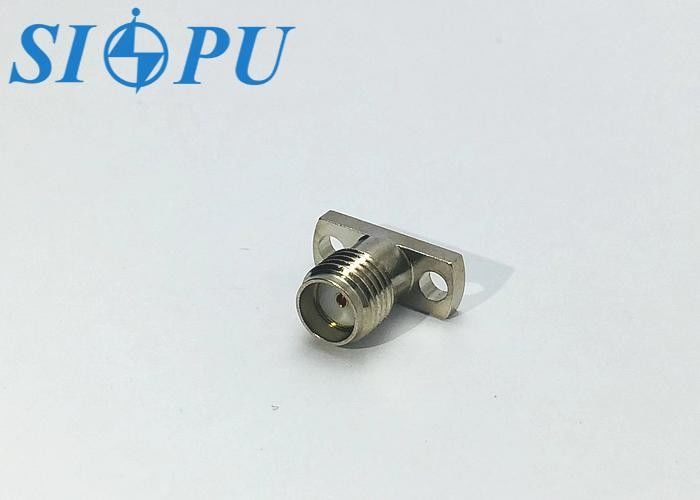

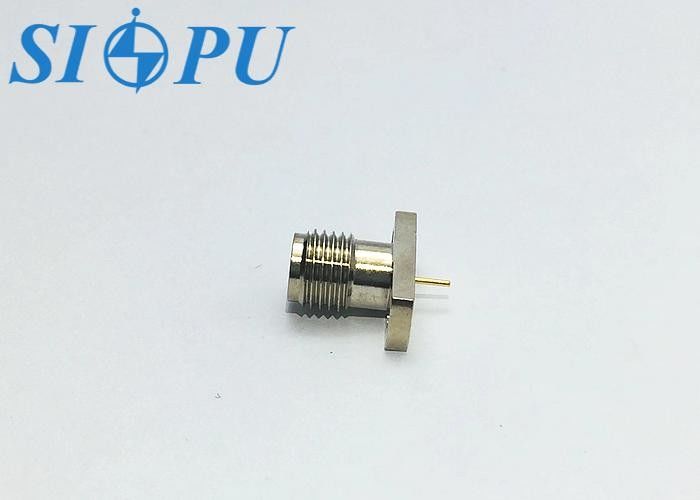

Product Appearance

Important Technical Parameter

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-18GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.05+0.012F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.05√F(GHZ)dB
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, ternary alloy plating

Product Image Gallery
