Name: BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: BMA/SMA-KK
Availability: InStock

Home > products > RF Adapter >

BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)

Female RF Adapter

SMA Female RF Adapter

BMA Female RF Adapter

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001, RoHS, CE

Model Number:

BMA/SMA-KK

Request A Quote

BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)

Product Details

Product Name:

BMA Female To SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)

Material:

Brass

Plating:

Gold

Durability 500 Times:

500 Times

Highlight:

Female RF Adapter

SMA Female RF Adapter

BMA Female RF Adapter

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Discuss

Packaging Details

Carton

Delivery Time

6-8weekd

Payment Terms

L/C,T/T,Western Union

Supply Ability

120000pcs/year

RF Coaxial Cable Adapter – SMA Female to SSMB Female

Get Best Price

SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)

Get Best Price

SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)

Get Best Price

RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)

Get Best Price

86-029-8886-0801

Contact Now

Product Description

BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)

Product Overview

RF coaxial adapters are essential for enabling seamless transitions between connectors of the same or different series. They act as bridge components to ensure proper connectivity in RF systems.

Applications
Commonly used in test instruments, RF test cables, and system conversion setups across telecom, aerospace, and industrial applications.

Product Features

Interfaces: BMA Male to SMA Male

Supports wide frequency bandwidth with minimal signal loss

Delivers excellent electrical performance and high signal integrity

Compact, robust design offering long-term reliability

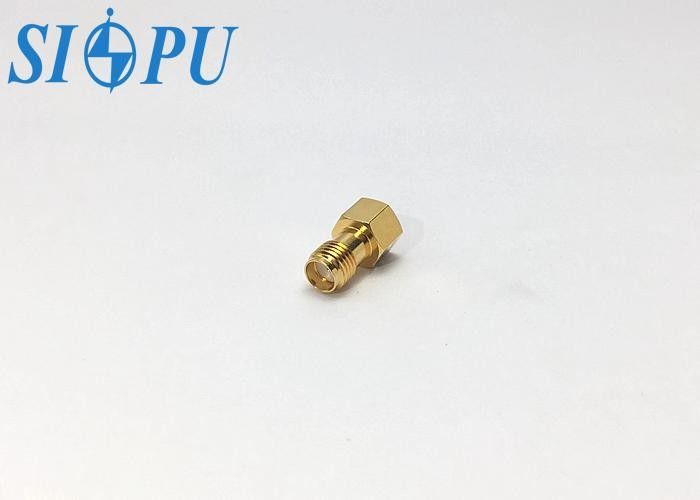

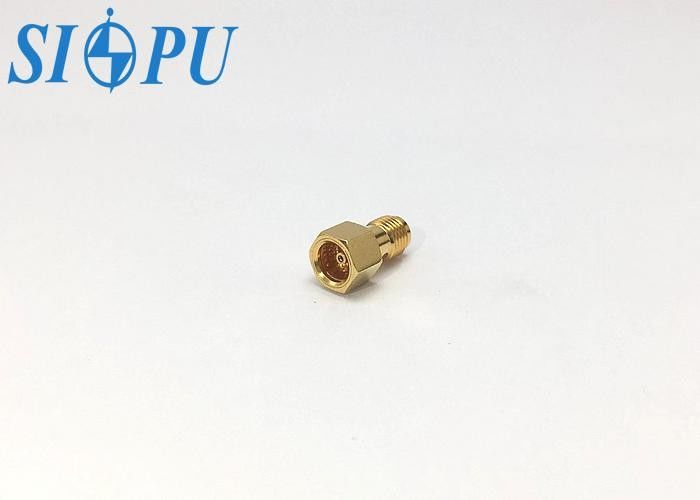

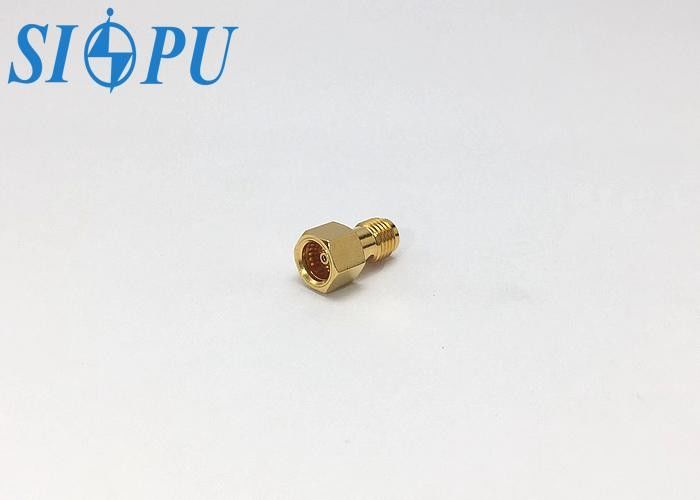

Product Appearance

BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K) 0

Important Technical Parameters

Electrical property

Temperature range

-65～+125℃

Characteristic impedance

50Ω

Frequency range

DC-18GHz

Dielectric withstanding voltage

1000V

VSWR

≤1.08+0.012F(GHz)

Insulation resistance

≥5000MΩ

Insertion loss

≤0.05√F(GHz)dB

Contact resistance

Center conductor

≤3.0mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500 times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating
