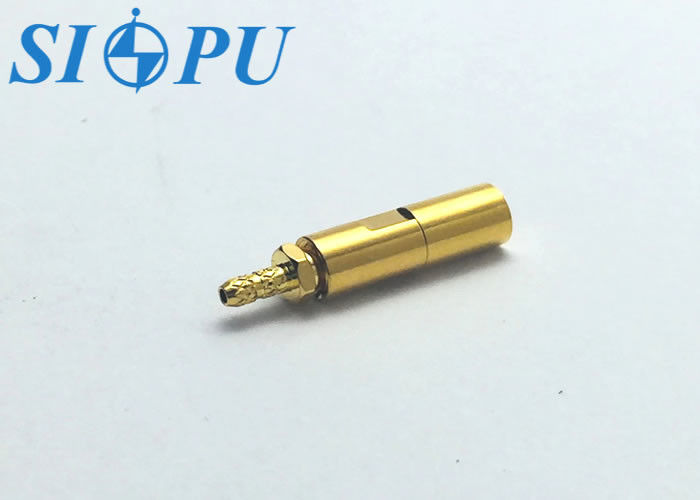

Name: SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: SSMB-K2Y
Availability: InStock

Home > products > SMB SSMB Connector >

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Female SSMB Connector

Coaxial SSMB Connector

RG 178/U Cable SSMB Connector

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001, RoHS, CE

Model Number:

SSMB-K2Y

Request A Quote

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Product Details

Product Name:

SSMB Female RF Coaxial Connector – Compatible With RG178/U Cable

Gender:

Female

Type:

Straight

Material:

Brass

Plating:

Gold

Insulating Medium:

PTFE

Durability:

500 Times

Highlight:

Female SSMB Connector

Coaxial SSMB Connector

RG 178/U Cable SSMB Connector

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Discuss

Packaging Details

Carton

Delivery Time

5-8week days

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000pcs/year

SSMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Get Best Price

SMB Male RF Coaxial Connector – Microstrip, Flange Mounted

Get Best Price

SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable

Get Best Price

SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Get Best Price

86-029-8886-0801

Contact Now

Product Description

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Product Overview

The SSMB series is a miniature push-in locking RF connector known for its compact size, light weight, fast and convenient connection, and strong shock resistance. It is internationally compatible with similar standard products, making it a reliable choice for global applications.

Applications

Electronic instruments

Radio communication equipment

Compact RF modules and devices

Product Features

Push-in snap-lock design for quick and secure connection

Compatible with RG178/U coaxial cable

Small size and lightweight

High connection reliability and ease of use

Good resistance to vibration and mechanical stress

Product Specifications

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable 0

Important Technical Parameters

Electrical property			Temperature range	-55～+155℃
Characteristic impedance		50Ω	Frequency range	DC-3GHz
Dielectric withstanding voltage		500V	VSWR	≤1.5
Insulation resistance		≥1000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.5mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

Product Image Gallery

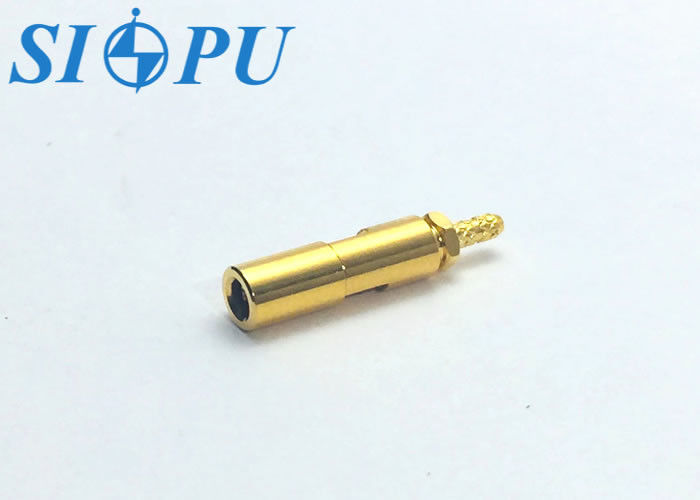

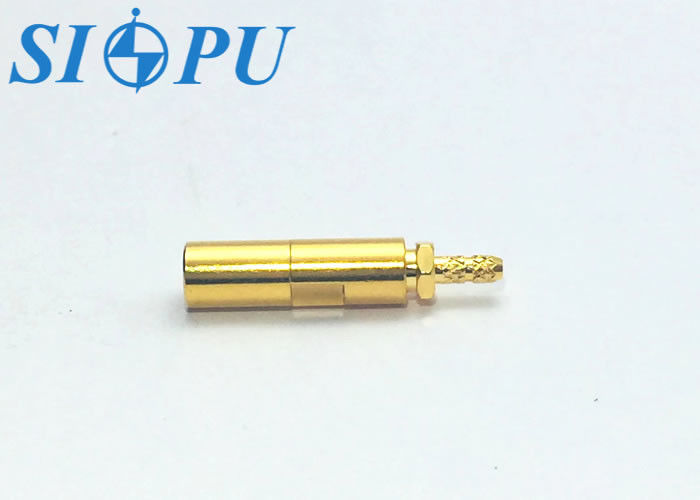

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable 1
