Name: BNC Male To SMA Male RF Coaxial Adapter TNC(K)-SMA(J)
Brand: Xi'an Aerospace Sipu Electronic Technology Co., Ltd
SKU: TNC/SMA-KJ
Availability: InStock

Home > products > RF Adapter >

BNC Male To SMA Male RF Coaxial Adapter TNC(K)-SMA(J)

BNC Male To SMA Male

BNC To SMA Male Adapter

BNC To SMA RF Coaxial Adapter

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001 RoHS

Model Number:

TNC/SMA-KJ

Request A Quote

BNC Male To SMA Male RF Coaxial Adapter TNC(K)-SMA(J)

Product Details

Product Name:

BNC Male To SMA Male RF Coaxial Adapte

Material:

Brass

Plating:

Nickle

Durability 500 Times:

500 Times

High Light:

Excellent Electrical Performance, Strong Environmental Resistance, High Reliability.

Highlight:

BNC Male To SMA Male

BNC To SMA Male Adapter

BNC To SMA RF Coaxial Adapter

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Discuss

Packaging Details

Carton

Delivery Time

6-8weekd

Payment Terms

L/C,T/T,Western Union

Supply Ability

120000pcs/year

BMA Female To SMA Female Coax RF Adapter BMA(K)-SMA-(K)

Get Best Price

RF Coax Cable Adapter for SMA Female To SSMB Female

Get Best Price

SMA Male To SSMA Female RF Coax Adapter SMA(J)-SSMA-(K)

Get Best Price

SMA Female To SMP Female Coax RF Adapter SMA(K)-SMP-(K)

Get Best Price

86-029-8886-0801

Contact Now

Product Description

BNC Male To SMA Male RF Coaxial Adapter TNC(K)-SMA(J)

Product introduction

RF coaxial adapters of different specifications ensure the correct transfer of connectors between different series and within the same series, generally serving as a bridge connection.
Application scope: It is often used for system connection and conversion, and is generally more commonly used in testing cables and testing instruments.
Product features: The two ends are respectively plugged into the TNC male and SMA female series connectors, which have excellent electrical performance, strong environmental resistance, and high reliability.

Product appearance

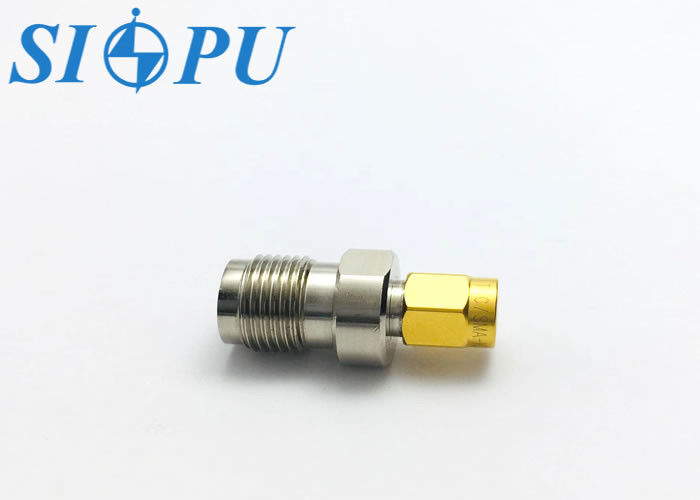

BNC Male To SMA Male RF Coaxial Adapter TNC(K)-SMA(J) 0

Important technical parameter

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-11GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and surface treatment

Center conductor

Brass,gold plating

Insulating medium

PTFE

Outer conductor

Brass,nickel plating

Sealing ring

Silicon rubber

Picture display

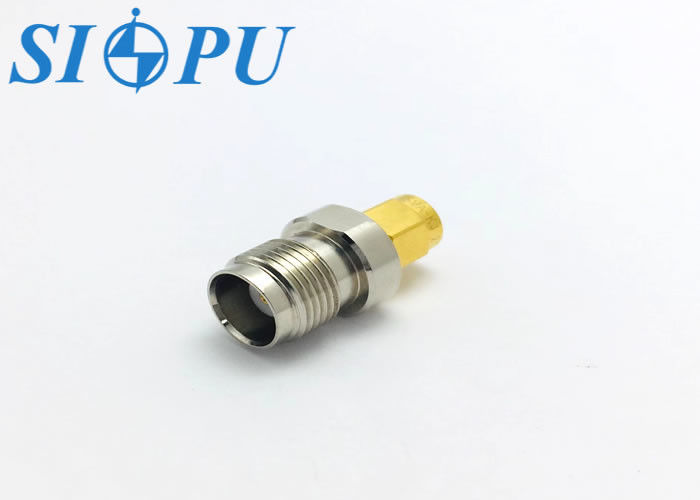

BNC Male To SMA Male RF Coaxial Adapter TNC(K)-SMA(J) 1

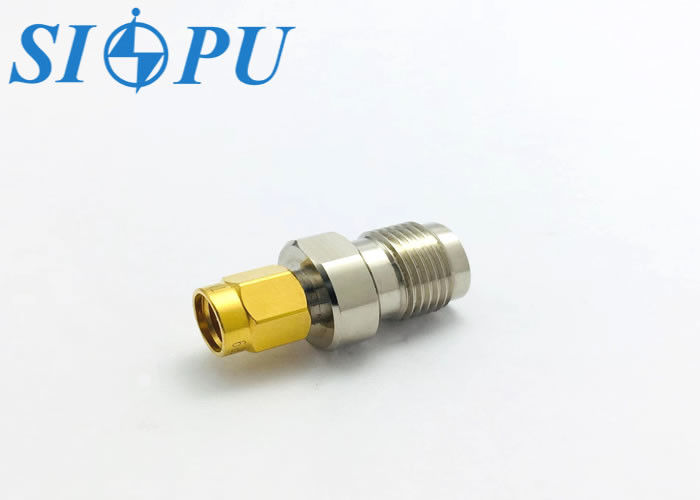

BNC Male To SMA Male RF Coaxial Adapter TNC(K)-SMA(J) 3
