SMA Female RF Coaxial Connectors Flange Mount Receptacle

SMA Female RF Coaxial Connectors (Flange-Mounted Receptacles)

Product Overview

Application Fields

Core Features

• Four-hole flange mounting design: The multi-point fixing structure enhances installation stability, adapts to equipment panels of different thicknesses, and reduces the risk of connection loosening in vibrating environments.
• Uniform point contact on the shell: Optimizes the consistency of contact impedance, reduces signal reflection, and ensures the integrity of signal transmission in high-frequency bands.
• Precise specifications for inner conductor tail: The standardized design with a 0.5mm slot width and 1.5mm slot depth ensures tight fitting with wires, minimizing signal loss at the terminal.
• Combined advantages of compact size and wide bandwidth: The small form factor saves internal equipment space, while supporting wide frequency bandwidth transmission to meet diverse needs from low-frequency to microwave bands.
• Superior electrical performance: Features low VSWR (Voltage Standing Wave Ratio) and high isolation, effectively suppressing signal interference and ensuring transmission quality.
• Global standard compatibility: Strictly compliant with international universal specifications, it offers strong interchangeability and can seamlessly adapt to same-type connectors from different brands, reducing system integration costs.

Product Structure Diagram

Important Technical Parameter

Materials and Surface Treatment

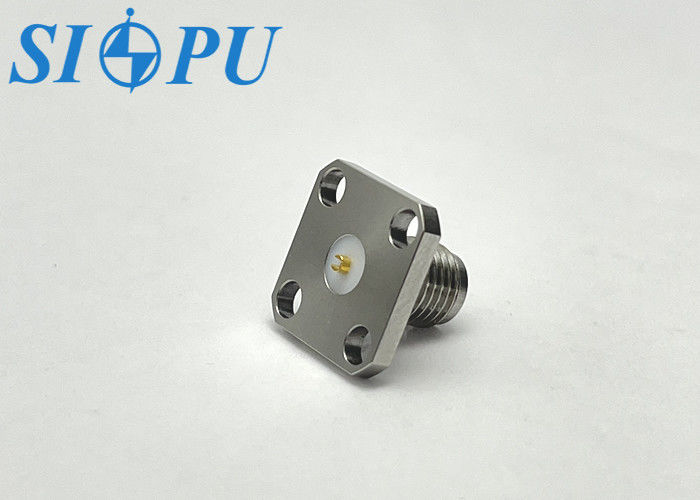

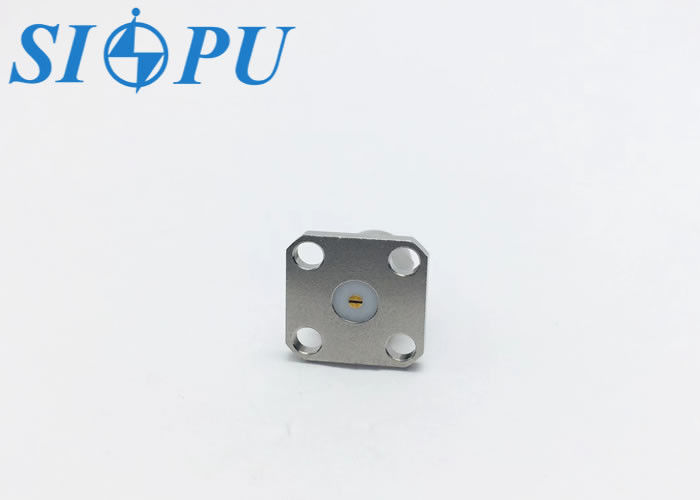

Product Image Gallery
