Name: Micro Flange Installation Of Stainless Steel SMA RF Connector For Microstrip Applications At 18GHZ
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: SMA-JFD191G
Availability: InStock

Home > products > SMA RF Connector >

Micro Flange Installation Of Stainless Steel SMA RF Connector For Microstrip Applications At 18GHZ

Micro Flange SMA RF Connector

Stainless Steel SMA RF Connector

Microstrip SMA RF Connector

Place of Origin:

China

Brand Name:

SIPU

Certification:

ISO9001-2017, RoHS, CE

Model Number:

SMA-JFD191G

Request A Quote

Micro Flange Installation Of Stainless Steel SMA RF Connector For Microstrip Applications At 18GHZ

Product Details

Product Name:

Micro Flange Installation Of Stainless Steel SMA RF Connector For Microstrip Applications At 18GHZ

Gender:

Male

Type:

Straight

Material Science:

Stainless Steel

Plating:

Passivation

Durability:

500 Times

Highlight:

Micro Flange SMA RF Connector

Stainless Steel SMA RF Connector

Microstrip SMA RF Connector

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Discuss

Packaging Details

Carton

Delivery Time

6-8Weeks

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000pcs/yesr

SMA Female RF Coaxial Connector – Slotted, Flange Mount Socket

Get Best Price

PTFE Insulating Medium SMA RF Connector 500 Cycles Durability 50Ω Characteristic Impedance Durability

Get Best Price

Micro Flange Installation Of Stainless Steel SMA RF Connector For Microstrip Applications At 18GHZ

Get Best Price

500 Times Durability SMA RF Connector for Straight Connection Dependability

Get Best Price

86-029-8886-0801

Contact Now

Product Description

SMA Male RF Coaxial Connector – Flange Mount, Stainless Steel, for Microstrip Applications

Product Description:
SMA series connectors are widely used threaded coaxial connectors designed for secure, high-frequency signal connections. They are commonly employed in RF circuits of digital microwave devices and communication systems to connect microstrip lines or coaxial cables.

Applications:
Ideal for use in networking equipment, wireless communication systems, and telecommunication infrastructure.

Product Features:

Threaded coupling for reliable connections
Flange-mount design for easy and stable installation
Wide frequency range with excellent electrical performance
Compact size and long service life
Optimized mounting pitch for more efficient space utilization compared to conventional products

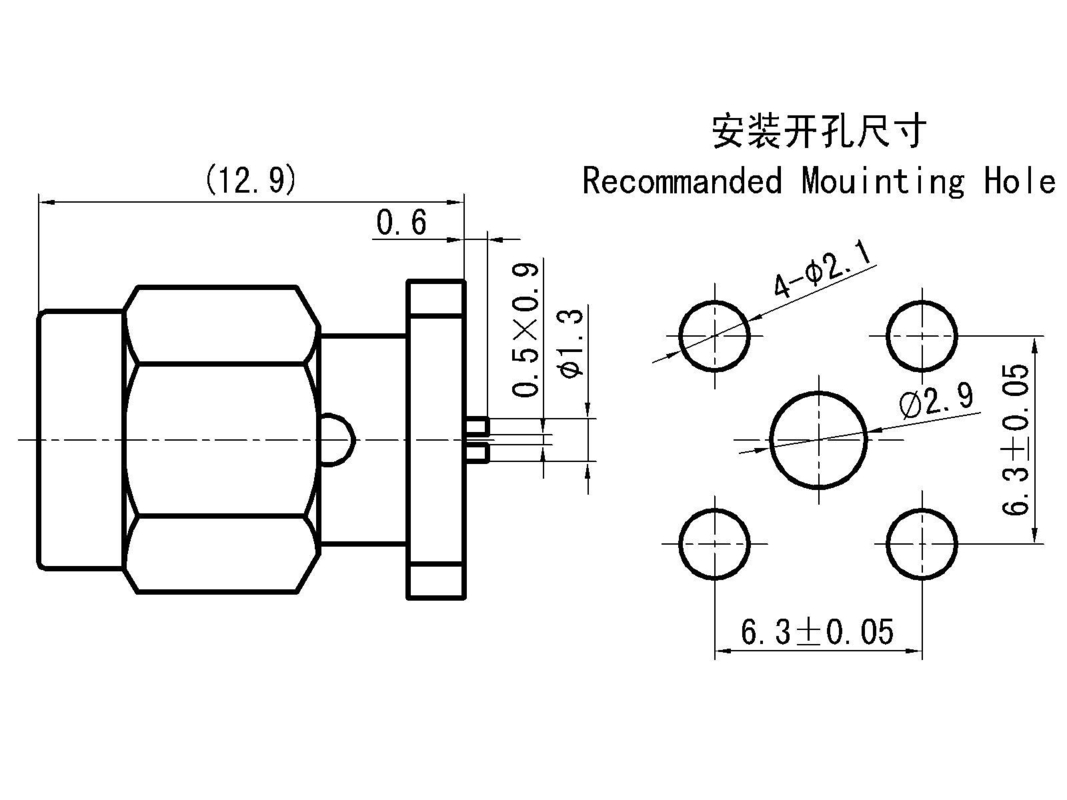

Product Structure Diagram

Micro Flange Installation Of Stainless Steel SMA RF Connector For Microstrip Applications At 18GHZ 0

Important Technical Parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-18GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.05+0.012F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.05√F(GHZ)dB
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Brass, gold plating

Insulating medium

PTFE

Outer conductor

Stainless steel, passivating

Sealing ring

Silicon rubber

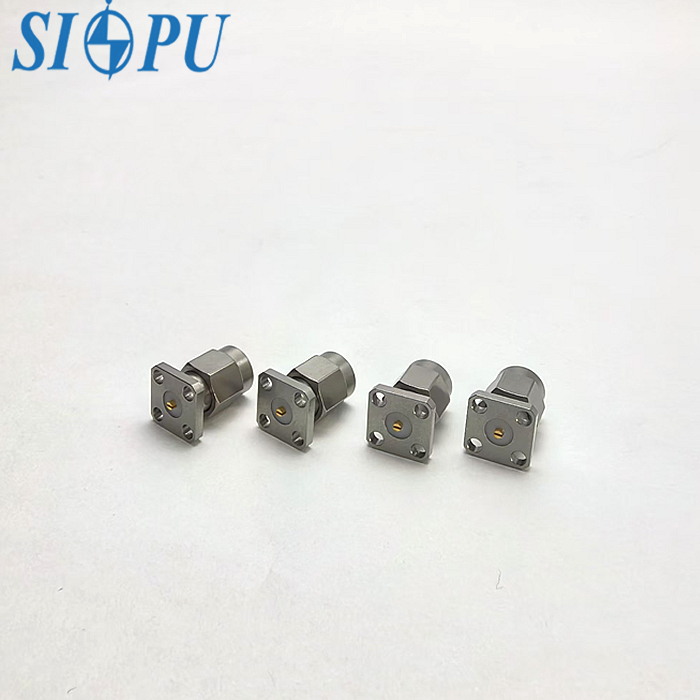

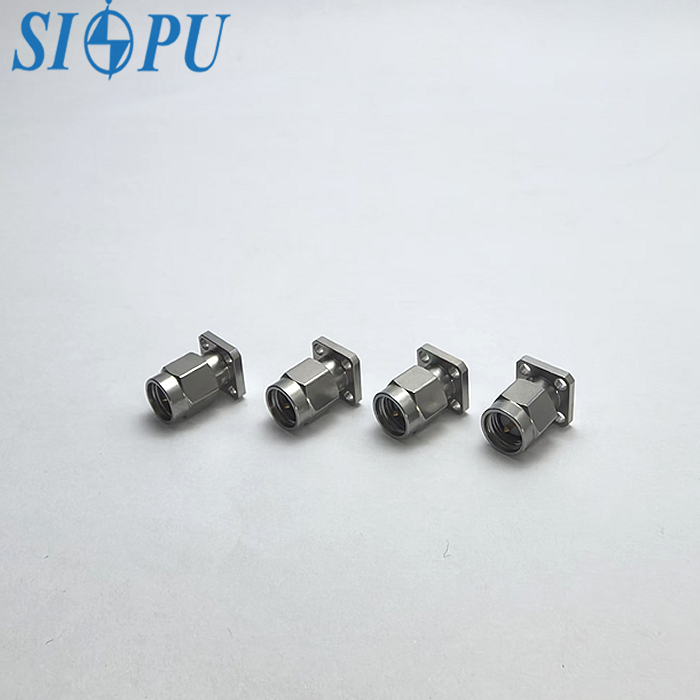

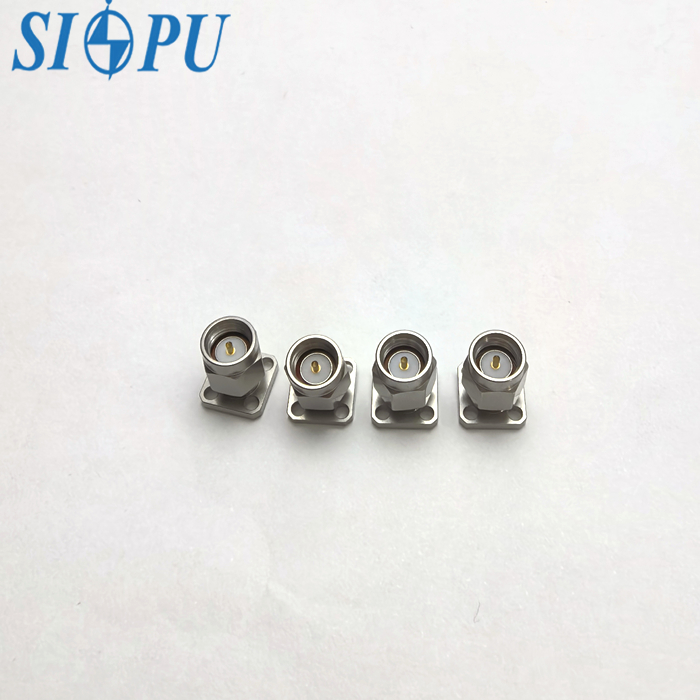

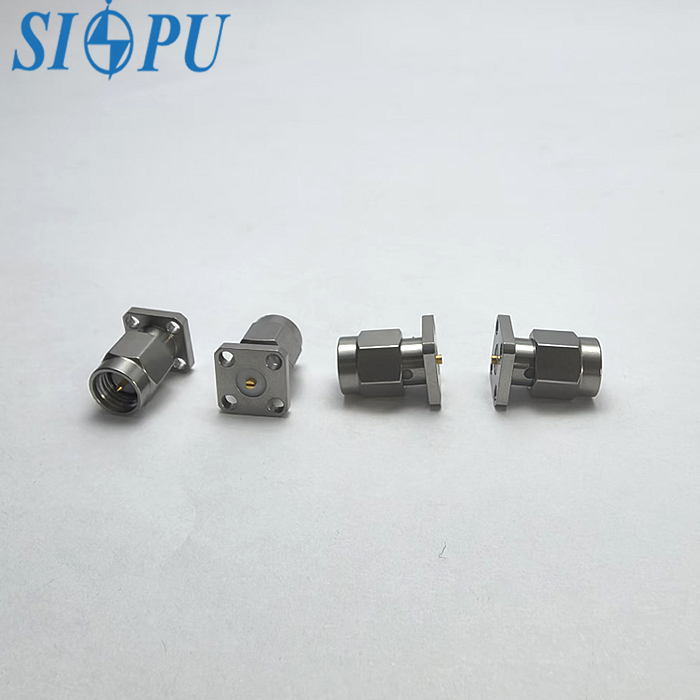

Product Image Gallery

https://www.connector-rf.com/sale-47877851-sma-male-rf-coaxial-connector-microstrip-type-four-hole-flange-mount.html
