Name: SMA Male RF Coaxial Connector for SFF-50-2-2 Cable
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: SMA-J4
Price: 1.99 USD
Availability: InStock

Home > products > SMA RF Connector >

SMA Male RF Coaxial Connector for SFF-50-2-2 Cable

SMA male RF coaxial connector

SMA connector for SFF-50-2-2 cable

RF coaxial connector with warranty

Place of Origin:

China

Brand Name:

SIPU

Certification:

ISO9001-2017, RoHS, CE

Model Number:

SMA-J4

Request A Quote

SMA Male RF Coaxial Connector for SFF-50-2-2 Cable

Product Details

Product Name:

SMA Male RF Coaxial Connector Cable

Gender:

Male

Type:

Straight

Material:

Brass

Plating:

Gold

Durability:

500 Times

Feature:

Connect Cable Connectors

Impedance:

50Ω

Highlight:

SMA male RF coaxial connector

SMA connector for SFF-50-2-2 cable

RF coaxial connector with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

＄0.99-3.0

Packaging Details

Carton

Delivery Time

6-8Weeks

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000pcs/yesr

Long Mechanical Life SMA RF Connector with ≤2.0mΩ Contact Resistance and N/A Sealing Ring

Get Best Price

DC-18GHz High Frequency Insertion Loss≤0.05dB

Get Best Price

Highly Durable SMA RF Connector Durability 500 Times Sealing Ring N/A Characteristic Impedance 50Ω

Get Best Price

50Ω Characteristic Impedance Stainless Steel with VSWR≤1.05 0.012F GHz

Get Best Price

86-029-8886-0801

Contact Now

Product Description

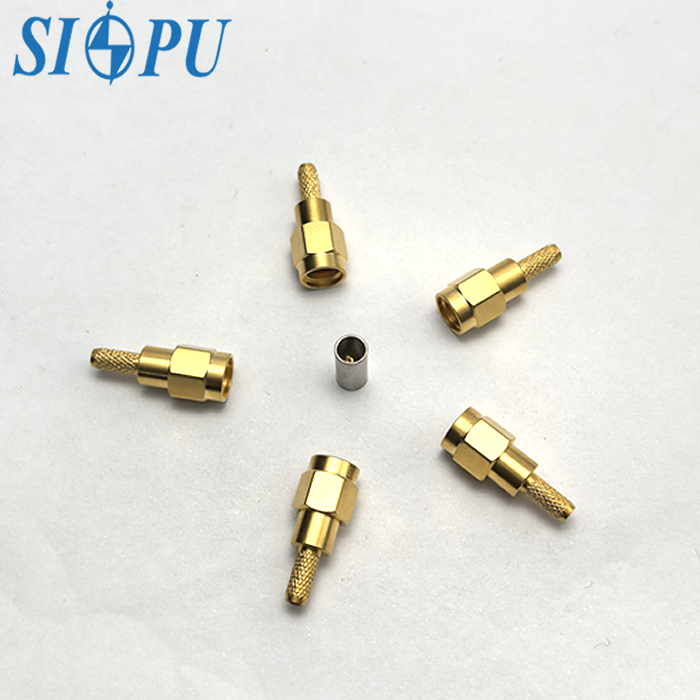

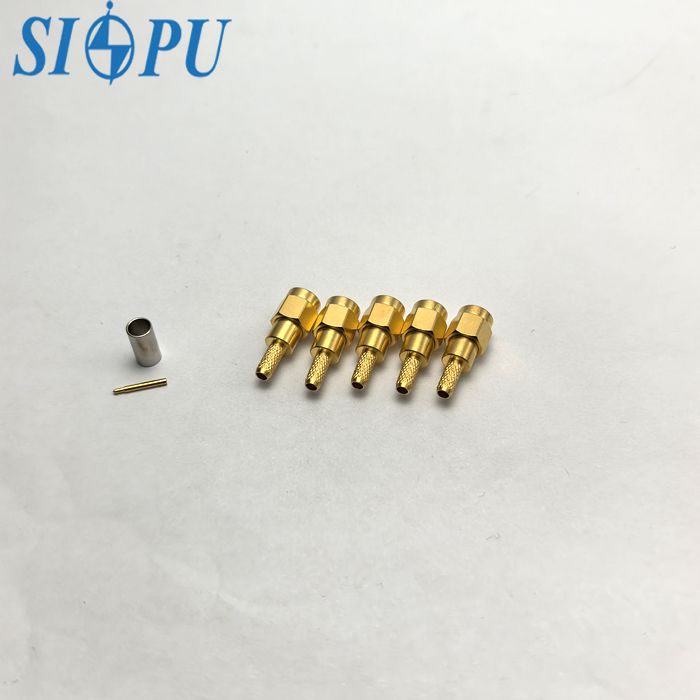

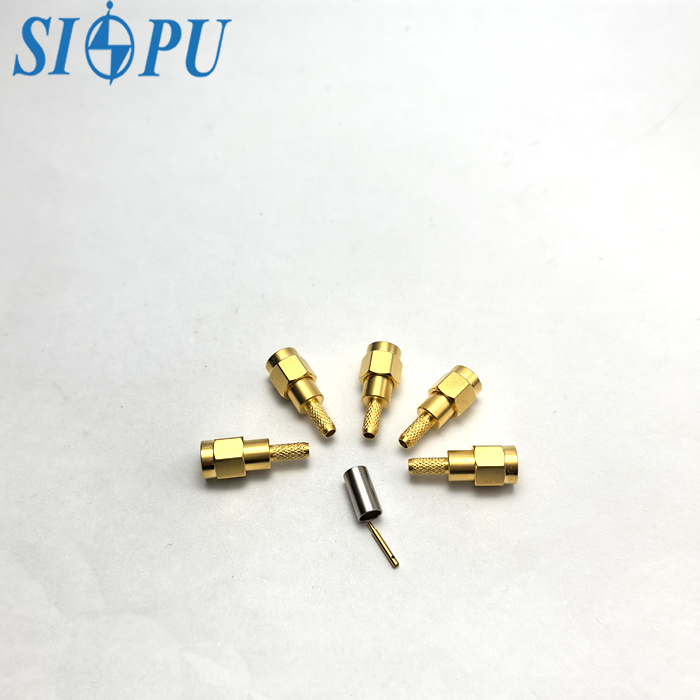

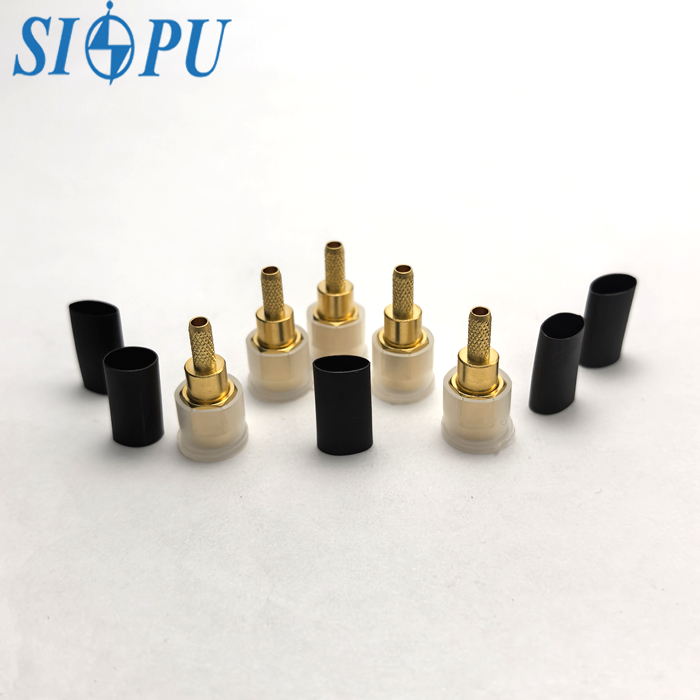

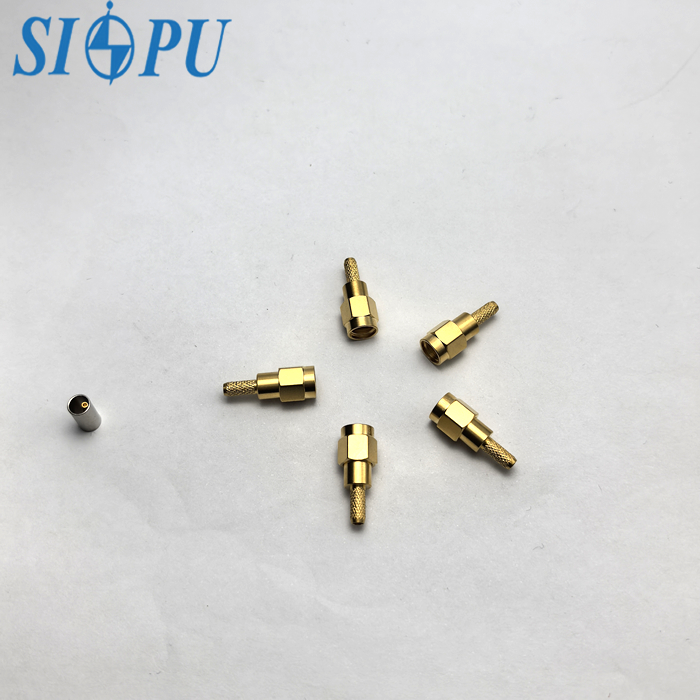

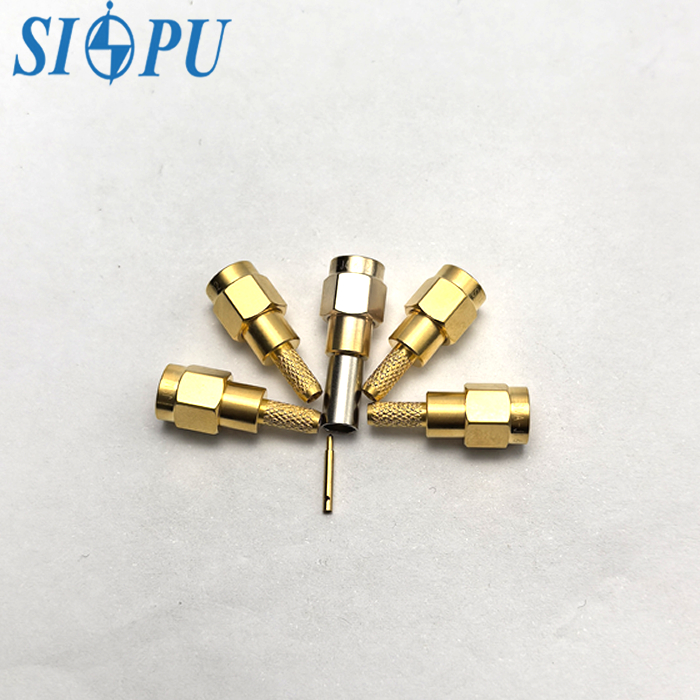

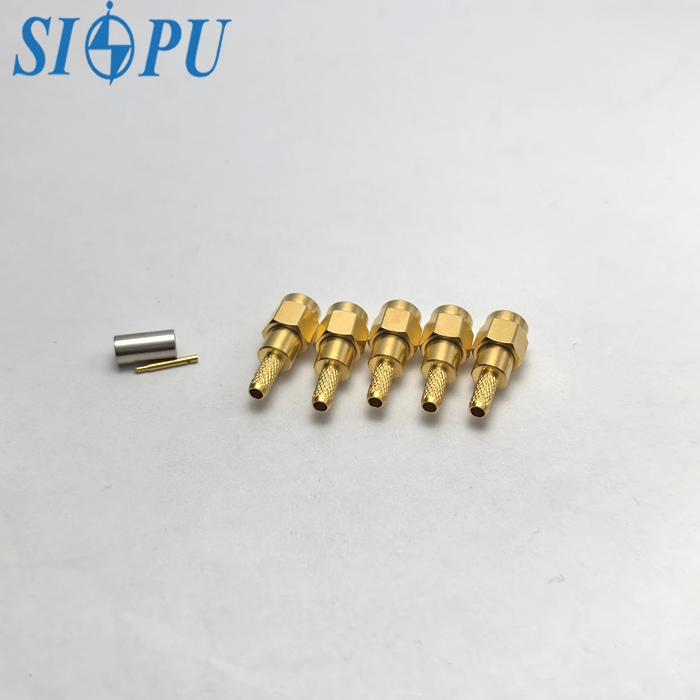

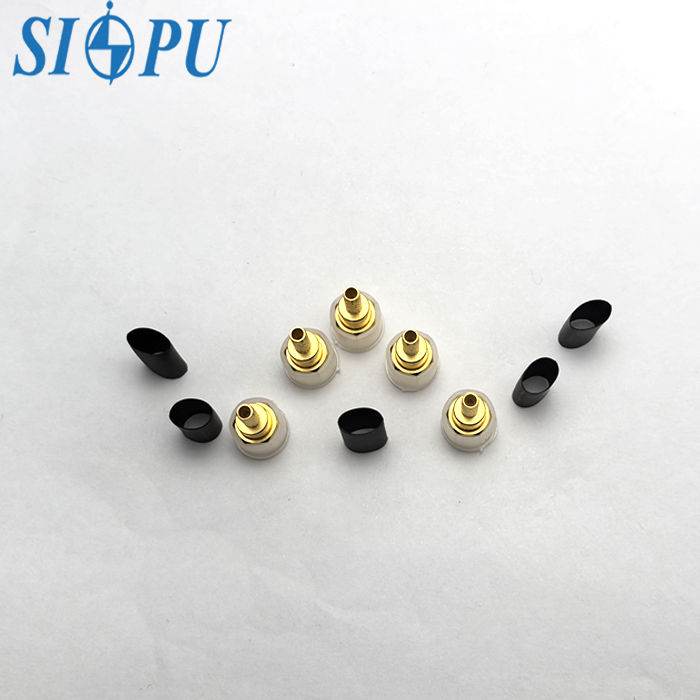

SMA Male RF Coaxial Connector for SFF-50-2-2 Cable

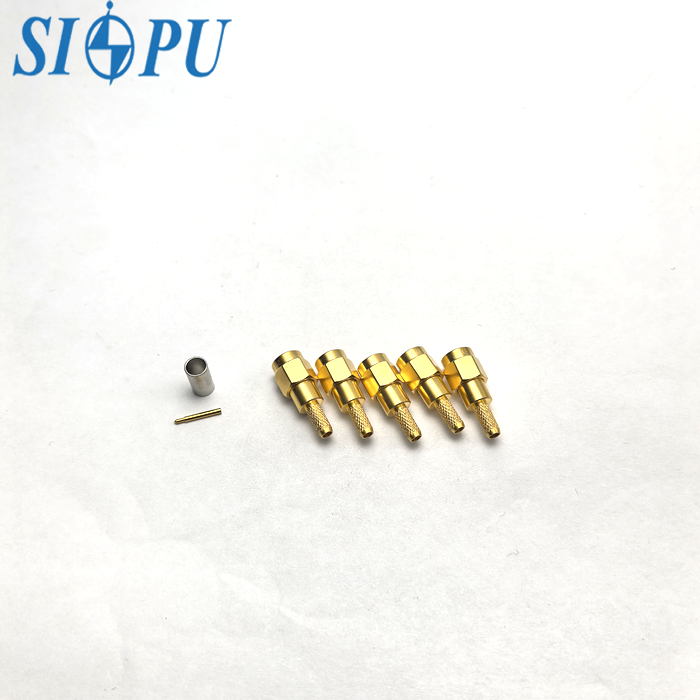

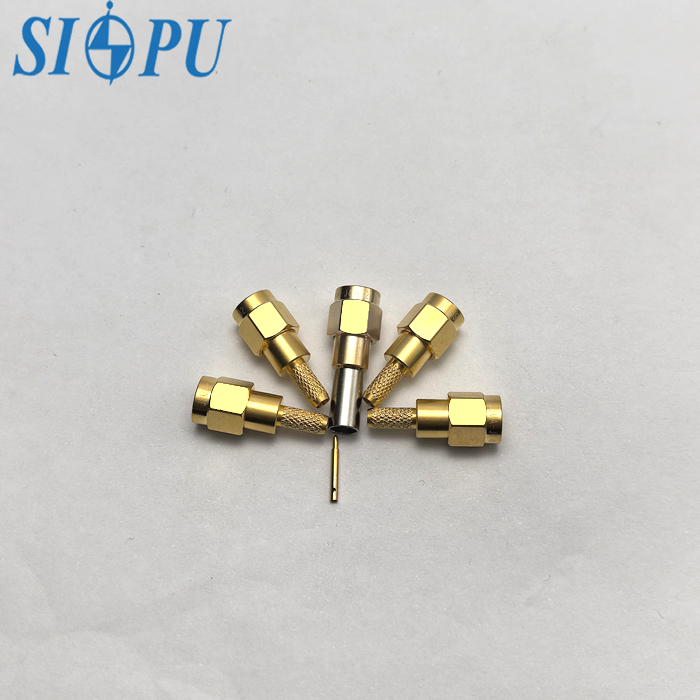

SMA Male RF Coaxial Connector for SFF-50-2-2 Cable 0

Product Overview:

The SMA series is a compact, threaded RF connector widely used in microwave equipment, digital communication systems, and RF circuits involving microstrip lines or coaxial cables.

Application Areas:

Wireless communication, telecommunications, networking, and other RF applications.

Product Features:

This model is designed for use with SFF-50-2-2 RF coaxial cable. It adopts a structure where the center conductor is soldered to the cable core, and the outer shield is crimped with a cable clamp. The connector offers compact size, excellent electrical performance, and long service life.

Key Technical Specifications

Electrical Property			Temperature Range	-65～+125℃
Characteristic Impedance		50Ω	Frequency Range	DC-12.4GHz
Dielectric Withstanding Voltage		1000V	VSWR	≤1.05+0.012F(GHz)
Insulation Resistance		≥5000MΩ	Insertion Loss	≤0.05dB
Contact Resistance	Center Conductor	≤3.0mΩ	Mechanical Property
Contact Resistance	Outer Conductor	≤2.0mΩ	Durability	500 Cycles

Materials & Finish

Center Conductor

Brass, Gold Plated

Insulating Medium

PTFE

Outer Conductor

Brass, Gold Plated

Sealing Ring

Silicon Rubber

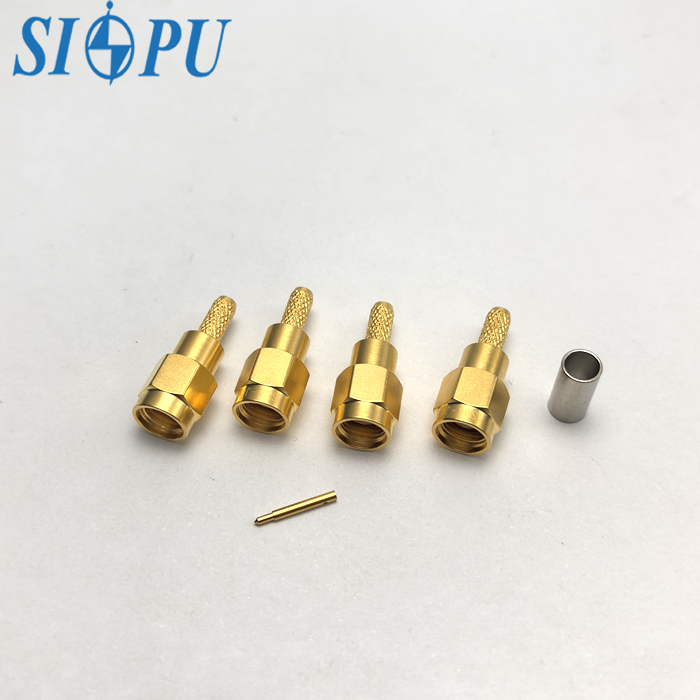

SMA Male RF Coaxial Connector for SFF-50-2-2 Cable 2
