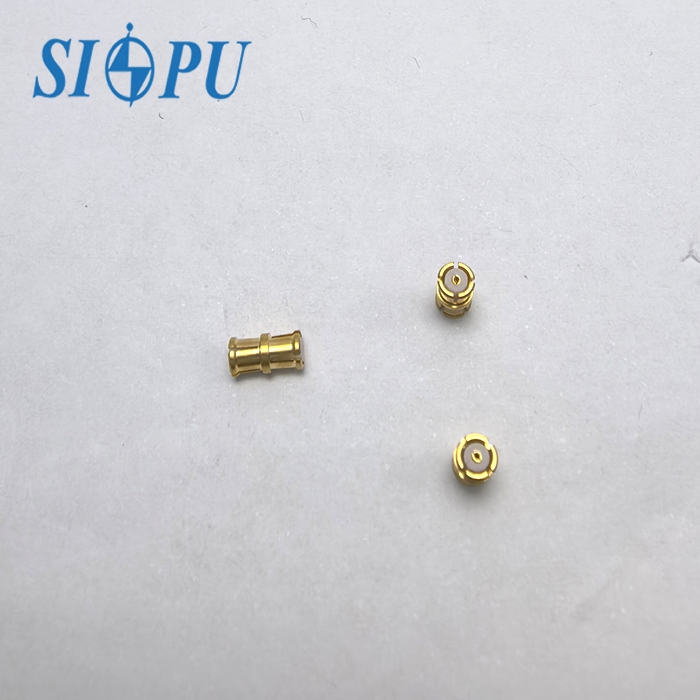

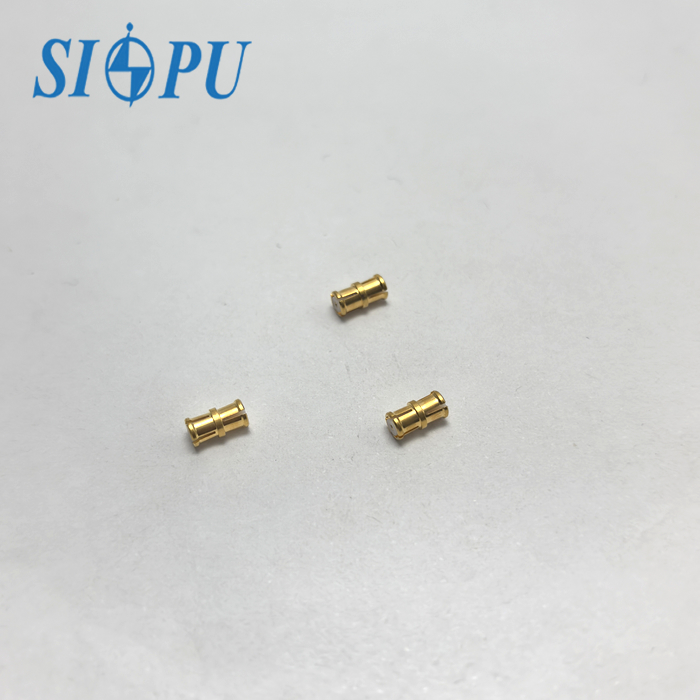

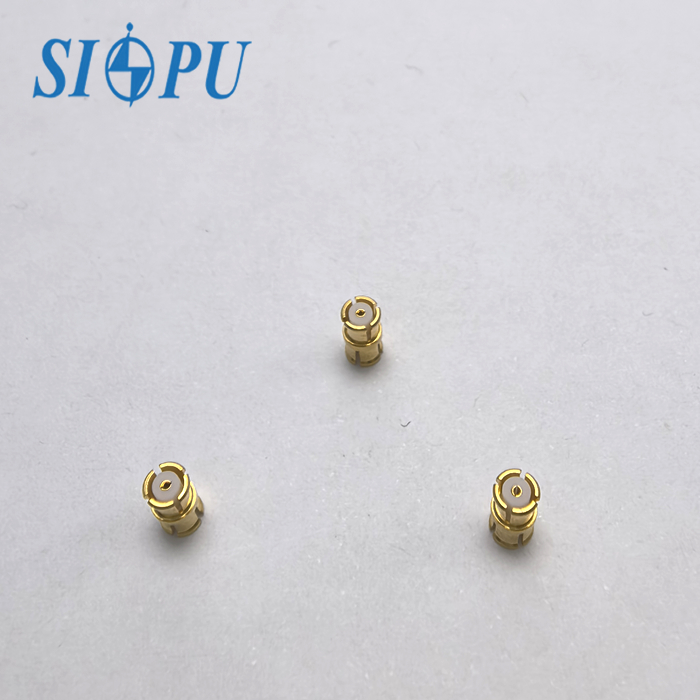

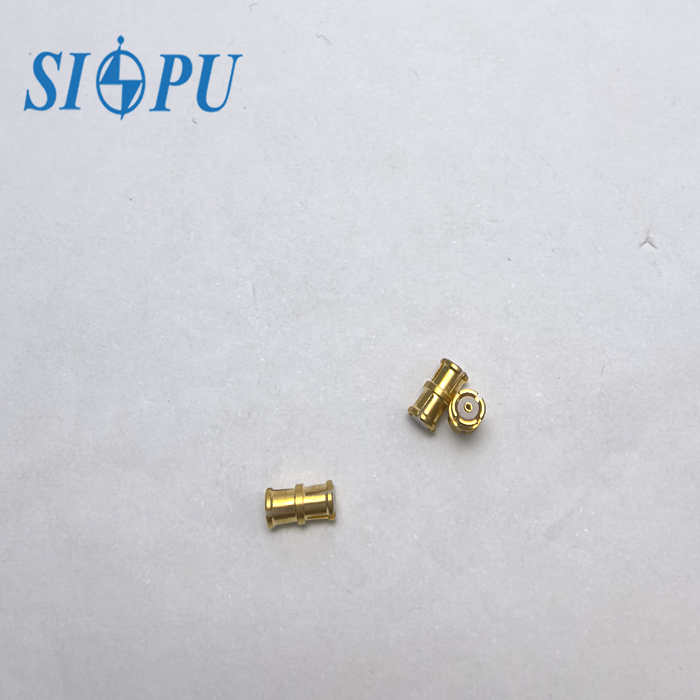

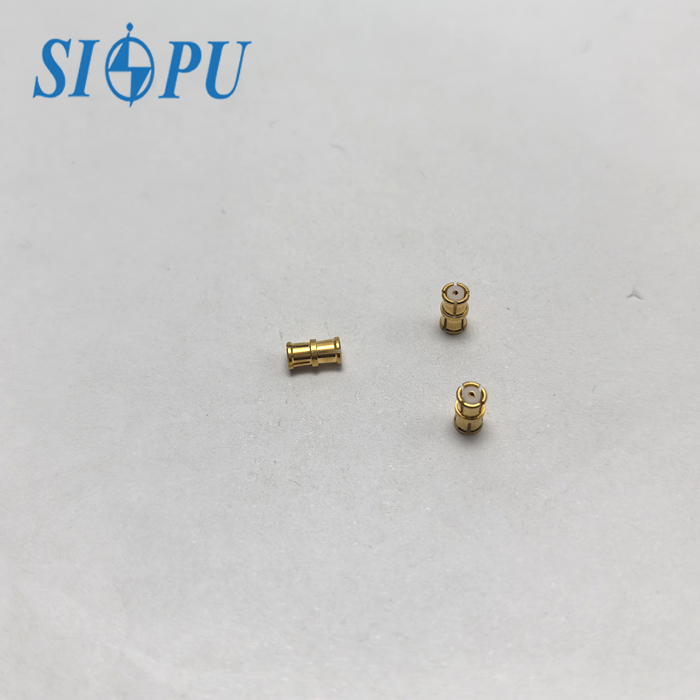

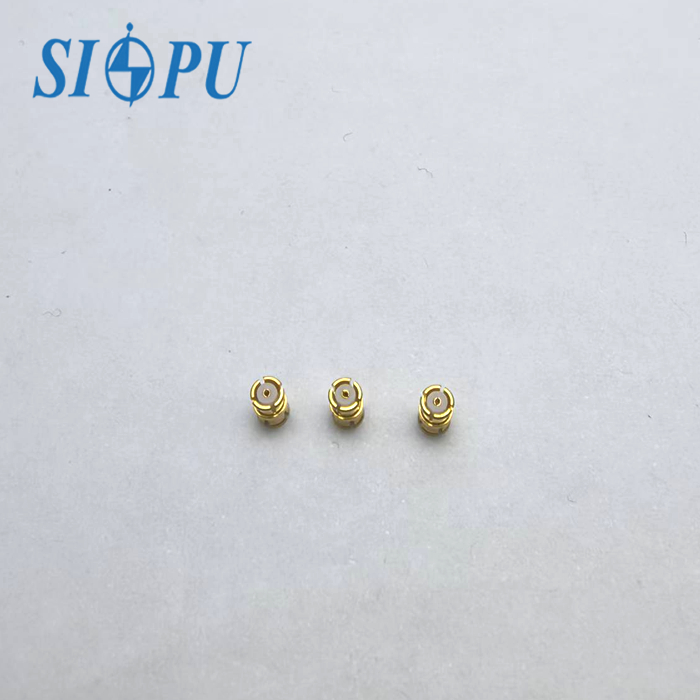

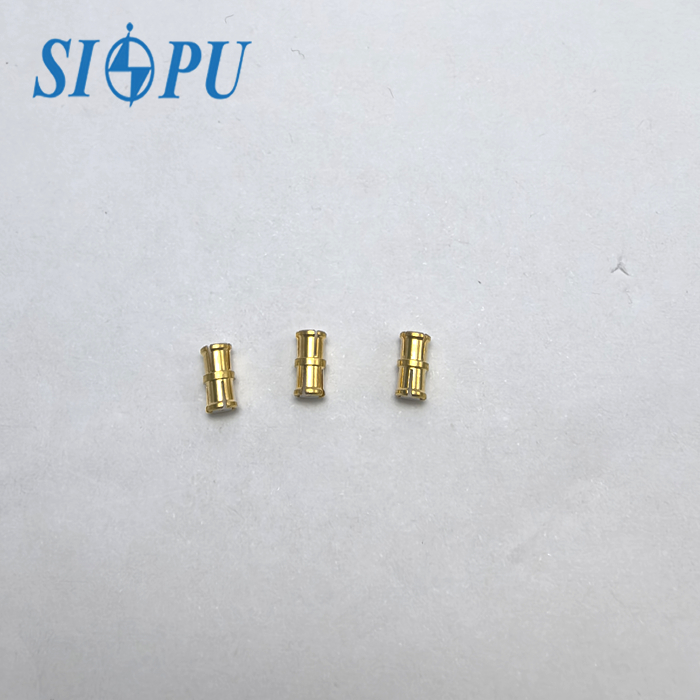

SMP Female to SMP Female RF Coaxial Adapter

SMP Female to SMP Female RF Coaxial Adapter

SMP female RF coaxial adapter

SMP female to female connector

RF coaxial adapter with warranty

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001-2017, RoHS, CE

Model Number:

SMP-KK1

Contact Us
Request A Quote
SMP Female to SMP Female RF Coaxial Adapter SMP Female to SMP Female RF Coaxial Adapter SMP Female to SMP Female RF Coaxial Adapter SMP Female to SMP Female RF Coaxial Adapter SMP Female to SMP Female RF Coaxial Adapter SMP Female to SMP Female RF Coaxial Adapter SMP Female to SMP Female RF Coaxial Adapter SMP Female to SMP Female RF Coaxial Adapter
Product Details
Product Name:
SMP Female To Female RF Coaxial Adapter
Characteristic Impedance:
50Ω
Dielectric Withstanding Voltage:
500V
Insulation Resistance:
≥5000MΩ
Durability:
500 Times
Gender:
Female
Type:
Straight
Material:
Beryllium Bronze
Plating:
Gold
Highlight:

SMP female RF coaxial adapter

,

SMP female to female connector

,

RF coaxial adapter with warranty

Payment & Shipping Terms
Minimum Order Quantity
50
Price
＄1.0-3.0
Packaging Details
Carton
Delivery Time
5-6 Weeks
Payment Terms
L/C, T/T, Western Union
Supply Ability
100000pcs/year
RELATED PRODUCTS
Good price Male RF Coaxial Connector Designed for Excellent Electrical Performance and ≥5000MΩ Insulation Resistance online

Male RF Coaxial Connector Designed for Excellent Electrical Performance and ≥5000MΩ Insulation Resistance

Get Best Price
Good price Smooth Connection Guaranteed 50Ω PCB Coaxial Connector Designed for SMP-K Female Connectors online

Smooth Connection Guaranteed 50Ω PCB Coaxial Connector Designed for SMP-K Female Connectors

Get Best Price
Good price Passivation And Gold Plating RF Coaxial Connector with 50Ω Characteristic Impedance for Optimal Signal Transmission online

Passivation And Gold Plating RF Coaxial Connector with 50Ω Characteristic Impedance for Optimal Signal Transmission

Get Best Price
Good price Designed For PCB Soldering Coaxial PCB Connector with ≤0.07dB Insertion Loss and Performance online

Designed For PCB Soldering Coaxial PCB Connector with ≤0.07dB Insertion Loss and Performance

Get Best Price
Contact Us
86-029-8886-0801
Contact Now
Product Description

   SMP Female to SMP Female RF Coaxial Adapter

         SMP Female to SMP Female RF Coaxial Adapter 0

Product Overview:



The SMP series is an ultra-miniature RF coaxial connector featuring a push-on, self-locking design, ideal for high-frequency, high-density, and high-data-rate applications. It is commonly used in compact RF modules, test systems, and quantum computing setups.



Application Areas:



Broadband installations, test and measurement, antenna systems, aerospace, and quantum computing.



Product Features:

  • Both ends feature SMP-K (female) interfaces, with symmetrical mechanical structure, allowing for non-directional use.
  • Offers low insertion loss, excellent RF performance, light weight, and high resistance to environmental stress.
  • Suitable for applications up to 40 GHz.

Key Technical Specifications





Electrical Property



 Temperature Range -65～+125℃



Characteristic Impedance



 50Ω Frequency Range DC-40GHz



Dielectric Withstanding Voltage



 500V VSWR ≤1.5



Insulation Resistance



 ≥5000MΩ Insertion Loss ≤0.07SMP Female to SMP Female RF Coaxial Adapter 1dB



Contact Resistance

 Center Conductor ≤6.0mΩ Mechanical Property
Outer Conductor ≤2.0mΩ Durability 500 Cycles



Materials & Finish





Center Conductor



Beryllium Bronze, Gold plated

 Insulating Medium PTFE



Outer Conductor



 Beryllium Bronze, Gold Plated Sealing Ring N/A

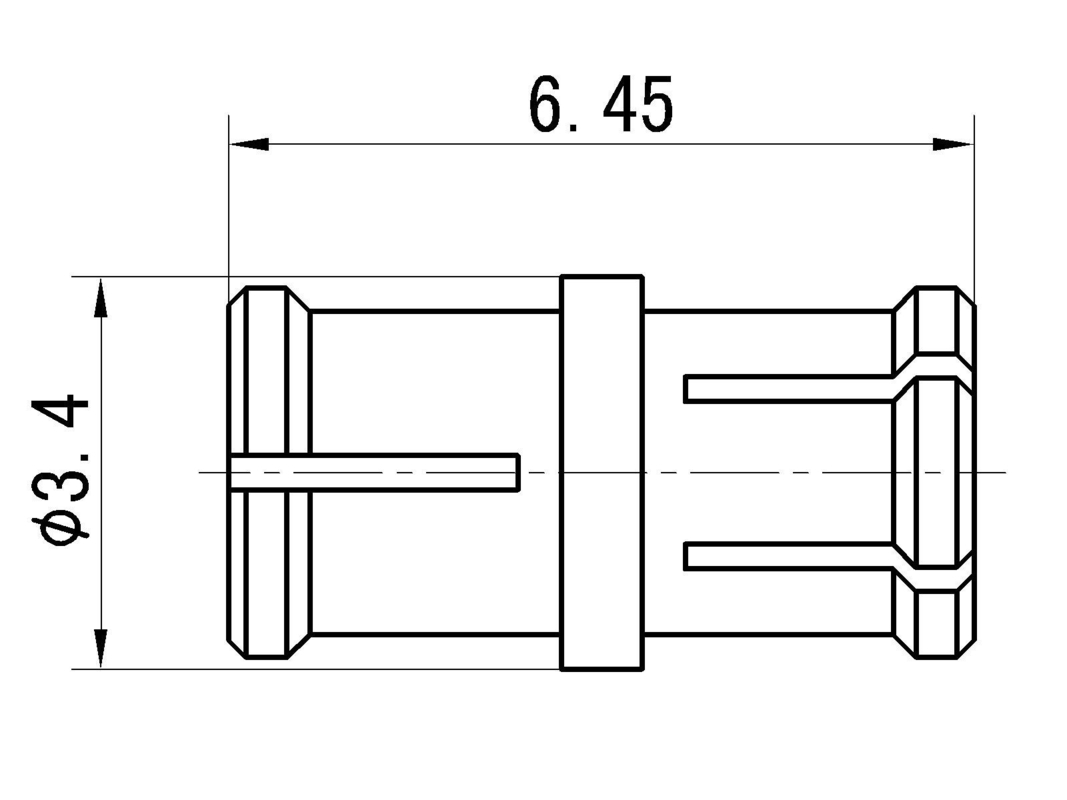

SMP Female to SMP Female RF Coaxial Adapter 2SMP Female to SMP Female RF Coaxial Adapter 3
