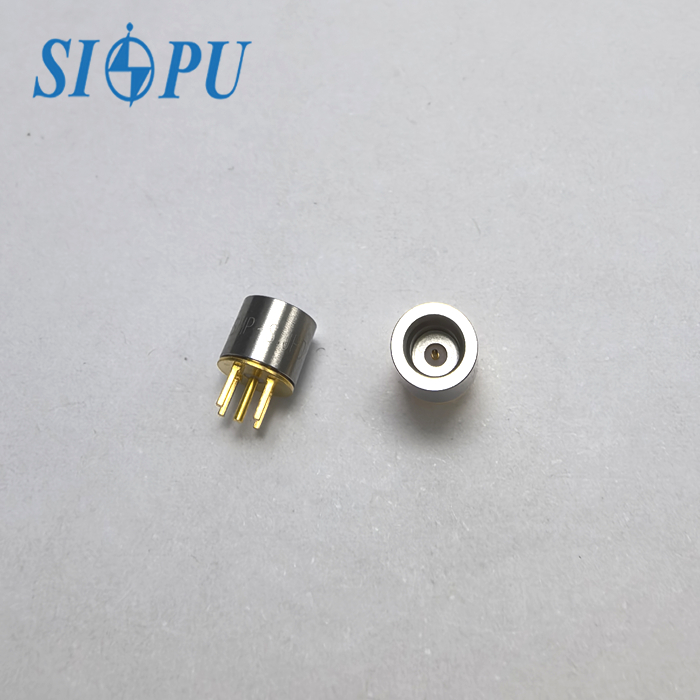

Straight RF Coaxial Connector Temperature Range -65～ 125C Passivation And Gold Plating for Customer Requirements

Product Description:

One of the standout features of this RF coaxial connector is its low insertion loss of ≤0.07dB, which ensures minimal signal attenuation and maximum transmission efficiency. This makes it an ideal choice for applications that require high signal integrity and performance.

Designed with a characteristic impedance of 50Ω, this connector is optimized for use in systems that operate within this impedance range. It provides consistent and reliable signal transmission, making it suitable for a wide range of RF applications.

In terms of durability, this RF coaxial connector is built to last, with a durability rating of 500 times. This ensures that it can withstand repeated mating cycles without compromising on performance or reliability, making it a cost-effective and long-lasting solution for your electronic systems.

Additionally, the connector features a dielectric withstanding voltage of 500V, providing protection against electrical breakdown and ensuring safe and reliable operation in various environments.

Whether you are looking for a PCB mount connector, board mount connector, or coaxial PCB connector, this RF coaxial connector offers versatility and flexibility to meet your specific application requirements. Its reliable performance, low insertion loss, and durable design make it a valuable component for a wide range of RF systems.

Features:

• Product Name: RF Coaxial Connector
• Gender: Male
• Dielectric Withstanding Voltage: 500V
• Frequency Range: DC-40GHz
• Product Category: RF Coaxial Connector
• VSWR: ≤1.5

Technical Parameters:

Applications:

The SIPU RF Coaxial Connector is perfect for applications requiring PCB soldering, making it ideal for projects that demand precision and efficiency. Its compact dimensions and straight type design make it suitable for situations where space is limited, while still providing excellent electrical performance and high environmental resistance.

With a characteristic impedance of 50Ω, this coaxial connector is tailored for male-to-male connections, ensuring seamless signal transmission. The material used, stainless steel, guarantees durability and longevity, making it a reliable choice for long-term use.

For those interested in purchasing this product, the minimum order quantity is 100 units, and payment terms include L/C, T/T, and Western Union. The packaging details involve carton packaging, and the product is certified with ISO9001-2017 and RoHS compliance.

When it comes to pricing, it is recommended to discuss directly with the supplier to determine the most suitable arrangement. The delivery time for orders typically ranges from 3 to 6 weeks, and the supply ability is 100,000 pieces per year, ensuring availability for various project scales.

In summary, the SIPU RF Coaxial Connector is a versatile and reliable product suitable for a wide range of applications, from PCB mount connectors to male-to-male coaxial connections. Its robust construction, excellent performance, and high environmental resistance make it a top choice for demanding projects.

Support and Services:

Our Product Technical Support and Services for the RF Coaxial Connector include:

- Expert technical assistance for installation and troubleshooting

- Documentation and resources for product specifications and usage guidelines

- Repair and replacement services for faulty or damaged connectors

- Training programs for customers on product features and best practices

Packing and Shipping:

Product Name: RF Coaxial Connector

Description: High-quality RF coaxial connector for reliable signal transmission.

Product Packaging:

- Each connector is packed in a small plastic bag to prevent scratches and dust.

- All connectors are then placed in a sturdy cardboard box for protection during shipping.

Shipping Information:

- Shipping Method: Standard shipping via reputable courier service.

- Shipping Time: Estimated delivery within 3-5 business days.

- Shipping Cost: Shipping cost will be calculated at checkout based on location and quantity.

FAQ:

Q: What is the brand name of this RF Coaxial Connector product?

A: The brand name of this product is SIPU.

Q: Where is this RF Coaxial Connector product manufactured?

A: This product is manufactured in China.

Q: What is the minimum order quantity for this RF Coaxial Connector?

A: The minimum order quantity for this product is 100 units.

Q: What are the accepted payment terms for purchasing this RF Coaxial Connector?

A: The accepted payment terms for purchasing this product are L/C, T/T, and Western Union.

Q: What certifications does this RF Coaxial Connector hold?

A: This product is certified with ISO9001-2017 and RoHS.
