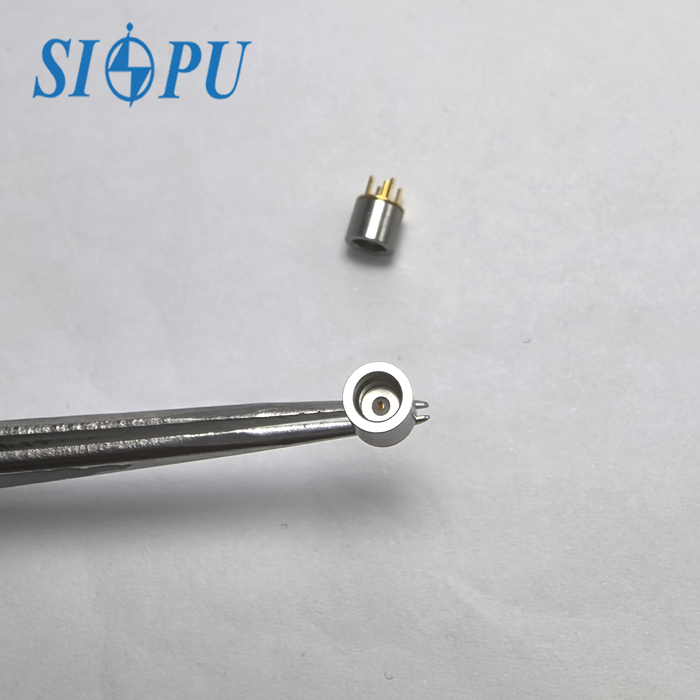

500 Times Durability Guaranteed Passivation and Gold Plating PCB Mount Connector for Performance

Product Description:

The RF Coaxial Connector is a high-quality product designed for various applications requiring reliable signal transmission. With an insulation resistance of ≥5000MΩ, this connector ensures excellent electrical performance and signal integrity. The connector is constructed from durable stainless steel material, providing robustness and longevity.

One of the key features of this RF coaxial connector is its interface design. The connector features a smooth bore that is specifically engineered to mate with SMP-K (female) connectors with low insertion and withdrawal forces. This ensures a secure and stable connection, minimizing signal loss and interference. The insertion loss of ≤0.07dB further enhances signal transmission efficiency, making it ideal for high-frequency applications.

The RF coaxial connector is primarily designed for PCB soldering, offering a convenient solution for integrating it into circuit boards. Its compact dimensions make it suitable for applications where space is limited, while still maintaining excellent electrical performance. The connector's high environmental resistance ensures reliable operation even in challenging conditions.

Whether you are looking for a pcb male connector, pcb mount connector, or male pcb connector, this RF coaxial connector is a versatile option that meets a wide range of requirements. Its robust construction, high-quality materials, and precise interface features make it a reliable choice for demanding applications where signal integrity is critical.

Features:

• Product Name: RF Coaxial Connector
• Frequency Range: DC-40GHz
• Durability: 500 Times
• Characteristic Impedance: 50Ω
• Designed For:
  • PCB soldering
  • Offering compact dimensions
  • Excellent electrical performance
  • High environmental resistance
• Application Areas:
  • Antennas
  • Broadband systems
  • Test and measurement
  • Quantum computing
  • Other high-frequency electronic modules

Technical Parameters:

Applications:

With a minimum order quantity of 100 units, customers have the flexibility to procure these connectors based on their specific needs. Payment terms such as L/C, T/T, and Western Union provide convenience and options for seamless transactions.

Customers can rest assured about the quality of SIPU connectors as they come with certifications such as ISO9001-2017 and RoHS compliance. The connectors are carefully packaged in cartons for safe delivery.

Price negotiations can be discussed based on the quantity ordered, with a delivery time of 3-6 weeks ensuring timely fulfillment of orders. The supply ability of 100,000 pcs/year speaks to the availability and reliability of the product.

The SMP-KW2 connector boasts a dielectric withstand voltage of 500V, ensuring reliable performance even in demanding environments. The plating with passivation and gold enhances durability, while the salt spray resistance of 96 hours exceeds standard connector durability.

Designed as a male RF connector, the SMP-KW2 model is specifically suited for coaxial PCB mount applications. This makes it ideal for scenarios requiring a secure and high-quality connection for RF signals.

Support and Services:

Our Product Technical Support and Services for the RF Coaxial Connector include:

- Installation assistance

- Troubleshooting guidance

- Product manuals and documentation

- Warranty information

- Repair and maintenance services

- Product training and knowledge resources

- Compatibility and specification inquiries

Packing and Shipping:

Product Packaging:

The RF Coaxial Connector is carefully packaged in a sturdy cardboard box to ensure its safe delivery. Each connector is individually wrapped in bubble wrap to prevent any damage during transit.

Shipping Information:

Once your order is placed, our team will process it quickly to prepare your RF Coaxial Connector for shipping. We partner with trusted shipping carriers to deliver your product efficiently and securely to your doorstep.

FAQ:

Q: What is the brand name of this RF Coaxial Connector product?

A: The brand name of this product is SIPU.

Q: Where is this RF Coaxial Connector product manufactured?

A: This product is manufactured in China.

Q: What is the minimum order quantity for this RF Coaxial Connector?

A: The minimum order quantity for this product is 100 units.

Q: What are the payment terms accepted for purchasing this RF Coaxial Connector?

A: The accepted payment terms are L/C, T/T, and Western Union.

Q: What is the model number of this RF Coaxial Connector?

A: The model number of this product is SMP-KW2.
