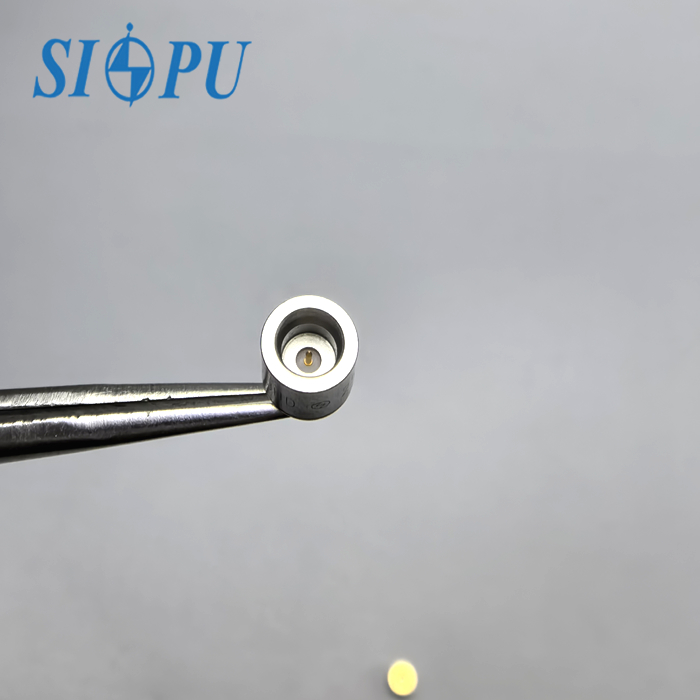

Designed For PCB Soldering Coaxial PCB Connector with ≤0.07dB Insertion Loss and Performance

Product Description:

The Connector SMP Male RF Coaxial PCB Mount is a high-quality male coaxial connector designed specifically for PCB soldering applications. It offers compact dimensions, excellent electrical performance, and high environmental resistance, making it an ideal choice for a wide range of RF applications.

With a characteristic impedance of 50Ω, this male RF connector ensures optimal signal transmission and minimal signal loss. It is built to withstand extreme conditions, with a temperature range of -65～+125℃, making it suitable for use in a variety of environments.

The Connector SMP Male RF Coaxial PCB Mount is highly durable, with a lifespan of up to 500 mating cycles. This ensures long-lasting performance and reliability, even in demanding applications.

Whether you are designing telecom equipment, test and measurement devices, or other RF systems, the Connector SMP Male RF Coaxial PCB Mount is a versatile and dependable choice. Its compact design allows for easy integration into PCB layouts, while its excellent electrical performance ensures consistent signal quality.

Overall, the Connector SMP Male RF Coaxial PCB Mount is a premium male RF connector that combines durability, performance, and environmental resistance in a single package. Trust this connector to deliver reliable connectivity for your RF applications.

Features:

• Product Name: Connector SMP Male RF Coaxial PCB Mount
• Insulation Resistance: ≥5000MΩ
• Type: Straight
• Frequency Range: DC-40GHz
• VSWR: ≤1.5

Technical Parameters:

Applications:

SIPU RF Coaxial Connector, model SMP-KW2, is a high-quality product designed for a wide range of applications in various industries. With a brand name that signifies reliability and excellence, this connector originates from China, ensuring competitive pricing and efficient manufacturing processes.

The minimum order quantity for the SIPU RF Coaxial Connector is 100 units, making it suitable for both small-scale projects and large-scale industrial applications. Payment terms accepted include L/C, T/T, and Western Union, providing flexibility for customers worldwide.

ISO9001-2017 and RoHS certifications guarantee the quality and environmental compliance of the product, meeting international standards. The packaging details involve secure carton packaging, ensuring the safe delivery of the connectors to customers.

When it comes to pricing, SIPU offers competitive rates for the SMP-KW2 RF Coaxial Connector, making it a cost-effective solution for various projects. The delivery time ranges from 3 to 6 weeks, allowing for efficient project planning and execution.

With a supply ability of 100,000 pieces per year, SIPU ensures a consistent availability of the RF Coaxial Connectors, meeting the demands of customers with varying project scales. The connectors have a male gender and a characteristic impedance of 50Ω, making them suitable for a wide range of applications.

The durability of the SIPU RF Coaxial Connector is rated at 500 times, ensuring long-lasting performance in challenging environments. Constructed from high-quality stainless steel, the connectors offer reliability and robustness, making them ideal for demanding applications.

Overall, the SIPU RF Coaxial Connector is a versatile product that caters to the needs of industries requiring high-quality coaxial PCB connectors. Whether used in telecommunications, aerospace, or industrial applications, the SMP-KW2 connector delivers excellent performance and reliability.

Support and Services:

Our Product Technical Support and Services for the RF Coaxial Connector include:

- Expert troubleshooting assistance to resolve any technical issues

- Guidance on installation, maintenance, and proper use of the connector

- Training resources and documentation to help customers maximize the performance of the product

- Product updates and notifications for any enhancements or changes

Packing and Shipping:

Product Packaging and Shipping:

Our RF Coaxial Connector product is carefully packaged to ensure safe delivery to our customers. Each connector is individually wrapped in protective material to prevent any damage during shipping. The connectors are then placed in a sturdy cardboard box with ample cushioning to further protect them during transit.

For shipping, we partner with reliable courier services to ensure timely delivery of our products. Orders are typically dispatched within 1-2 business days after payment confirmation. Customers will receive a tracking number to monitor the progress of their shipment.

FAQ:

Q: What is the brand name of this RF Coaxial Connector?

A: The brand name is SIPU.

Q: Where is the RF Coaxial Connector manufactured?

A: The product is manufactured in China.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity is 100 units.

Q: What are the accepted payment terms for purchasing this RF Coaxial Connector?

A: The accepted payment terms are L/C, T/T, and Western Union.

Q: What is the model number of this RF Coaxial Connector?

A: The model number is SMP-KW2.
