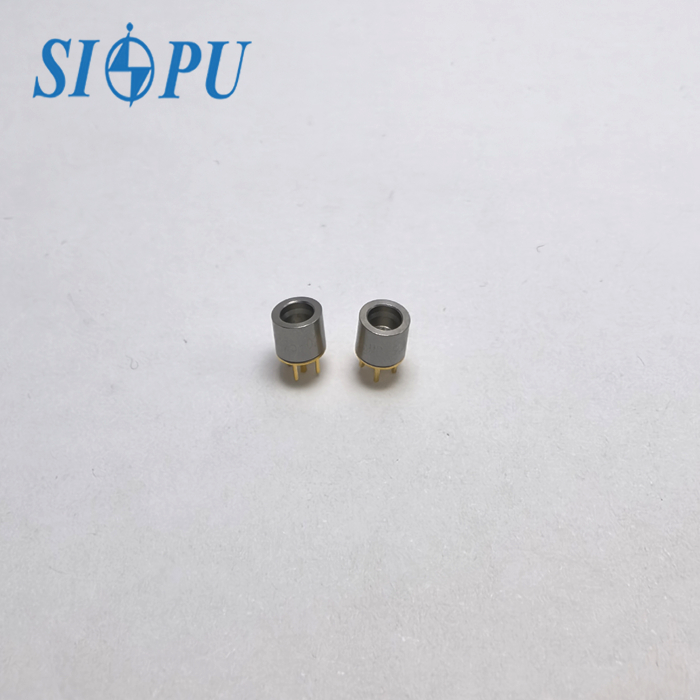

Passivation And Gold Plating RF Coaxial Connector with 50Ω Characteristic Impedance for Optimal Signal Transmission

Passivation And Gold Plating RF Coaxial Connector with 50Ω Characteristic Impedance for Optimal Signal Transmission

gold plated RF coaxial connector

50Ω impedance RF connector

passivation RF connector for signal transmission

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001-2017 RoHS

Model Number:

SMP-KW2

Contact Us
Request A Quote
Product Details
Dielectric Withstanding Voltage:
500V
Product Name:
Connector SMP Male RF Coaxial PCB Mount
Characteristic Impedance:
50Ω
Insertion Loss:
≤0.07dB
Salt Spray Resistance:
96 Hours, Exceeding Standard Connector Durability
Insulation Resistance:
≥5000MΩ
Application Areas:
Antennas, Broadband Systems, Test And Measurement, Quantum Computing, And Other High-frequency Electronic Modules
Interface Features:
Smooth Bore, Designed To Mate With SMP-K (female) Connectors With Low Insertion And Withdrawal Forces
Highlight:

gold plated RF coaxial connector

,

50Ω impedance RF connector

,

passivation RF connector for signal transmission

Payment & Shipping Terms
Minimum Order Quantity
100
Price
Discuss
Packaging Details
Carton
Delivery Time
3-6 Weeks
Payment Terms
L/C, T/T, Western Union
Supply Ability
100000pcs/year
Product Description

Product Description:

The Connector SMP Male RF Coaxial PCB Mount is a high-quality product designed for reliable and efficient RF signal connections. This PCB male connector offers exceptional performance with low insertion loss of ≤0.07dB, ensuring minimal signal degradation during transmission.

Constructed from durable stainless steel material, this male to male RF connector is built to last, capable of withstanding 500 insertion cycles without compromising its functionality or signal integrity. The sturdy construction of the connector ensures a secure and stable connection for your RF applications.

With a VSWR of ≤1.5, this PCB male connector provides excellent impedance matching, reducing signal reflections and ensuring optimal signal transfer efficiency. It is ideal for applications that require high-frequency transmission with minimal signal loss.

Whether you are building communication systems, test equipment, or other RF applications, the Connector SMP Male RF Coaxial PCB Mount offers a reliable and durable solution for your connectivity needs. Its compact design and easy PCB mounting make it suitable for various PCB-based RF circuit designs.

Experience seamless RF signal connections with the Connector SMP Male RF Coaxial PCB Mount, a high-performance connector that delivers exceptional signal integrity and durability. Upgrade your RF systems with this reliable male to male RF connector for improved performance and reliability.


Features:

  • Product Name: RF Coaxial Connector
  • Plating: Passivation And Gold
  • Interface Features: Smooth bore, designed to mate with SMP-K (female) connectors with low insertion and withdrawal forces
  • Durability: 500 Times
  • Gender: Male
  • Dielectric Withstanding Voltage: 500V

Technical Parameters:

Parameter Value
Application Areas Antennas, broadband systems, test and measurement, quantum computing, and other high-frequency electronic modules
Material Stainless Steel
Frequency Range DC-40GHz
Gender Male
Characteristic Impedance 50Ω
VSWR ≤1.5
Dielectric Withstanding Voltage 500V
Interface Features Smooth bore, designed to mate with SMP-K (female) connectors with low insertion and withdrawal forces
Plating Passivation And Gold
Product Name Connector SMP Male RF Coaxial PCB Mount

Applications:

This RF Coaxial Connector is certified with ISO9001-2017 and RoHS compliance, assuring customers of its quality and adherence to environmental standards. The packaging details involve carton packaging for safe transportation and storage. The price of the product can be discussed based on the order quantity and specific requirements of the customer.

With a delivery time of 3-6 weeks, customers can expect timely receipt of their orders. The supply ability of 100,000pcs/year ensures a steady availability of the product in the market. The temperature range of -65~+125℃ and material composition of stainless steel make the connector suitable for a wide range of environmental conditions.

The SIPU RF Coaxial Connector, suitable for antennas, broadband systems, test and measurement applications, quantum computing, and other high-frequency electronic modules, offers reliable performance. Its insulation resistance of ≥5000MΩ ensures stable connectivity and signal transmission. Whether it is for RF PCB connectors or coaxial PCB connector needs, this product is a dependable choice for various industries and projects.


Support and Services:

Our Product Technical Support and Services for the RF Coaxial Connector include:

- Expert troubleshooting assistance for installation and connection issues

- Guidance on product compatibility and integration with other devices

- Product documentation and manuals for reference and setup

- Warranty information and support for returns or exchanges

- Training sessions and workshops for customers to better understand the product


Packing and Shipping:

Product Packaging and Shipping:

The RF Coaxial Connector product is carefully packaged to ensure safe delivery to our customers. Each connector is individually wrapped in protective material to prevent scratches and damage during transit. The connectors are then placed in a sturdy cardboard box with ample cushioning to absorb any impact that may occur during shipping.

Shipping Method:

We ship our RF Coaxial Connector products using reputable carriers such as FedEx, UPS, or DHL. Customers can choose their preferred shipping method during the checkout process. Once the order is processed, customers will receive a tracking number to monitor the shipment's progress.


FAQ:

Q: What is the brand name of this RF Coaxial Connector product?
A: The brand name is SIPU.

Q: Where is this RF Coaxial Connector product manufactured?
A: It is manufactured in China.

Q: What is the minimum order quantity for this RF Coaxial Connector?
A: The minimum order quantity is 100 pieces.

Q: What are the accepted payment terms for purchasing this RF Coaxial Connector?
A: The accepted payment terms are L/C, T/T, and Western Union.

Q: What is the model number of this RF Coaxial Connector?
A: The model number is SMP-KW2.
