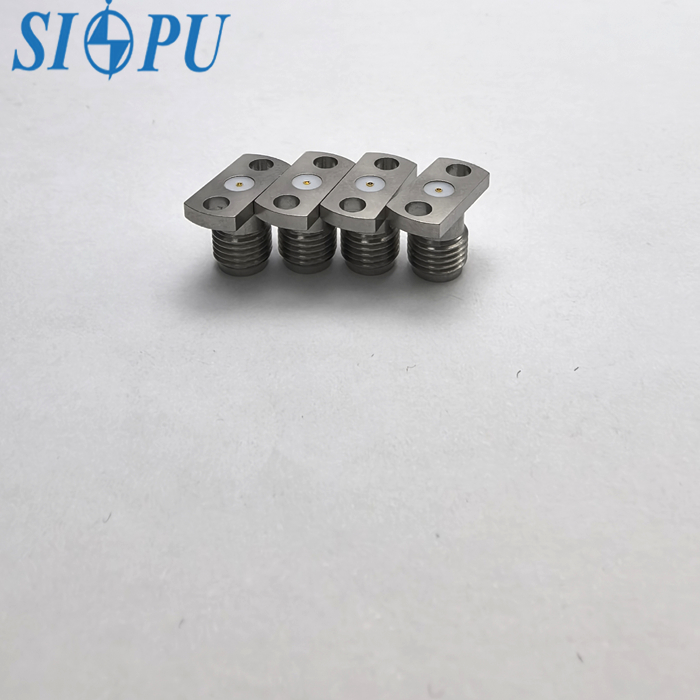

DC-18GHz High Frequency Insertion Loss≤0.05dB

DC-18GHz High Frequency Insertion Loss≤0.05dB

SMA RF connector high frequency

SMA connector low insertion loss

DC-18GHz RF connector

Place of Origin:

China

Brand Name:

SIPU

Certification:

ISO9001-2017, RoHS, CE

Model Number:

SMA-KK1

Contact Us
Request A Quote
Product Details
Socket Depth:
2.8 Mm
Electrical Performance:
Reliable
Temperature Range:
-65~+125℃
Insulation Resistance:
≥5000MΩ
Contact Resistance - Center Conductor:
≤3.0mΩ
Inner Conductor Diameter:
∅0.4 Mm
Center Conductor Material:
Beryllium Bronze, Gold Plated
Product Name:
Connector – Flange Mount Receptacle SMA Female RF Coaxial
Highlight:

SMA RF connector high frequency

,

SMA connector low insertion loss

,

DC-18GHz RF connector

Payment & Shipping Terms
Minimum Order Quantity
100
Price
Discuss
Packaging Details
Carton
Delivery Time
6-8Weeks
Payment Terms
L/C, T/T, Western Union
Supply Ability
100000pcs/yesr
Product Description

Product Description:

The SMA RF Connector is a high-quality product designed for reliable connections in radio frequency applications. This connector is part of the SMA RF Connector product category, known for its exceptional performance and durability.

One of the key features of the SMA RF Connector is its dielectric withstanding voltage of 1000V, ensuring safe and efficient operation in various environments. The outer conductor material of this connector is stainless steel, passivated to enhance its resistance to corrosion and ensure long-term reliability.

With a VSWR of ≤1.05+0.012F(GHz), the SMA RF Connector offers excellent signal transmission capabilities, minimizing signal loss and ensuring high-quality audio frequency connections. The compact size of this connector makes it ideal for applications where space is limited, providing a convenient and efficient solution for RF connectivity needs.

Additionally, the contact resistance of the center conductor is ≤3.0mΩ, ensuring low electrical resistance and reliable signal transmission. This feature contributes to the overall performance of the connector, making it suitable for demanding RF applications where precision and accuracy are essential.


Features:

  • Product Name: SMA RF Connector
  • Characteristic Impedance: 50Ω
  • Inner Conductor Diameter: ∅0.4 mm
  • Contact Resistance - Outer Conductor: ≤2.0mΩ
  • Insulation Resistance: ≥5000MΩ
  • Mechanical Life: Long
  • Material: Stainless Steel

Technical Parameters:

Insulation Resistance ≥5000MΩ
Temperature Range -65~+125℃
Durability Cycles 500 Cycles
Product Category SMA RF Connector
Frequency Range DC-18GHz
Product Name Connector – Flange Mount Receptacle SMA Female RF Coaxial
Durability 500 Times
Socket Depth 2.8 mm
VSWR ≤1.05+0.012F(GHz)
Type Straight

Applications:

SIPU SMA RF Connector, model number SMA-KK1, is a versatile and reliable component used in a wide range of applications due to its high-quality construction and performance. Here are some product application occasions and scenarios where the SIPU SMA RF Connector can be effectively utilized:

- Telecommunications: The SMA RF Connector is perfect for use in telecommunications equipment such as antennas, base stations, and signal boosters. Its compact size and high frequency capabilities make it ideal for ensuring strong and stable connections in communication systems.

- Wireless Networking: The SMA RF Connector is commonly used in wireless networking devices like routers, access points, and repeaters. Its characteristic impedance of 50Ω and stainless steel material ensure reliable signal transmission for seamless connectivity.

- Test and Measurement Equipment: The SMA RF Connector is well-suited for test and measurement applications, including spectrum analyzers, oscilloscopes, and signal generators. With its long mechanical life and passivation plating, it provides durability and precision in demanding testing environments.

- Industrial Automation: The SMA RF Connector can be integrated into industrial automation systems for data transmission and signal processing. Its ISO9001-2017, RoHS, and CE certifications guarantee compliance with industry standards, while its high supply ability of 100000pcs/year ensures consistent availability for bulk orders.

With a minimum order quantity of 100 units, flexible payment terms (L/C, T/T, Western Union), and packaging details in cartons, the SIPU SMA RF Connector offers convenience and cost-effectiveness for businesses looking to enhance their connectivity solutions. The price of the product can be discussed based on the order quantity and specific requirements of the customer.

Overall, the SIPU SMA RF Connector is a reliable and high-performance component suitable for various product categories requiring a two-hole flange design, compact size, and high-frequency capabilities. Its origin in China reflects a commitment to quality manufacturing, while its material and plating ensure long-lasting performance in diverse applications.


Support and Services:

Our Product Technical Support and Services for the SMA RF Connector include:

- Expert technical assistance for installation and troubleshooting

- Access to online resources, such as user manuals and technical documentation

- Warranty coverage and product repair services

- Training programs and workshops to enhance product knowledge and usage


Packing and Shipping:

Product Name: SMA RF Connector

Description: High-quality SMA RF connector for reliable signal transmission.

Features:

  • Gold-plated contacts for superior conductivity
  • Durable construction for long-lasting performance
  • Compatible with SMA connectors

Package Includes:

  • 1 x SMA RF Connector
  • Product Manual

Shipping Information:

  • Shipping Method: Standard Shipping
  • Shipping Time: 3-5 business days
  • Shipping Cost: $5.99

FAQ:

Q: What is the brand name of this SMA RF Connector?

A: The brand name is SIPU.

Q: Where is this SMA RF Connector manufactured?

A: The product is manufactured in China.

Q: What is the minimum order quantity for this SMA RF Connector?

A: The minimum order quantity is 100 units.

Q: What are the accepted payment terms for purchasing this SMA RF Connector?

A: Payment can be made through L/C, T/T, or Western Union.

Q: What certifications does the SMA RF Connector (Model Number: SMA-KK1) have?

A: The SMA RF Connector is certified with ISO9001-2017, RoHS, and CE.
