Insulation Resistance ≥5000MΩ TNC Coaxial Connector 50Ω Characteristic Impedance for Optimal Signal Transmission

Product Description:

A TNC connector is a type of male to male RF connector commonly used in radio frequency applications for connecting coaxial cables. This TNC connector product summary highlights key attributes and specifications of the product.

Dielectric Withstanding Voltage: 1500V

Plating: Nickle

Center Conductor: ≤2.0mΩ

Durability: 500 Times

VSWR: ≤1.4

The TNC connector is designed to provide reliable and secure connections in RF applications. With a dielectric withstanding voltage of 1500V, this connector ensures safe operation even in high voltage environments. The nickle plating not only enhances the durability of the connector but also provides excellent corrosion resistance, making it suitable for various indoor and outdoor applications.

The center conductor of the TNC connector has a low resistance of ≤2.0mΩ, ensuring efficient signal transmission with minimal loss. This makes it ideal for high-frequency applications where signal integrity is crucial. Additionally, with a durability rating of 500 times, this connector is built to withstand frequent mating and unmating cycles without compromising performance.

When it comes to signal quality, the TNC connector offers a low VSWR (Voltage Standing Wave Ratio) of ≤1.4. This indicates that the connector efficiently transfers RF energy without causing signal reflections or loss, resulting in reliable and consistent performance.

Whether you are looking to upgrade your existing RF system or build a new one, the TNC connector is a versatile choice. Its male coaxial connector design allows for easy and secure connections with TNC coaxial cables, ensuring a stable and uninterrupted RF signal transmission.

In conclusion, the TNC connector is a reliable and high-performance solution for various RF applications. With its robust construction, excellent electrical properties, and user-friendly design, this connector provides the connectivity needed for smooth and efficient operation in demanding environments.

Features:

• Product Name: TNC Connector
• Sealing Ring: Silicon Rubber
• Durability: 500 Times
• Insertion Loss: ≤0.1dB
• Frequency Range: DC-11GHz
• Product Category: TNC Connector

Technical Parameters:

Applications:

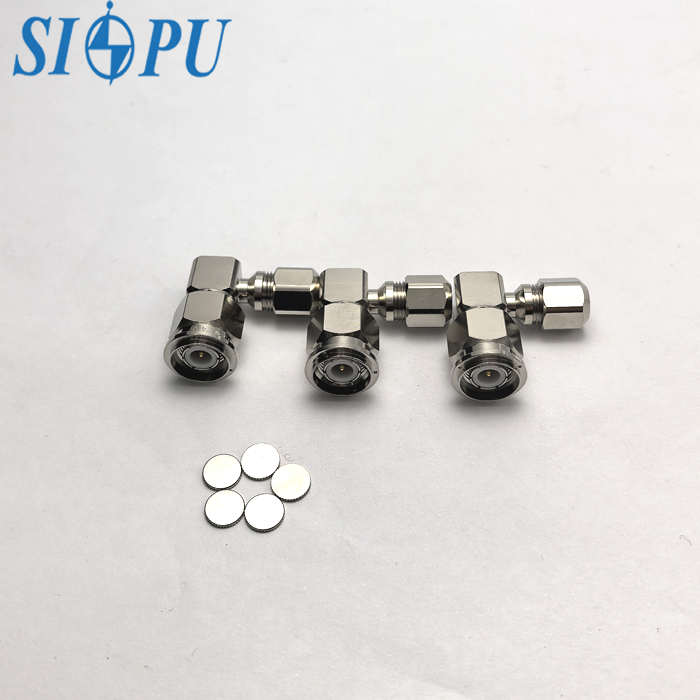

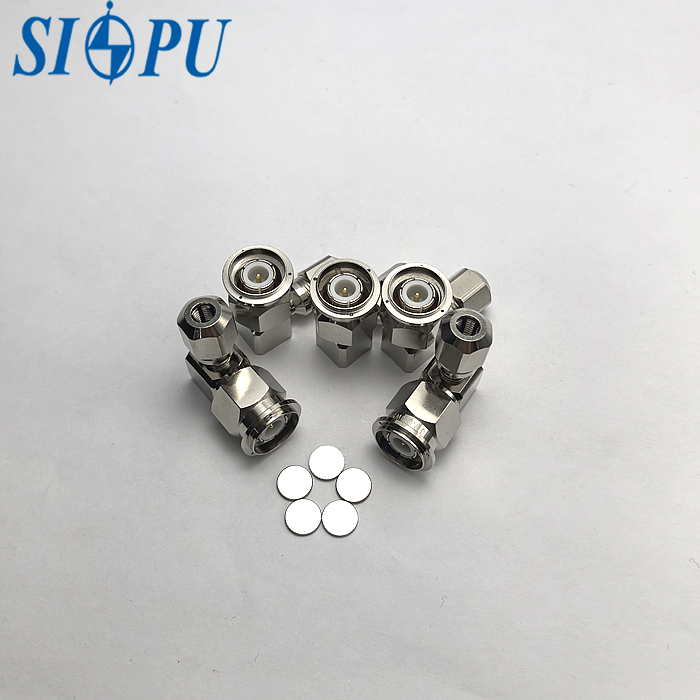

SIPU TNC Male RF Coaxial Connector – For RG-58A/U Cable is a high-quality product designed for various applications across different industries. With its durable construction and reliable performance, this connector is suitable for a wide range of scenarios. Below are some product application occasions and scenarios where the TNC Connector can be effectively utilized:

Telecommunications: The TNC Male RF Coaxial Connector is commonly used in telecommunications equipment, such as antennas, base stations, and communication devices. Its male RF connector design ensures seamless connectivity and optimal signal transmission.

Broadcasting: In the broadcasting industry, the TNC Connector is ideal for connecting equipment such as transmitters, receivers, and signal boosters. Its coaxial connector male to male configuration makes it easy to set up and maintain broadcasting systems.

Wireless Networks: For wireless network installations and configurations, the TNC Male RF Coaxial Connector is a reliable choice. Its TNC male connector design provides a secure connection for antennas and other network components.

Industrial Applications: The durability of the TNC Connector makes it suitable for harsh industrial environments. Whether used in manufacturing equipment, automation systems, or testing devices, this connector can withstand rugged conditions.

Security Systems: Security and surveillance systems often require high-quality connectors for seamless operation. The TNC Male RF Coaxial Connector is a dependable choice for connecting CCTV cameras, access control systems, and security monitoring equipment.

Originating from China, the SIPU TNC Connector (Model Number: TNC-KKF-1) adheres to strict quality standards and certifications, including ISO9001, RoHS, and CE. The product comes with a minimum order quantity of 100 units, with flexible payment terms such as L/C, T/T, and Western Union.

Each TNC Connector is carefully packaged in cartons to ensure safe delivery. The pricing of the product can be discussed based on the order quantity and specific requirements. With a supply ability of 120,000 pieces per year, customers can rely on the timely delivery of their orders within 6-8 weeks.

Whether you need a connector for telecommunications, broadcasting, wireless networks, industrial applications, or security systems, the SIPU TNC Male RF Coaxial Connector is a versatile and durable solution. Its nickel plating and silicon rubber sealing ring ensure long-lasting performance, with a durability of up to 500 times.

Upgrade your connectivity with the TNC Male RF Coaxial Connector from SIPU, offering reliable and efficient solutions for various product categories and applications.

Support and Services:

The TNC Connector product offers comprehensive Product Technical Support and Services to ensure smooth operation and optimal performance. Our expert technical support team is available to assist with any product-related inquiries, troubleshooting, and guidance on installation and usage. Additionally, we provide maintenance services, product upgrades, and repair services to keep your TNC Connector product functioning at its best. Our commitment to customer satisfaction extends to ensuring that you have access to the support and services you need to maximize the benefits of your TNC Connector product.

Packing and Shipping:

Product Packaging for TNC Connector:

The TNC Connector is carefully packaged in a sturdy cardboard box to ensure safe delivery.

Shipping Information:

Orders are typically processed and shipped within 1-2 business days. We offer standard shipping options as well as expedited shipping for faster delivery.

FAQ:

Q: What is the brand name of this TNC Connector?

A: The brand name is SIPU.

Q: Where is the TNC Connector manufactured?

A: The TNC Connector is manufactured in China.

Q: What is the minimum order quantity for the TNC Connector?

A: The minimum order quantity is 100 units.

Q: What are the accepted payment terms for purchasing the TNC Connector?

A: The accepted payment terms are L/C, T/T, and Western Union.

Q: Does the TNC Connector come with any certifications?

A: Yes, the TNC Connector is certified with ISO9001, RoHS, and CE.
