Name: SSMB Male RF Coaxial Connector – Flange Mount Plug
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: SSMB-K2Y
Availability: InStock

Home > Products > SMB SSMB Connector >

SSMB Male RF Coaxial Connector – Flange Mount Plug

SSMB male flange mount connector

RF coaxial plug connector

SMB SSMB flange mount plug

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001, RoHS, CE

Model Number:

SSMB-K2Y

Request A Quote

SSMB Male RF Coaxial Connector – Flange Mount Plug

Product Details

Product Name:

SSMB Male RF Coaxial Connector

Gender:

Male

Type:

Straight

Material:

Brass

Plating:

Gold

Insulating Medium:

PTFE

Durability:

500 Times

Highlight:

SSMB male flange mount connector

RF coaxial plug connector

SMB SSMB flange mount plug

Payment & Shipping Terms

Minimum Order Quantity

Price

Discuss

Packaging Details

master carton

Delivery Time

5-8week days

Payment Terms

L/C, T/T, Western Union

Supply Ability

100000pcs/year

SubMiniature Build Connector 403 Status Code The Ultimate Solution for Performance

Get Best Price

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Get Best Price

SSMB Male RF Coaxial Connector – Straight Type, PCB Solder Mount

Get Best Price

SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount

Get Best Price

86-029-8886-0801

Contact Now

Product Description

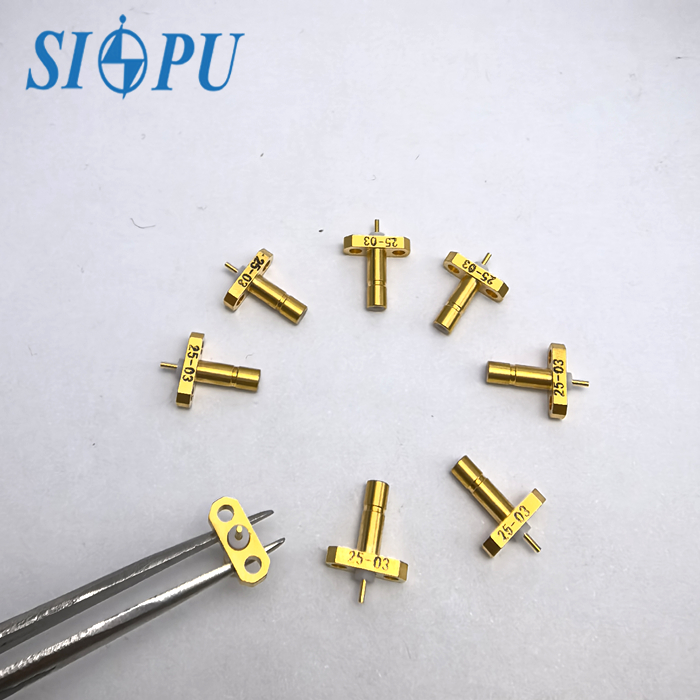

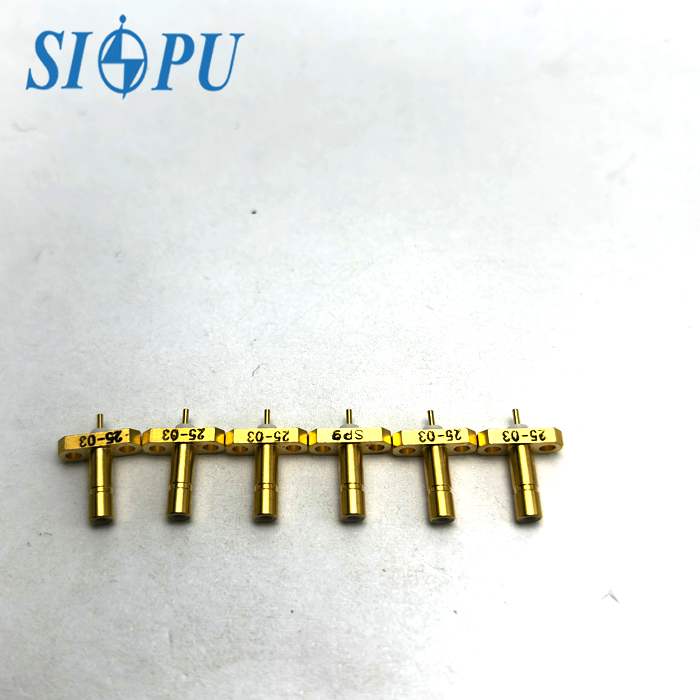

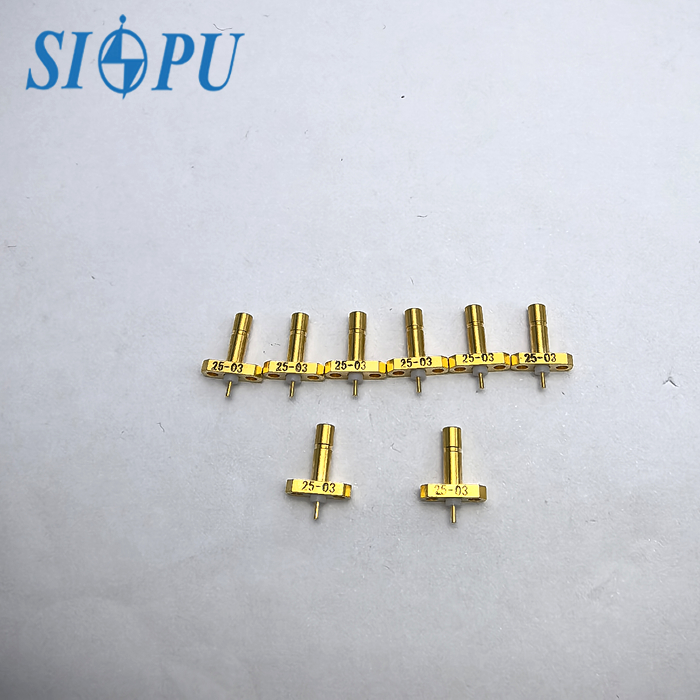

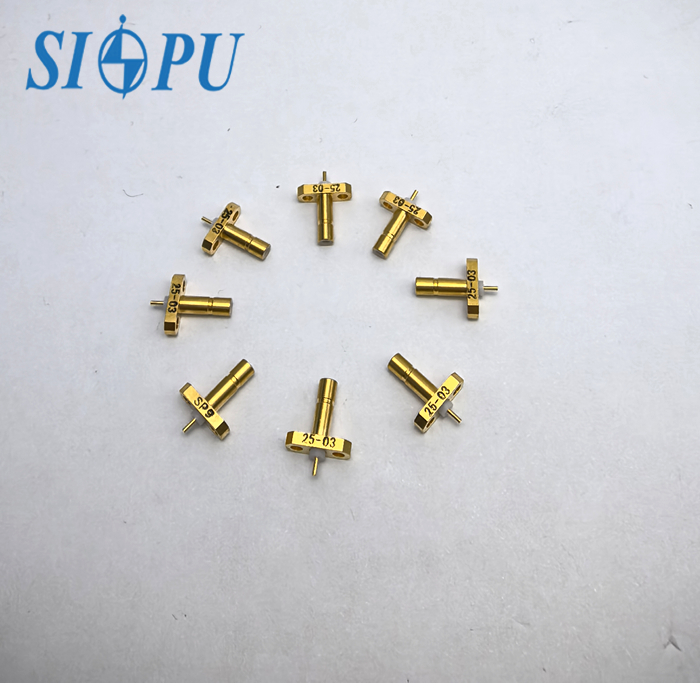

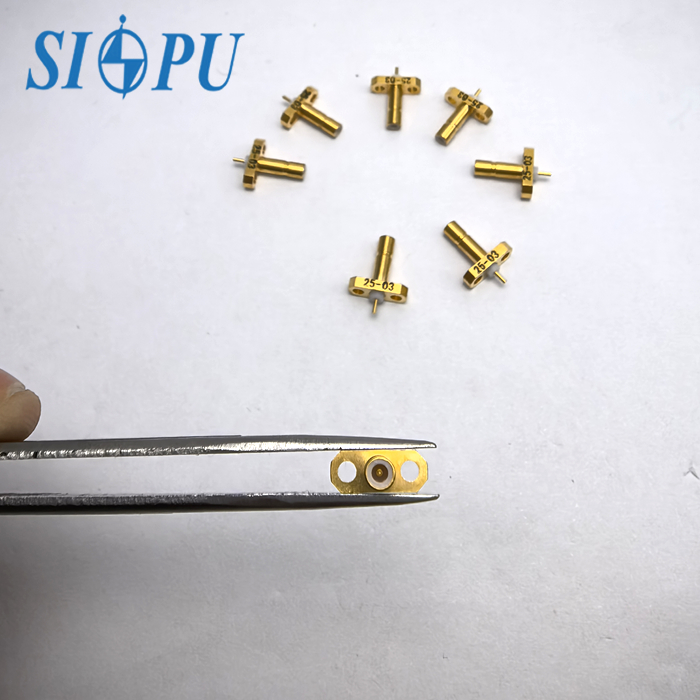

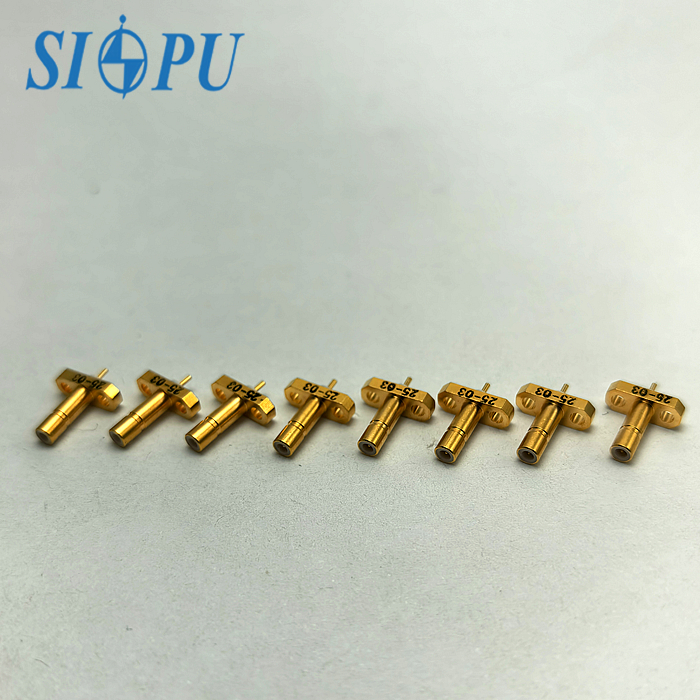

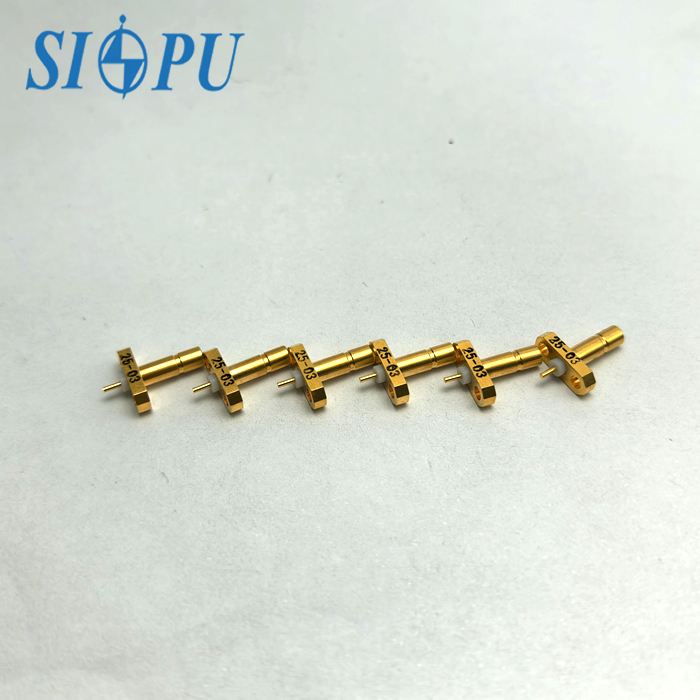

SSMB Male RF Coaxial Connector – Flange Mount Plug

SSMB Male RF Coaxial Connector – Flange Mount Plug 0

Product Overview:

The SSMB series is a compact, snap-on (push-in) style miniature RF coaxial connector designed for high-frequency circuit applications. Its small form factor and quick-connect mechanism make it suitable for dense layouts and precision signal paths.

Application Areas:

Commonly used in electronic instruments, radio equipment, and compact RF systems requiring lightweight, space-saving interconnect solutions.

Product Features:

Flange-mounted plug with screw fastening for secure installation
Designed for lightweight, anti-vibration, and space-efficient use
Easy to install and maintain
Ideal for high-frequency coaxial cable termination in equipment or panel-mounted designs

Key Technical Specifications

Electrical Property			Temperature Range	-55～+155℃
Characteristic Impedance		50Ω	Frequency Range	DC-3GHz
Dielectric Withstanding Voltage		500V	VSWR	≤1.35
Insulation Resistance		≥1000MΩ	Insertion Loss	≤0.06dB
Contact Resistanc	Center Conductor	≤5.0mΩ	Mechanical Property
Contact Resistanc	Outer Conductor	≤2.5mΩ	Durability	500 Cycles

Materials & Finish

Center Conductor

Beryllium Bronze, Gold Plated

Insulating Medium

PTFE

Outer Conductor

Brass, Gold Plated

Sealing Ring

N/A

SSMB Male RF Coaxial Connector – Flange Mount Plug 2
