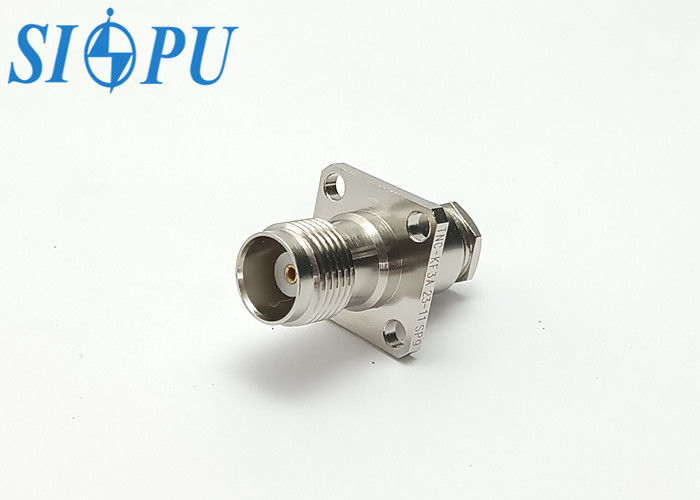

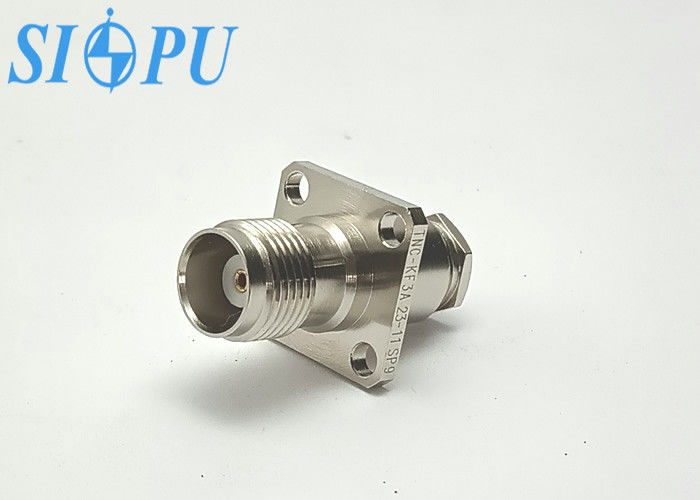

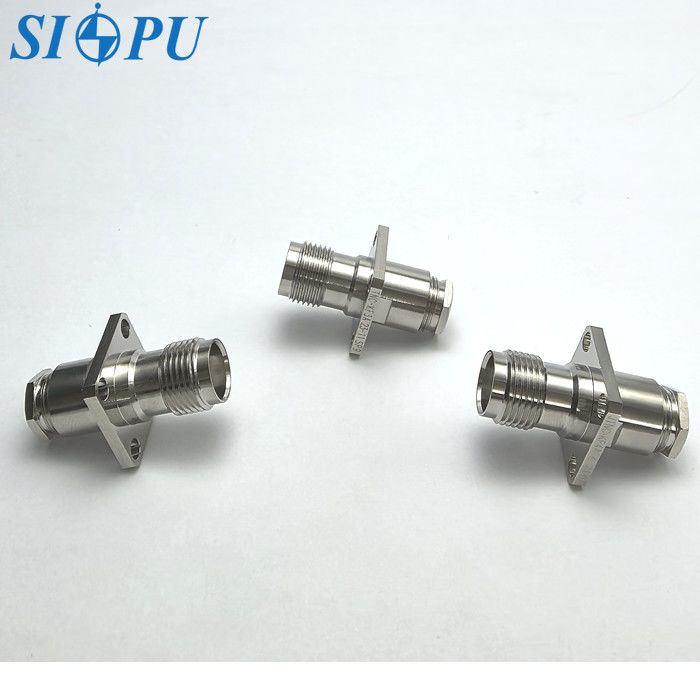

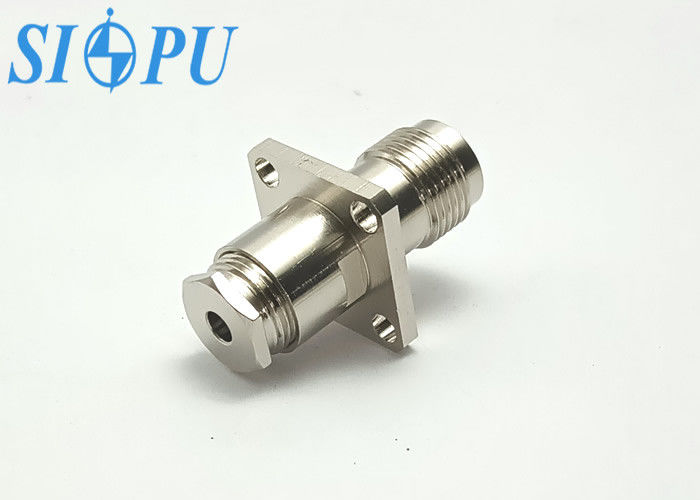

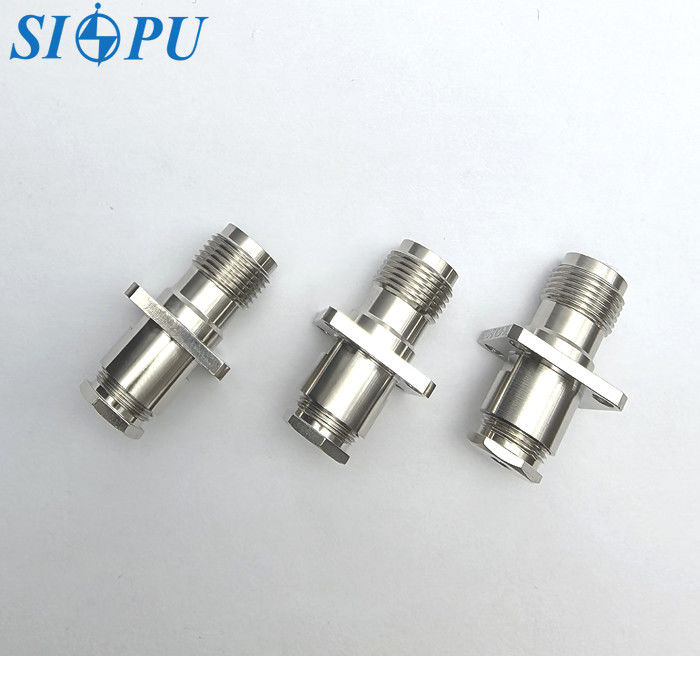

Name: TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: TNC-KF4A-1
Availability: InStock

Home > products > TNC Connector >

TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)

TNC RF Coax Connector

Coax TNC Female Connector

Flange RF Coax Connector

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001, RoHS, CE

Model Number:

TNC-KF4A-1

Request A Quote

Product Details

Product Name:

TNC Female RF Coaxial Connector – Flange Mount, Compatible With SFF-50-2-2 Cable (Model: TNC-KF4A-1)

Gender:

Female

Type:

Straight

Material:

Brass

Plating:

Nickle

Insulating Medium:

PTFE

Durability:

500 Times

Highlight:

TNC RF Coax Connector

Coax TNC Female Connector

Flange RF Coax Connector

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Discuss

Packaging Details

Carton

Delivery Time

6-8weeks

Payment Terms

L/C, T/T, Western Union

Supply Ability

120000pcs/year

TNC Female RF Coaxial Connector – Flange Mount, Compatible with RG178/U Cable

Get Best Price

TNC Female RF Coaxial Connector – Compatible with RG316/U Cable

Get Best Price

TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)

Get Best Price

TNC Female RF Coaxial Connector – Flange Mount, Compatible with RG142/U Cable

Get Best Price

86-029-8886-0801

Contact Now

Product Description

TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)

Product Overview

The TNC series is a small to medium-power RF coaxial connector with a threaded coupling structure, developed in accordance with MIL-C-39012 and IEC 60169-17 standards. It features wide frequency bandwidth, excellent electrical performance, and high connection reliability. TNC connectors are fully interchangeable with similar international products.

Scope of Application

Communication systems

Radio equipment

Electronic instrumentation

Product Features

Four-hole flange mounting structure

Compatible with SFF-50-2-2 RF coaxial cable

Reliable threaded connection with strong vibration resistance

Wide operating bandwidth

Excellent and stable electrical performance

Product Specifications

TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1) 0

Important Technical Parameters

Electrical property			Temperature range	-55～+165℃
Characteristic impedance		50Ω	Frequency range	DC-11GHz
Dielectric withstanding voltage		1500V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤2.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤0.2mΩ	Durability	500times
