SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable

SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable

Bent RF Coaxial Connector

SBMA RF Coaxial Connector

Semi Steel Cable RF Coaxial Connector

Place of Origin:

China

Brand Name:

SIPU

Certification:

ISO9001, RoHS, CE

Model Number:

SBMA-KWFB2G-1

Contact Us
Request A Quote
SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable
Product Details
Highlight:

Bent RF Coaxial Connector

,

SBMA RF Coaxial Connector

,

Semi Steel Cable RF Coaxial Connector

Payment & Shipping Terms
Minimum Order Quantity
50
Packaging Details
master carton
Delivery Time
5-8work days
RELATED PRODUCTS
Good price BMA Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable online

BMA Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Get Best Price
Good price BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable online

BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable

Get Best Price
Good price SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable online

SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable

Get Best Price
Good price BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable online

BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Get Best Price
Contact Us
86-029-8886-0801
Contact Now
Product Description

SBMA Female RF Coaxial Connector (Right-Angle · Flange Mount · Compatible with #2 Semi-Flexible/Semi-Rigid Cables)

Product Overview

The SBMA connector is a low-power blind-mate RF coaxial connector, serving as the miniaturized upgraded version of the BMA series. Its core advantages lie in the combination of compact size and floating flange design—the former meets the strict space requirements of high-density assemblies, while the latter provides a flexible connection solution for modular integration of complex systems, especially suitable for scenarios requiring rapid deployment and maintenance.

Application Scenarios

Specifically designed for blind-mate connections in cabinets, chassis, and various high-density modular components. It efficiently handles environments with limited internal space and dense connection points, ensuring stable and reliable signal transmission between modules.

Key Features

  • Two-hole floating flange mount: Compensates for installation errors through the floating structure, enhancing connection stability and adapting to assembly requirements under different working conditions.
  • Right-angle configuration: Optimizes wiring direction in confined spaces, reduces cable bending stress, and lowers the risk of signal loss.
  • Broad cable compatibility: Supports connections with #2 semi-flexible and semi-rigid cables, balancing wiring flexibility and structural stability.
  • Compact wideband design: Maintains wide frequency bandwidth performance in a small form factor, balancing space utilization and signal transmission quality.
  • Floating connection mechanism: Enables quick alignment in limited spaces; even with slight installation deviations, it can still ensure reliable mating, significantly reducing the difficulty of blind-mate operations.

Product Specifications

            SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable 0

Important Technical Parameters





Electrical property



Temperature range

 -55～+125℃



Characteristic impedance



 50Ω

Frequency range

 DC-18GHz



Dielectric withstanding voltage



 675V

VSWR

 ≤1.06+0.015F(GHz)



Insulation resistance



 ≥5000MΩ

Insertion loss

 ≤0.08√F(GHz)dB



Contact resistance



Center conductor

 ≤8.0mΩ

Mechanical property

Outer conductor

 ≤3.0mΩ

Durability

 500times



Materials and Surface Treatment



Center conductor



Beryllium bronze, gold



Insulating medium



PTFE



Outer conductor



Brass, gold plating

Sealing ring

/



Product Image Gallery

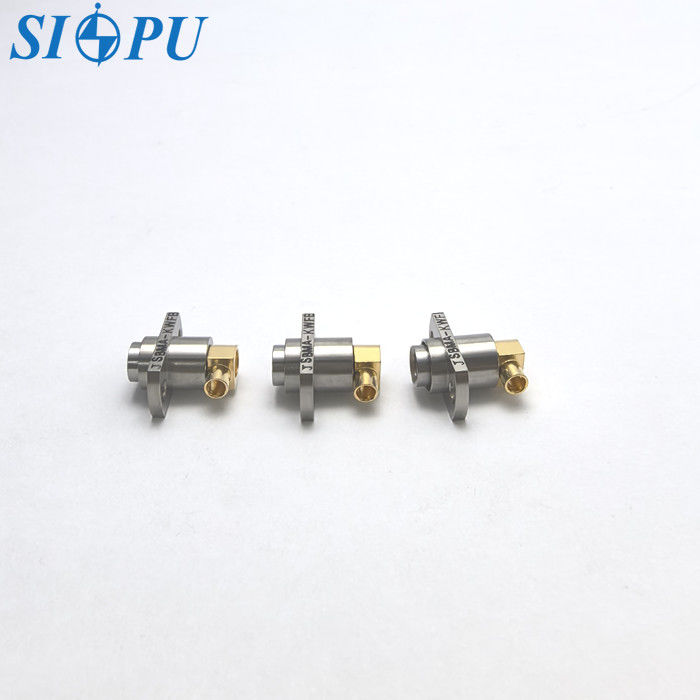

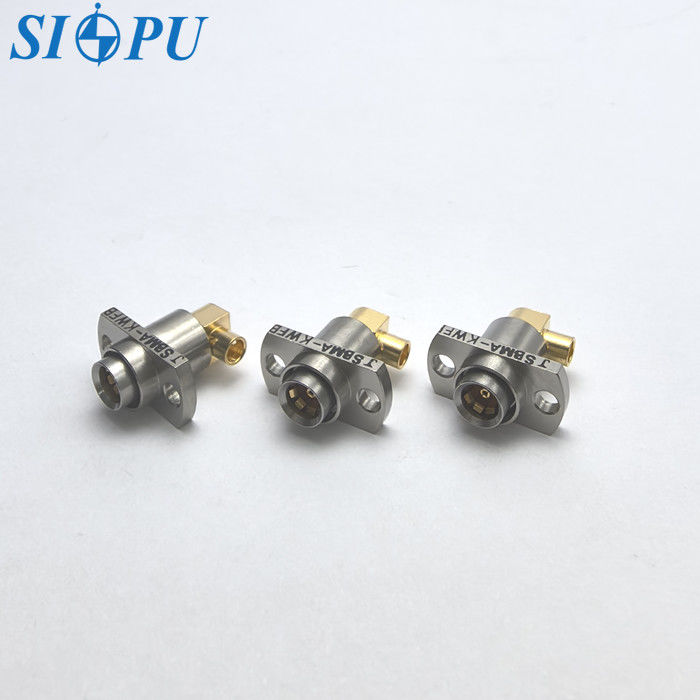

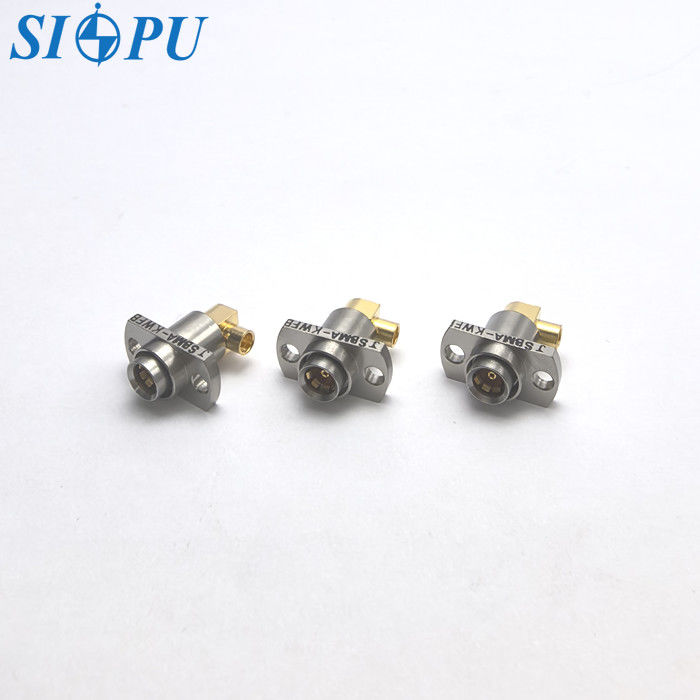

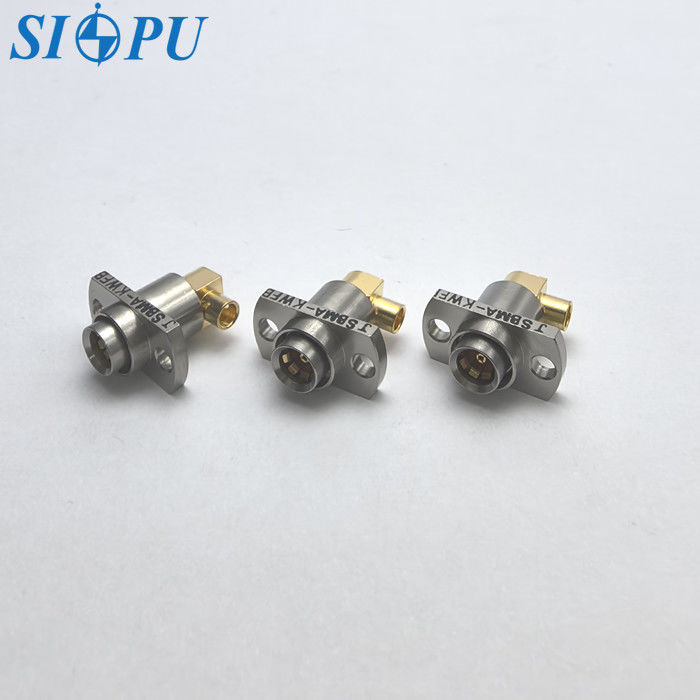

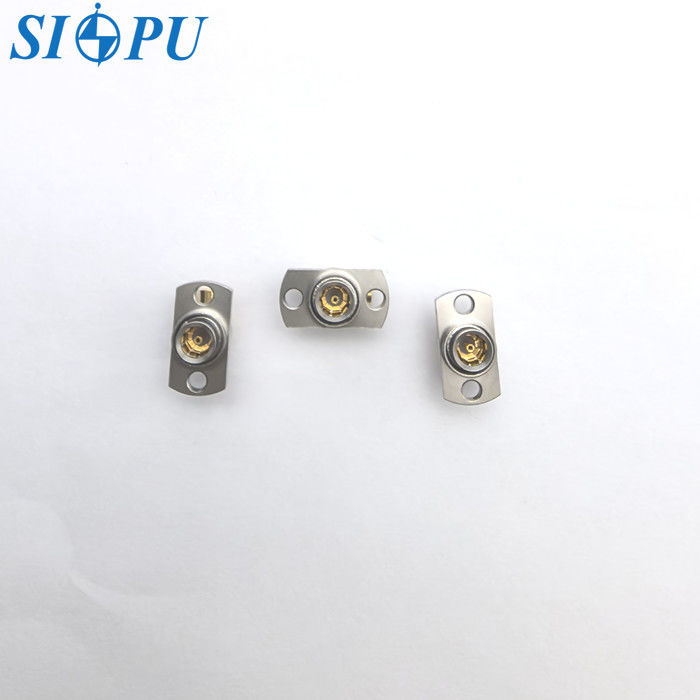

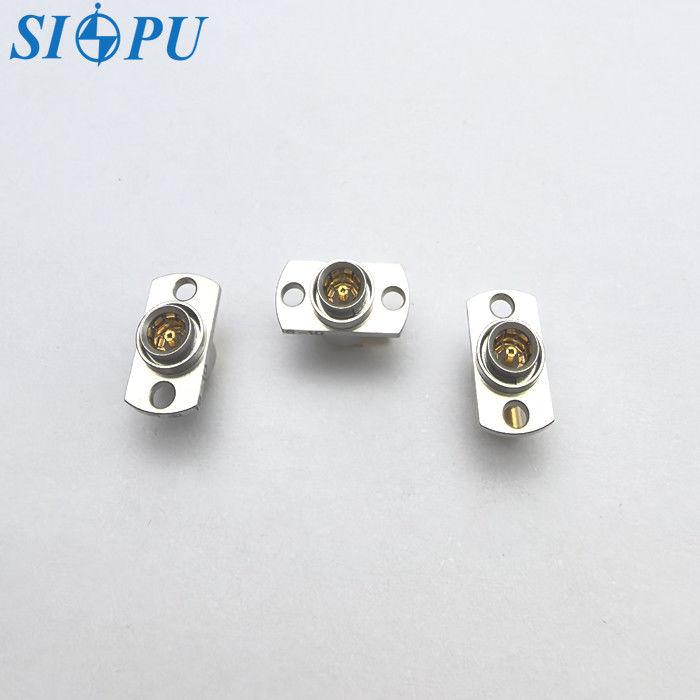

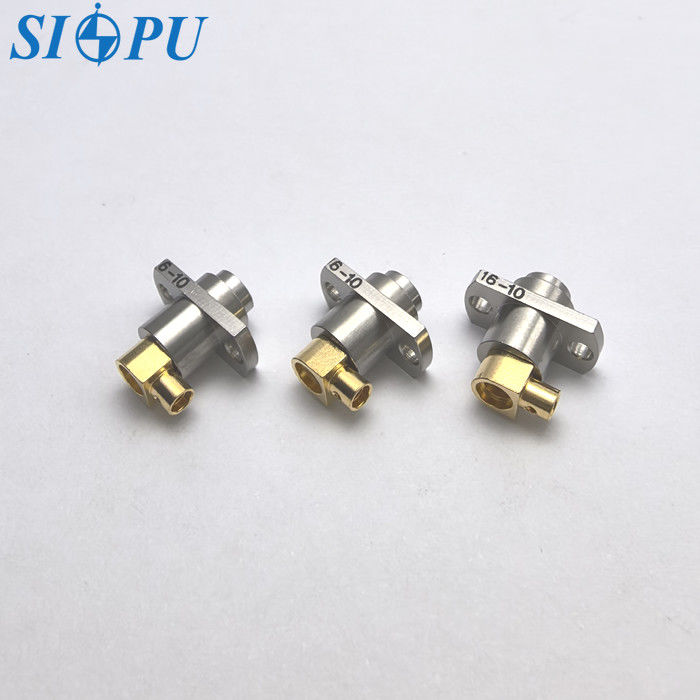

SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable 1SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable 2SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable 3SBMA female coax connector – Right-Angle,flange design, Compatible with 2# Semi-Flexible or Semi-Rigid Cable 4
