Name: BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: BMA-JY3Y
Availability: InStock

Home > products > BMA SBMA Connector >

BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Threaded RF Coaxial Connector

BMA Male RF Coaxial Connector

RG316/U Cable RF Coaxial Connector

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001, RoHS, CE

Model Number:

BMA-JY3Y

Request A Quote

BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Product Details

Product Name:

BMA Male RF Coaxial Connector – Threaded Mount, Compatible With RG316/U Cable

Gender:

Straight

Type:

Male

Material:

Brass

Plating:

Gold

Characteristic Impedance:

50Ω

Durability:

500 Times

Highlight:

Threaded RF Coaxial Connector

BMA Male RF Coaxial Connector

RG316/U Cable RF Coaxial Connector

Payment & Shipping Terms

Minimum Order Quantity

100

Price

DISCUSS

Packaging Details

Carton

Delivery Time

5-8works

Payment Terms

L/C, T/T, Western Union

Supply Ability

120000

SBMA Female RF Coaxial Connector – Right-Angle, Flange Mount, Compatible with 2# Semi-Flexible or Semi-Rigid Cable

Get Best Price

BMA Female RF Coaxial Connector – Flange Mount for 2# Semi-Rigid / Semi-Flexible Cable

Get Best Price

SBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Get Best Price

BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Get Best Price

86-029-8886-0801

Contact Now

Product Description

BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Product Overview

The BMA series is a blind-mate, slide-on RF coaxial connector known for its compact size and high reliability. It features a spring-loaded contact structure that ensures stable mechanical engagement and excellent electrical performance. This connector is ideal for modular system integration where quick, alignment-free mating is required.

Application Scope

Module-to-module connections in chassis and cabinets

Radar and microwave communication systems

Aerospace and defense equipment

Product Features

Straight male BMA connector

Threaded mount for secure installation

Compatible with 2# flexible cable RG316/U

Compact design with wide bandwidth capability

Quick and easy blind docking with reliable contact

Product Specifications

BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable 0

Important Technical Parameters

Electrical property			Temperature range	-55～+125℃
Characteristic impedance		50Ω	Frequency range	DC-18GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.15+0.012F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	/
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

Sealing ring

Silicon rubber

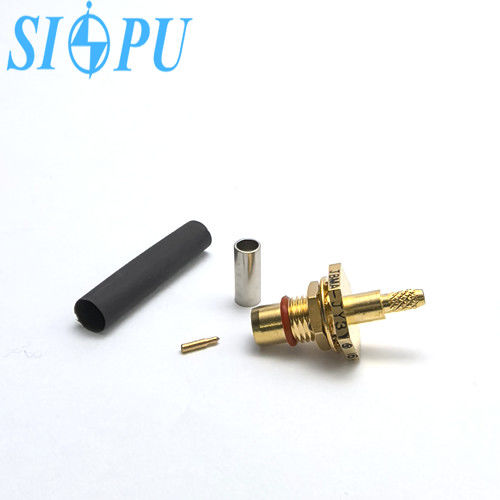

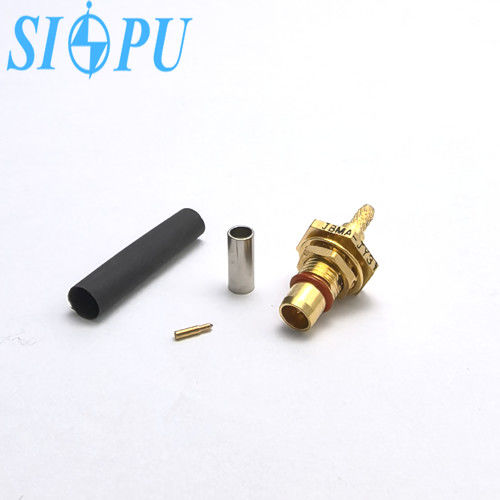

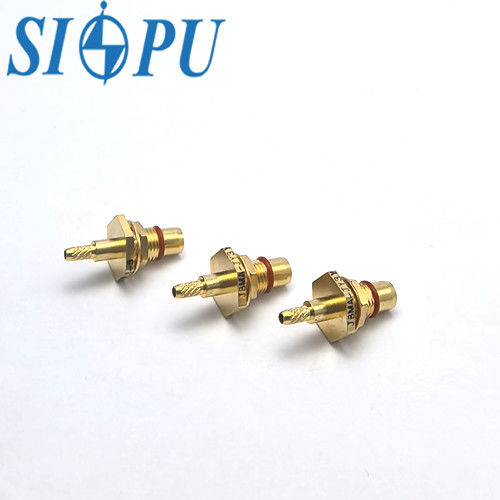

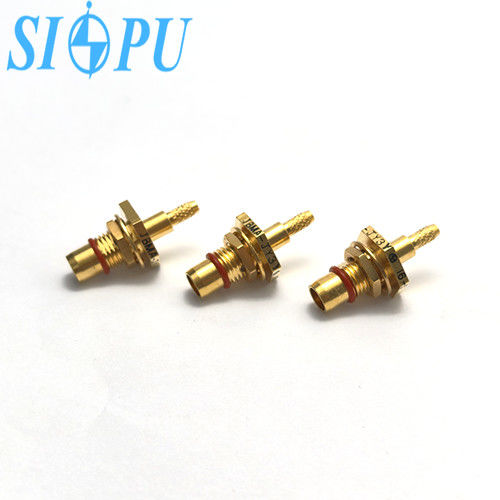

Product Image Gallery

BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable 1
