Name: TNC Female RF Connector Suitable for RG316/U Cable Brass Construction
Brand: Xi'an Sipu RF Technology Co., Ltd.
SKU: TNC-KF3A
Availability: InStock

Home > Products > TNC Connector >

TNC Female RF Connector Suitable for RG316/U Cable Brass Construction

Brass Construction TNC Female RF Connector

Brass Construction TNC Female Connector

RG316/U Cable TNC Female Connector

Place of Origin:

CHINA

Brand Name:

SIPU

Certification:

ISO9001, RoHS, CE

Model Number:

TNC-KF3A

Request A Quote

TNC Female RF Connector Suitable for RG316/U Cable Brass Construction

Product Details

Product Name:

TNC Female RF Coaxial Connector – Compatible With RG316/U Cable

Type:

Straight

Gender:

Female

Material:

Brass

Plating:

Nickle

Insulating Medium:

PTFE

Durability:

500 Times

Highlight:

Brass Construction TNC Female RF Connector

Brass Construction TNC Female Connector

RG316/U Cable TNC Female Connector

Payment & Shipping Terms

Minimum Order Quantity

Price

Discuss

Packaging Details

master carton

Delivery Time

6-8weeks

Payment Terms

L/C, T/T, Western Union

Supply Ability

120000pcs/year

Openresty Server Threaded Neill-Concelman Connector The Essential Component for Server Applications

Get Best Price

Video

TNC Male RF Coaxial Connector – Straight Type, for RG142/U Cable

Get Best Price

TNC Female RF Connector Suitable for RG316/U Cable Brass Construction

Get Best Price

TNC Flange-Mount RF Coaxial Connector – Compatible with RG178/U Cable

Get Best Price

86-029-8886-0801

Contact Now

Product Description

TNC Female RF Coaxial Connector – Compatible with RG316/U Cable

Product Overview

The TNC series is a threaded, medium-power RF coaxial connector designed for high-reliability performance in demanding environments. Built in accordance with GJB681A, MIL-C-39012, and IEC60169-17 standards, this connector is ideal for mobile communication equipment exposed to shock and vibration.

Product Features:

Threaded locking design ensures secure connections under dynamic conditions

Flange-mount with 4-hole symmetry simplifies panel installation and enhances mechanical stability

Mates with RG316/U cable – compact, flexible, and suited for tight space integration

High durability & electrical performance – consistent signal integrity in RF applications

Resistant to environmental stress – ideal for outdoor and mobile use

Application Areas:
Mobile & wireless communication systems
Antenna and signal transmission modules
Dynamic RF environments with vibration
Outdoor instrumentation and test setups
Small and medium power RF applications

Product Specifications

TNC Female RF Connector Suitable for RG316/U Cable Brass Construction 0

Important Technical Parameters

Electrical property			Temperature range	-55～+165℃
Characteristic impedance		50Ω	Frequency range	DC-11GHz
Dielectric withstanding voltage		1500V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤2.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤0.2mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, nickel plating

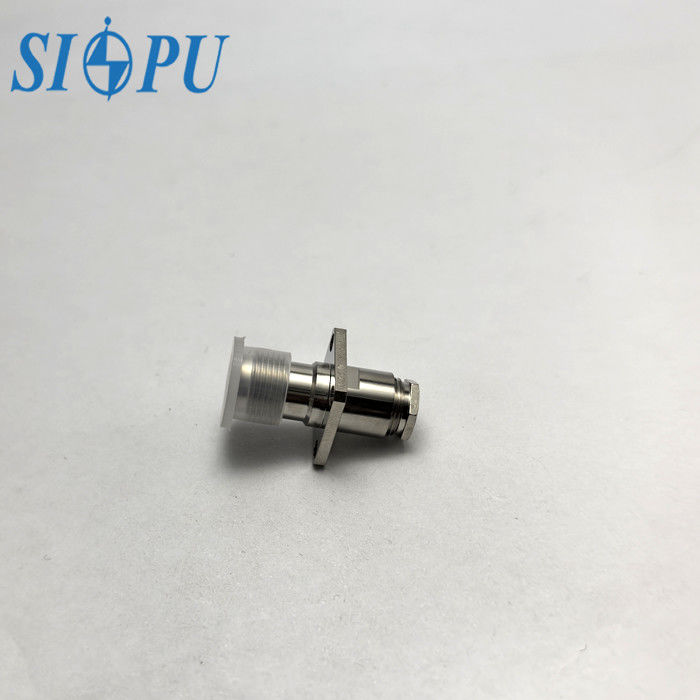

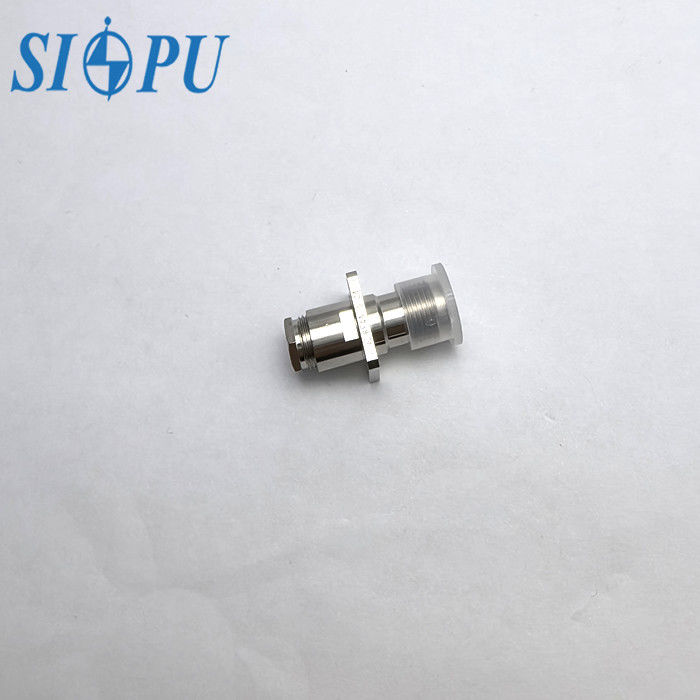

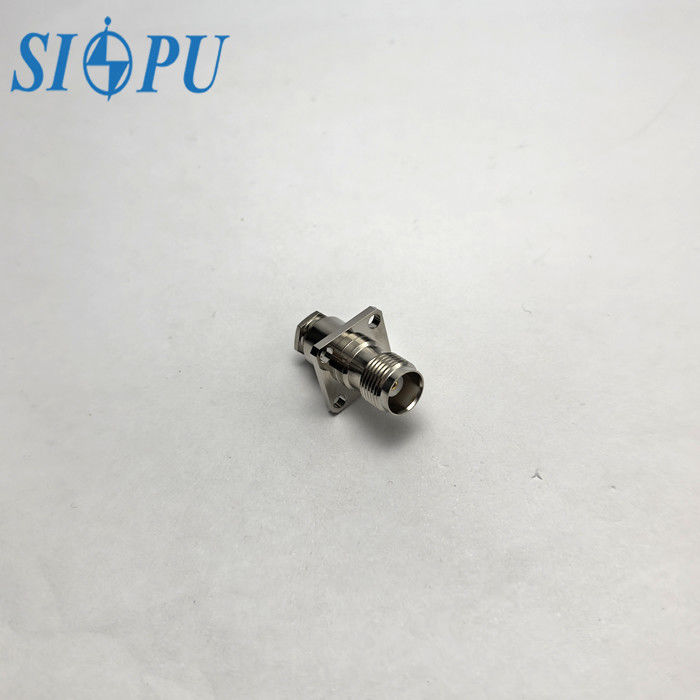

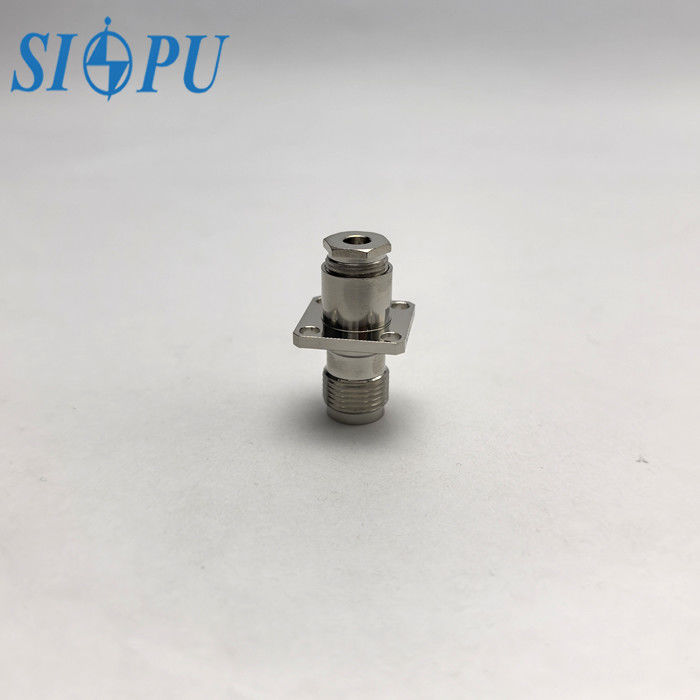

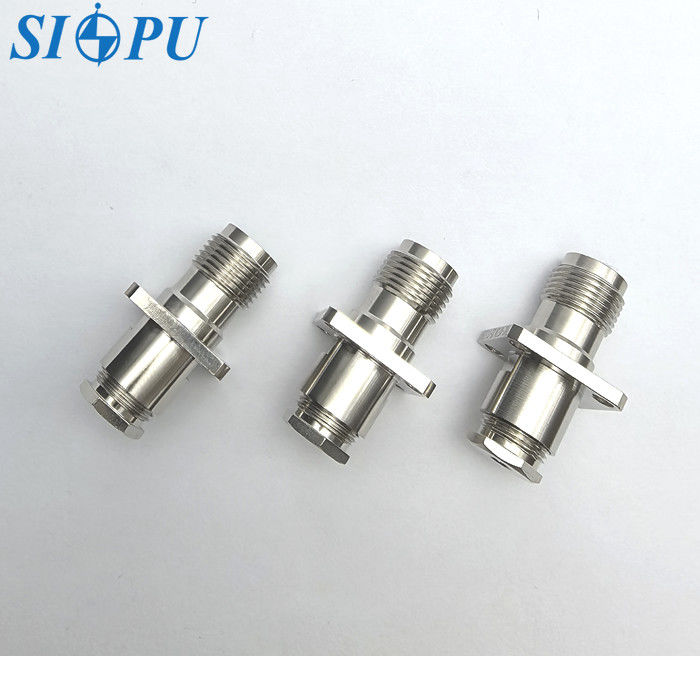

Product Image Gallery
