Place of Origin:
CHINA
Brand Name:
SIPU
Certification:
ISO9001 RoHS CE
Model Number:
SBMA-KFB2G-T1
Product Overview
The SBMA connector is a new type of blind-mate, low-power RF coaxial connector. As a miniaturized version of the BMA series, it supports the modularization of entire systems by providing compact, reliable connections.
Application Scope:
Designed for blind mating between chassis and cabinet modules, making it ideal for space-constrained and modular RF environments.
Product Features:
Two-hole flange mount with a floating flange structure. Compatible with 2# semi-flexible or semi-rigid cables. Offers wide bandwidth, compact size, and a floating connection mechanism that enhances alignment and mechanical stability.
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-55～+125℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-18GHz | |
|
Dielectric withstanding voltage
|
675V |
VSWR |
≤1.06+0.015F(GHz) | |
|
Insulation resistance
|
≥5000MΩ |
Insertion loss |
≤0.08√F(GHz)dB | |
|
Contact resistance
|
Center conductor |
≤8.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤3.0mΩ |
Durability |
500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold |
Insulating medium |
PTFE |
|
Outer conductor
|
Brass, gold plating |
Sealing ring |
/ |

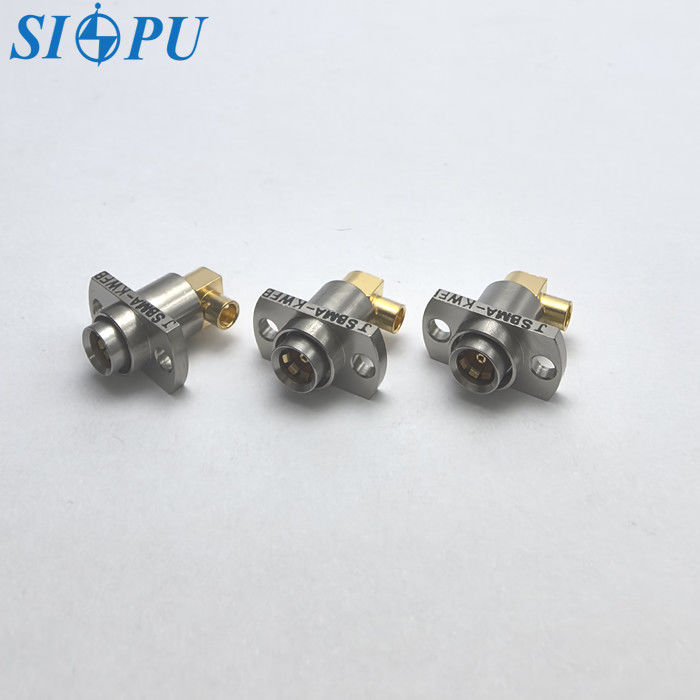

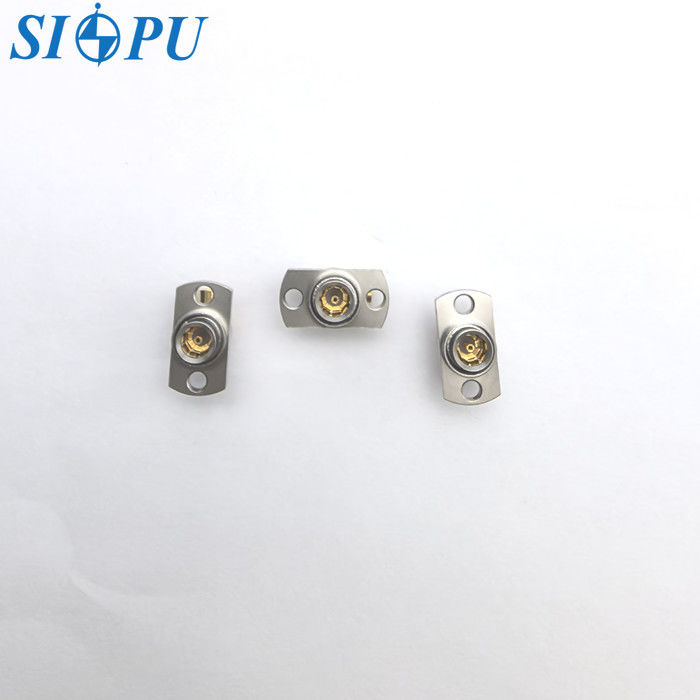

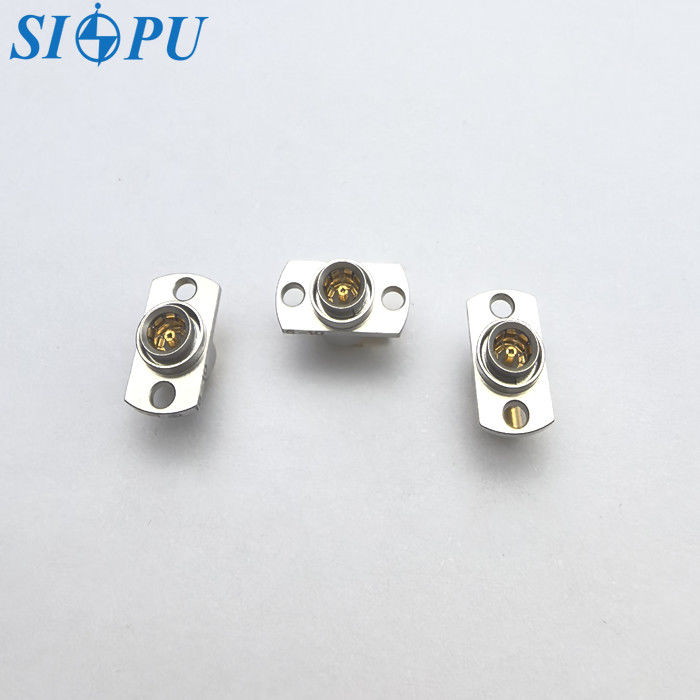

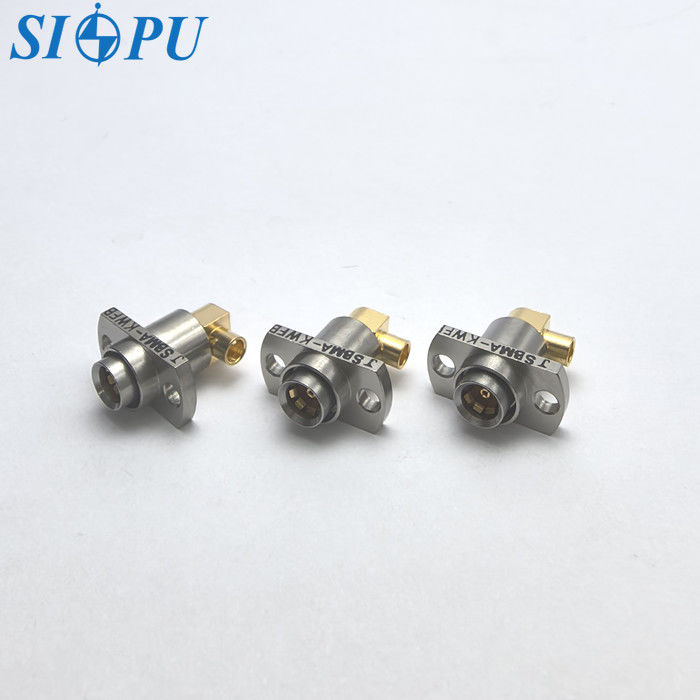

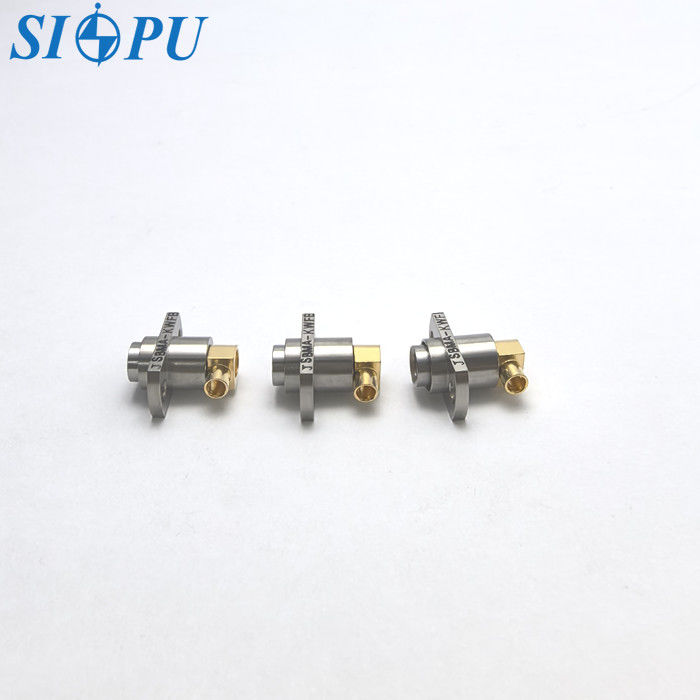

Prodcut Image Gallery
